Shift Lever Assembly: Components: Illustration

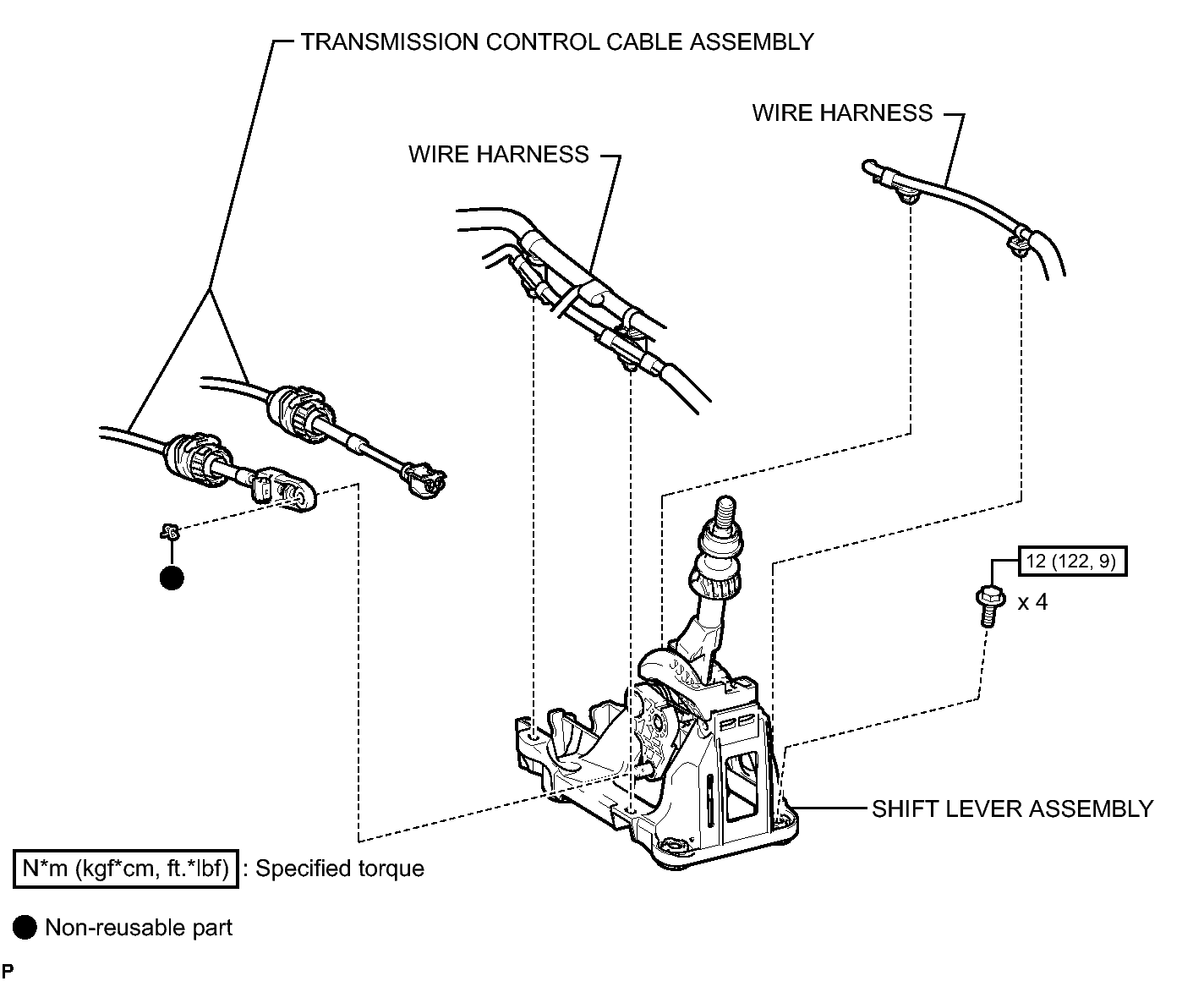

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specifications

GTY312537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
