Back-Up Light Switch: Components: Illustration

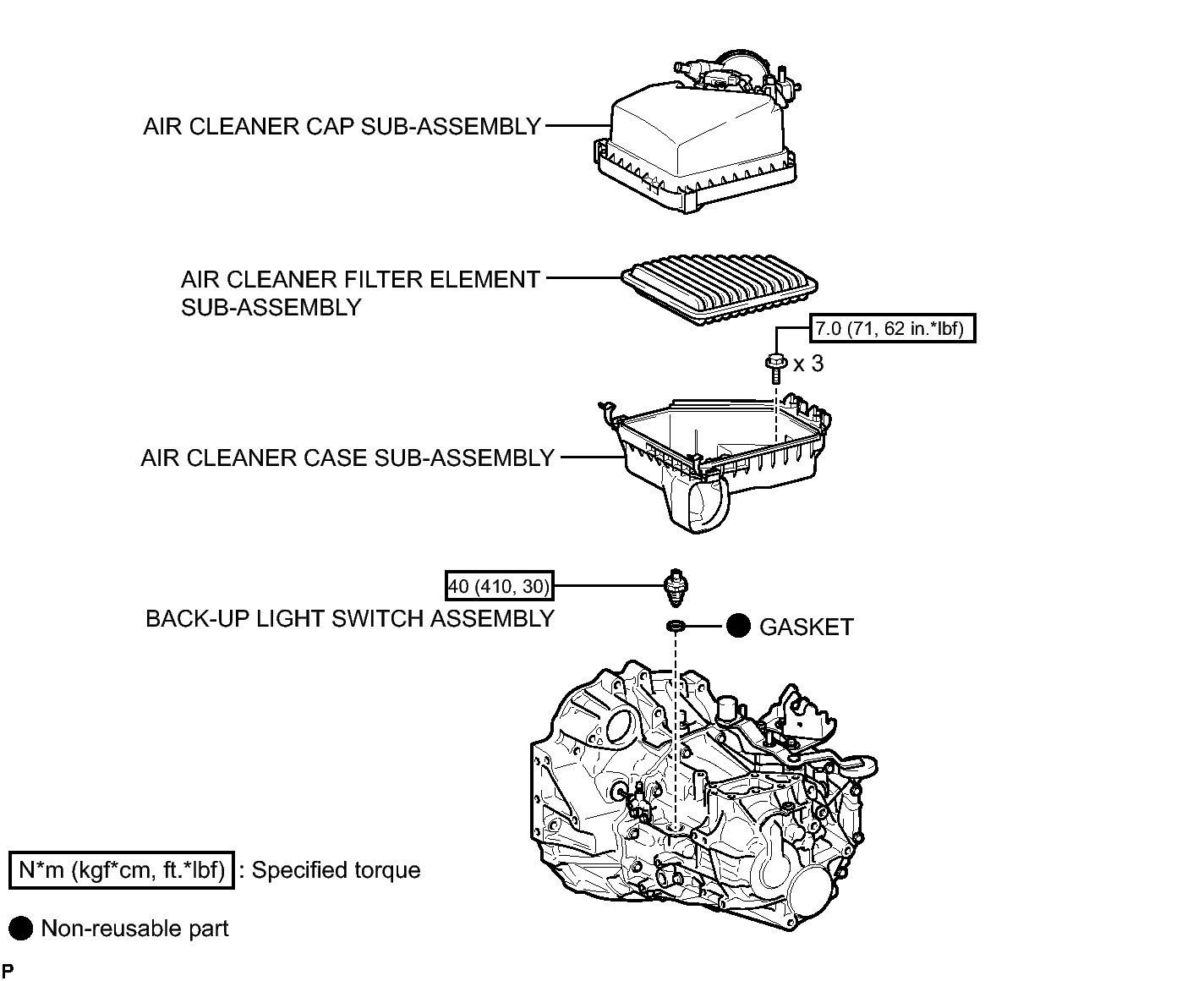

Fig 1: Identifying Back-Up Light Switch Replacement Components With Torque Specifications

GTY310809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
