Cylinder Block: Components: Illustration

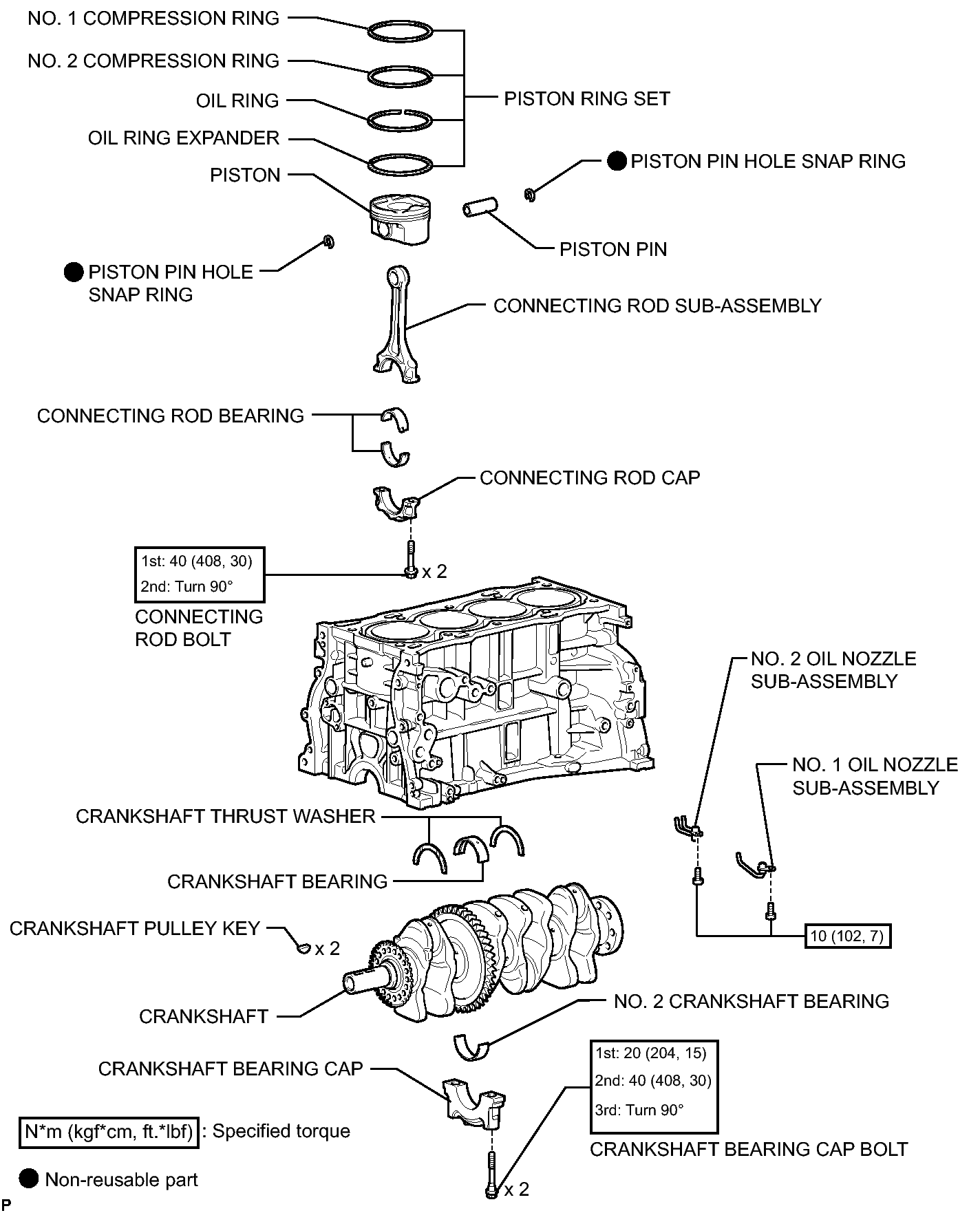

Fig 1: Identifying Cylinder Block Replacement Components With Torque Specifications

GTY215103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
