Differential Case: Components: Illustration

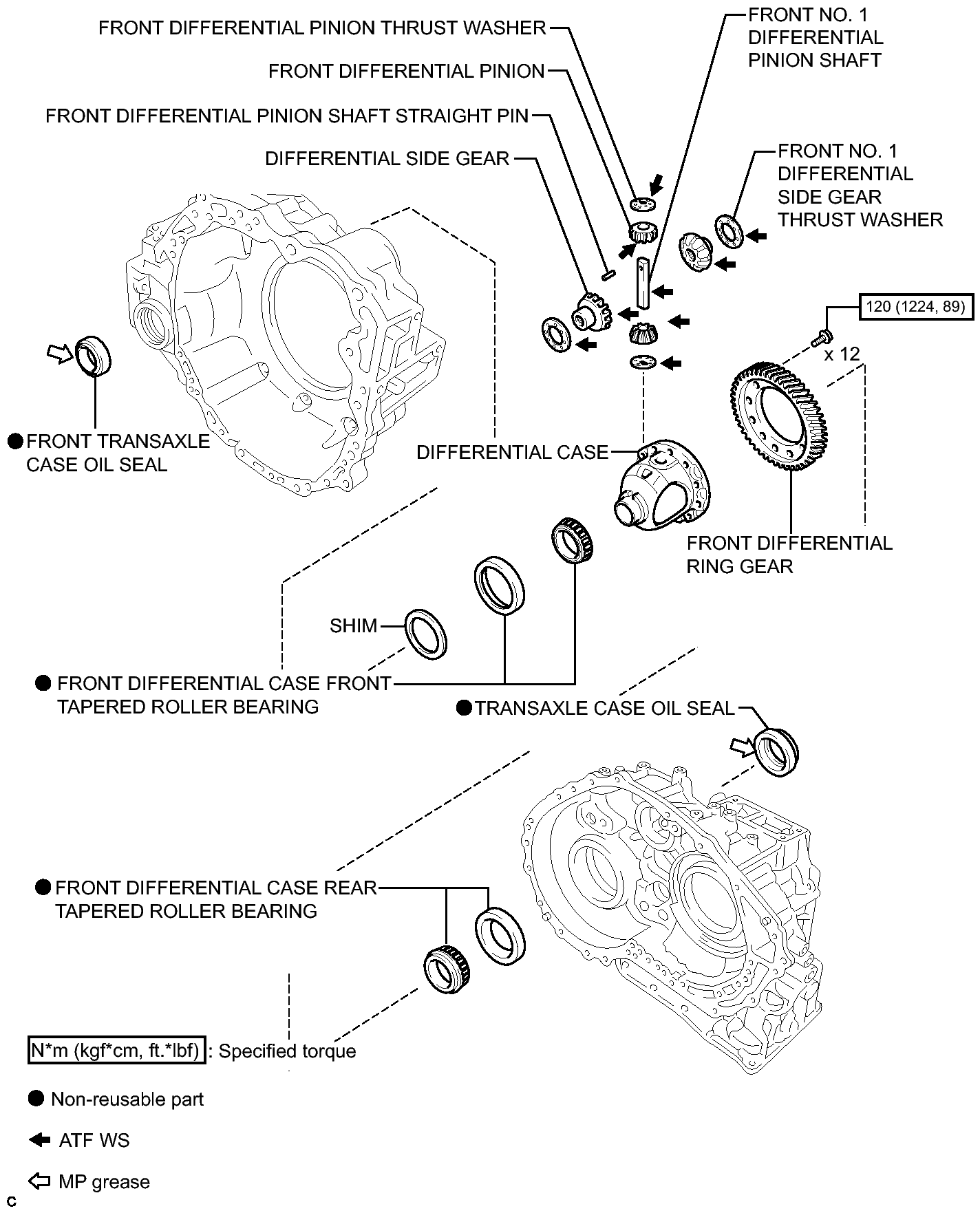

Fig 1: Differential Case Replacement Components With Torque Specifications

GTY314453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
