Fuel Pressure Pulsation Damper: Components: Illustration

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components (1 of 2)
GTY313904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

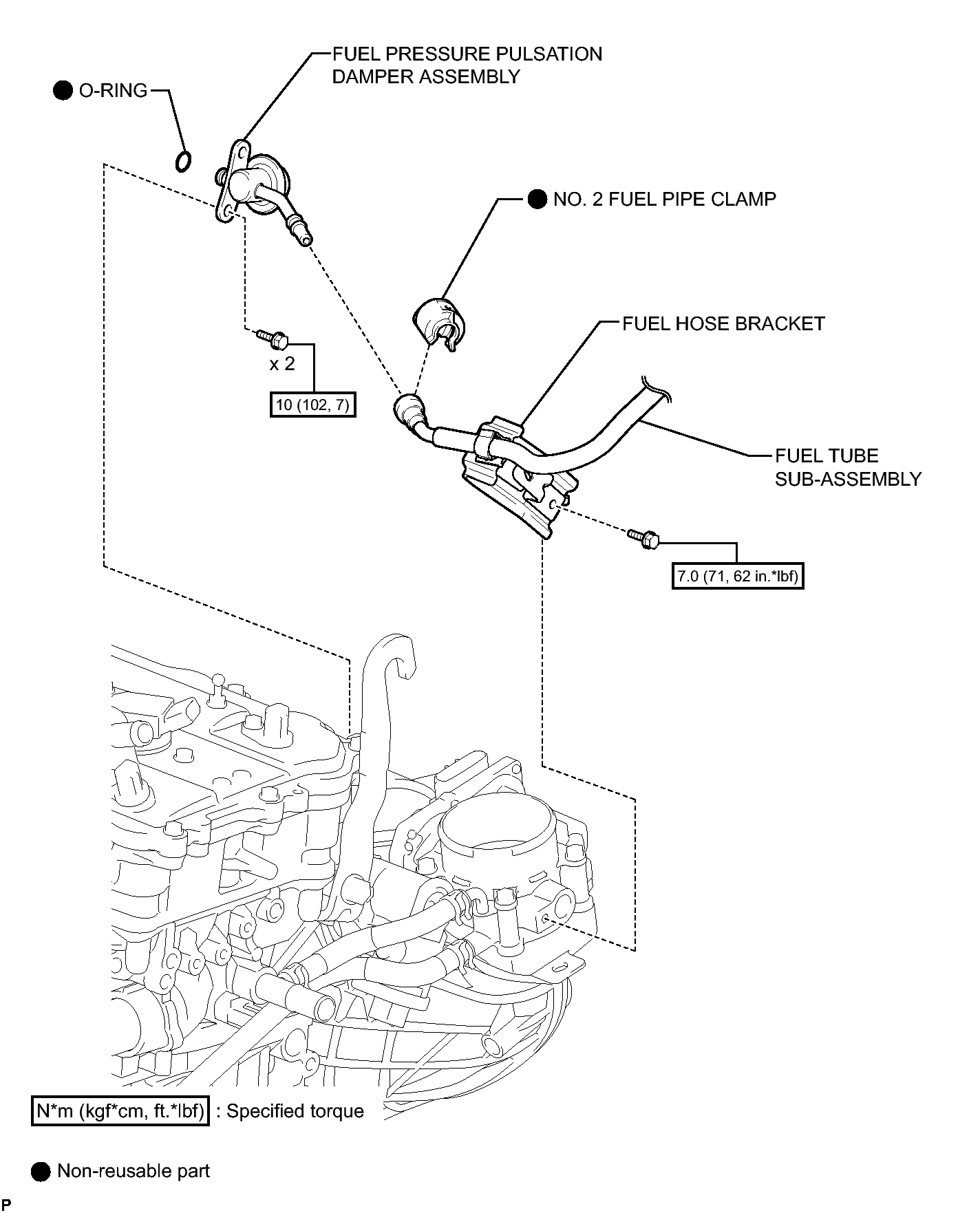

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 of 2)
GTY310143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
