Starting System (Service Information): Starter: Components: Illustration

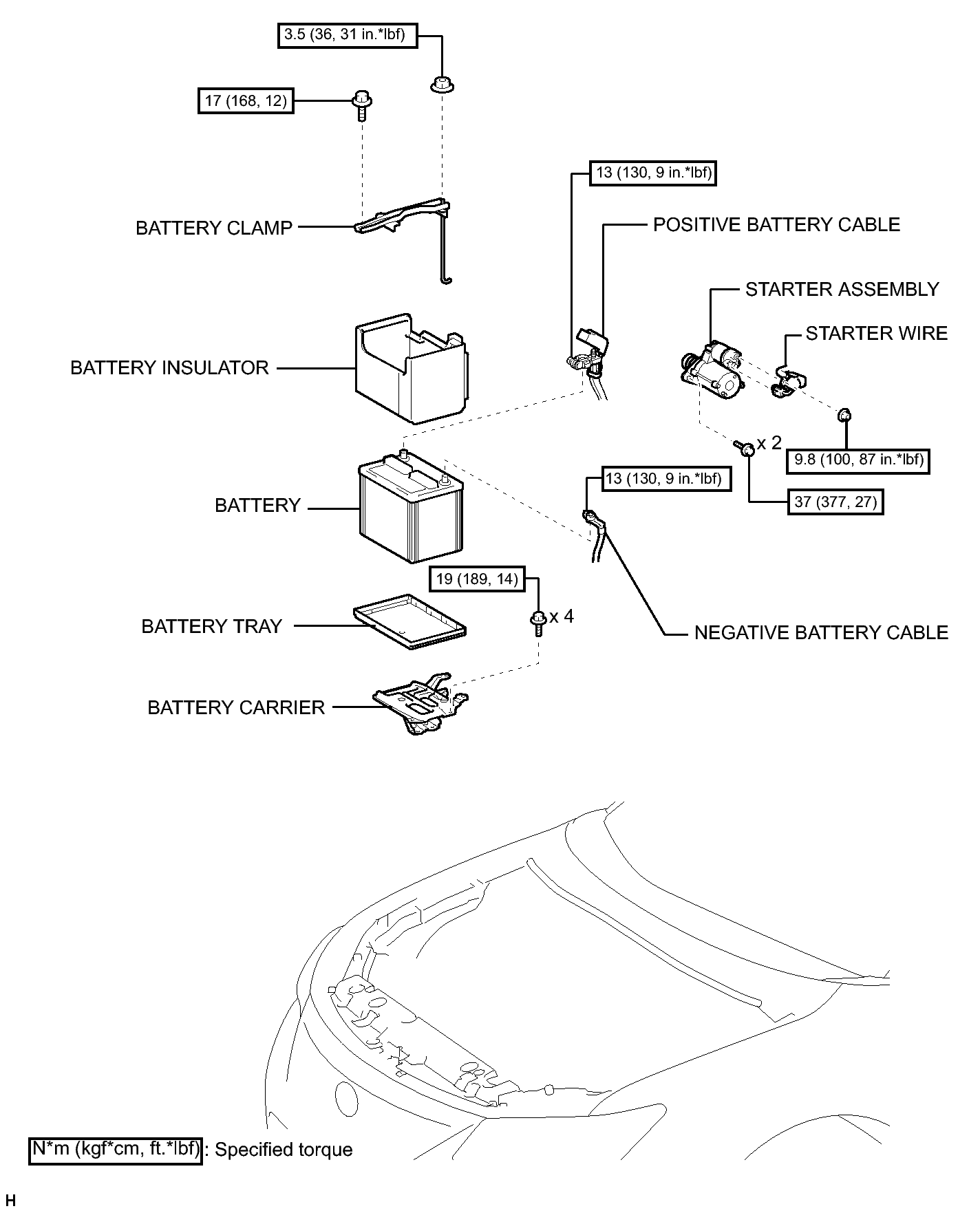

Fig 1: Identifying Starting System Replacement Components With Torque Specifications
GTY311444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

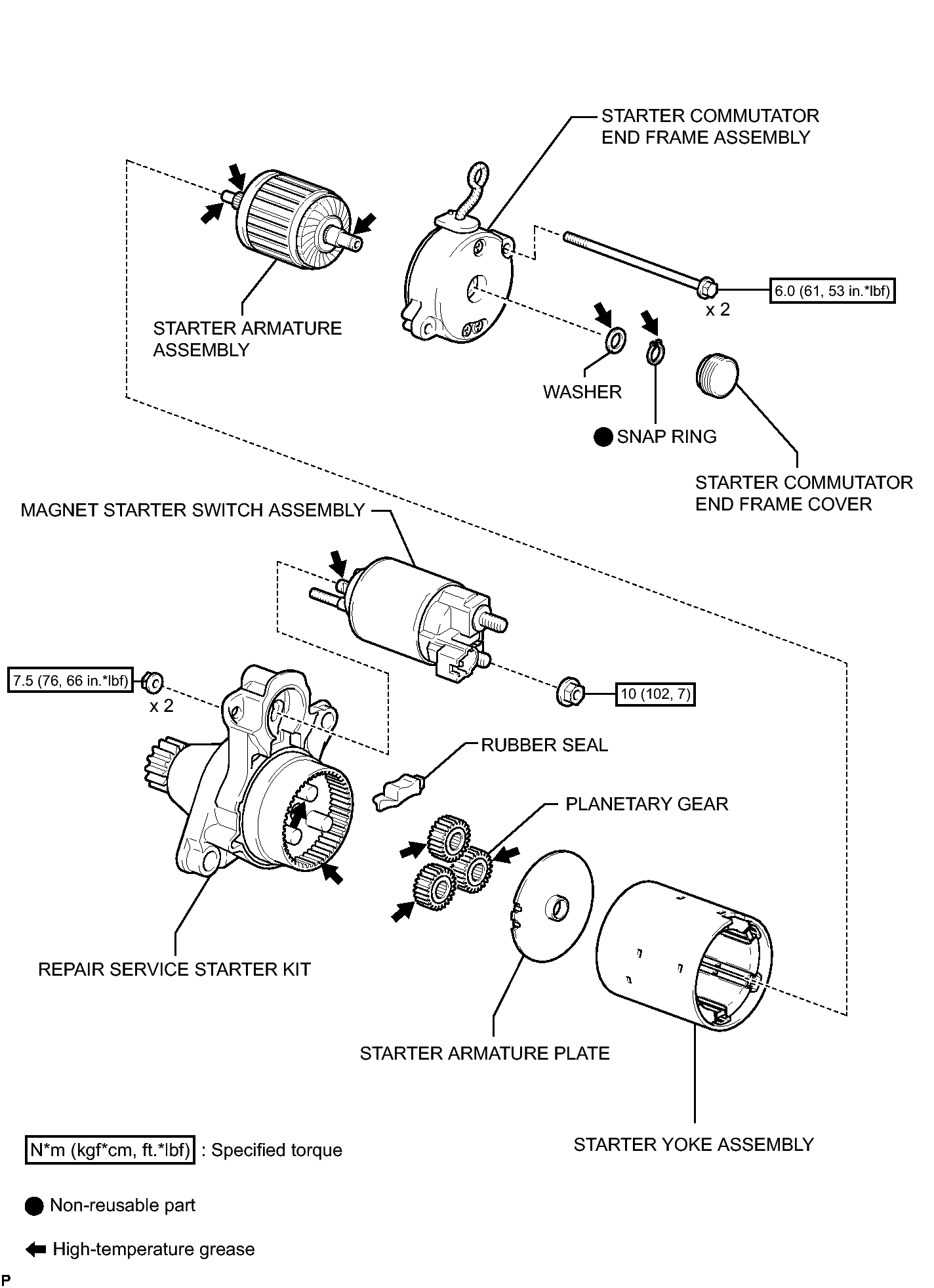

Fig 1: Identifying Starting System Replacement Components With Torque Specifications
GTY310262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
