Turn Signal and Hazard Warning Light: Notes

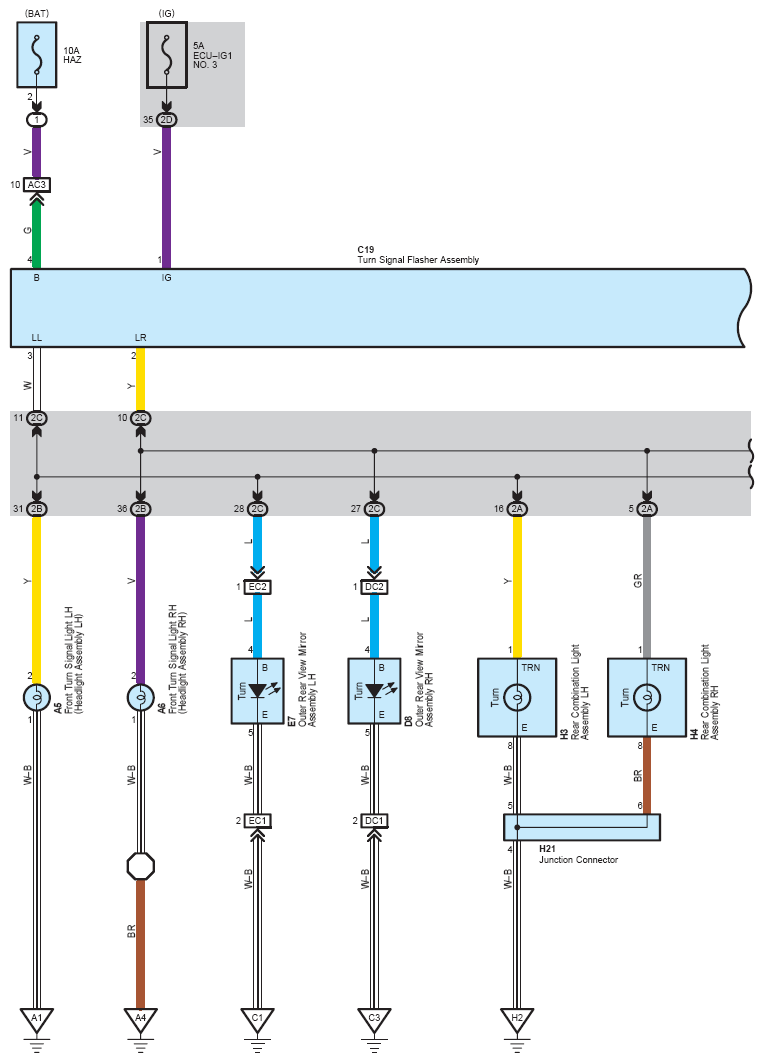

Fig 1: Turn Signal Flasher Assembly System Wiring Diagram (1 Of 2)
G08760244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

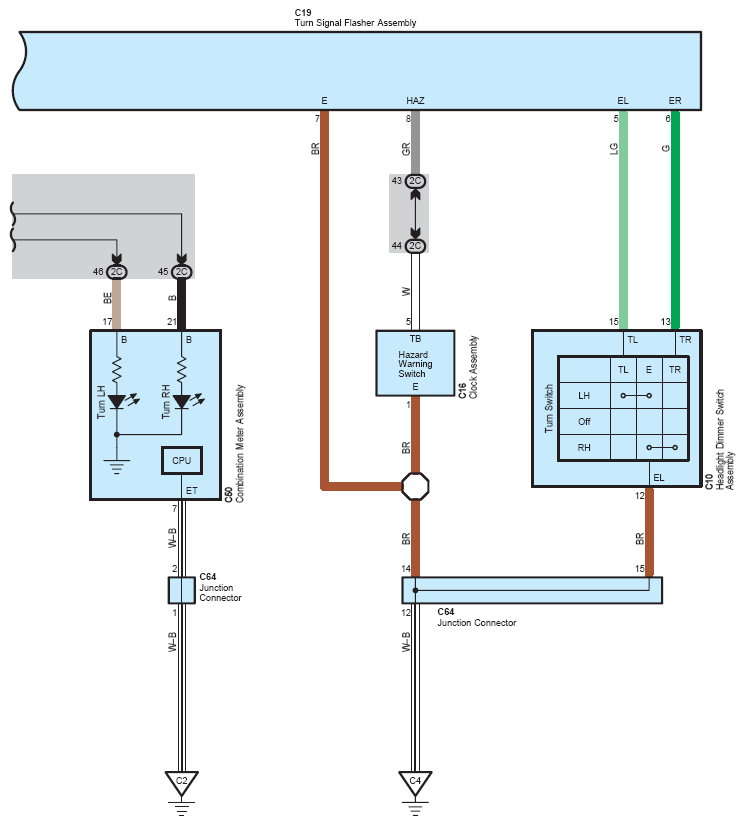

Fig 2: Turn Signal Flasher Assembly System Wiring Diagram (2 Of 2)
G08760245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
