Parts Location: Illustration

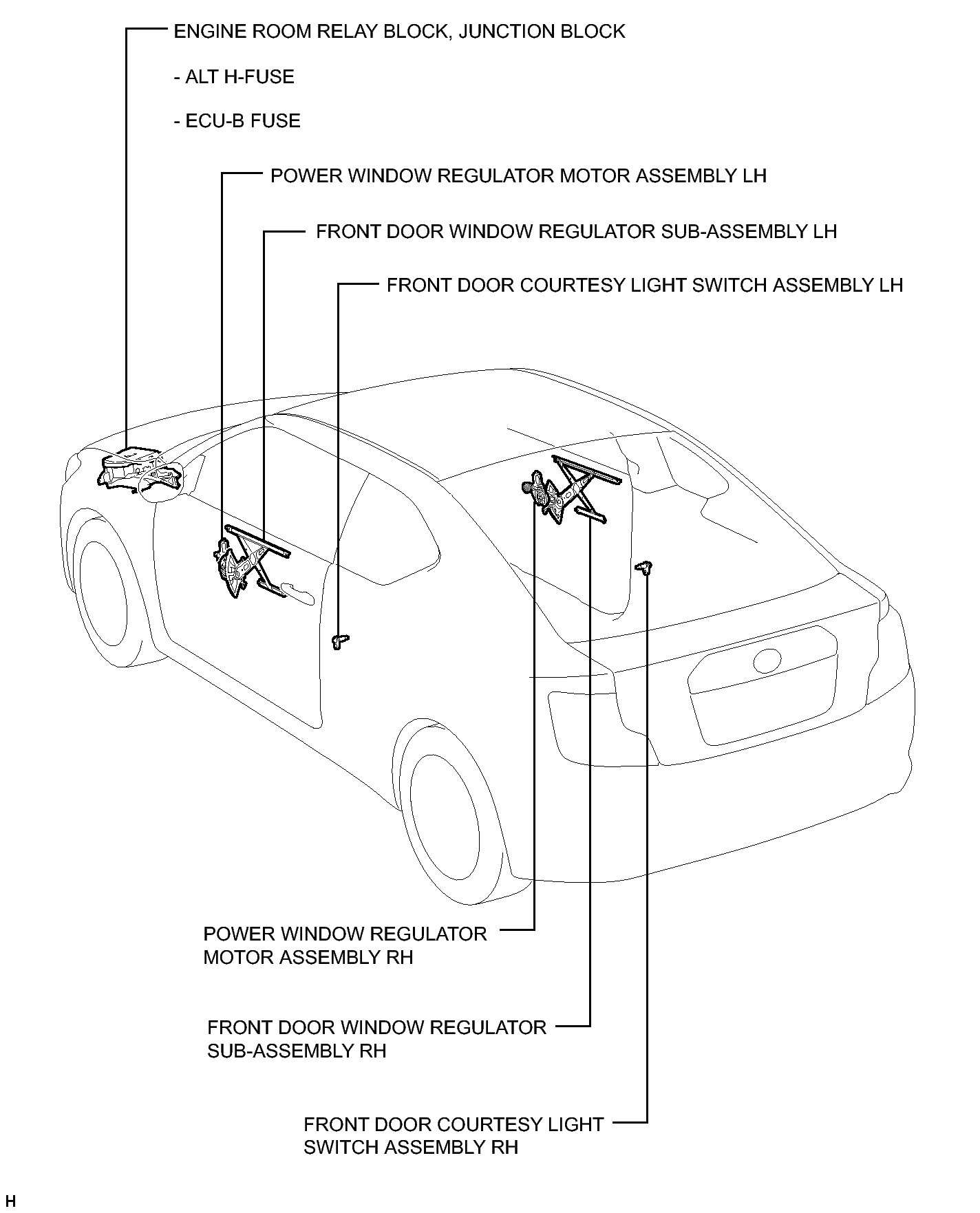

Fig 1: Power Window System Components Location (1 Of 2)
GTY310268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

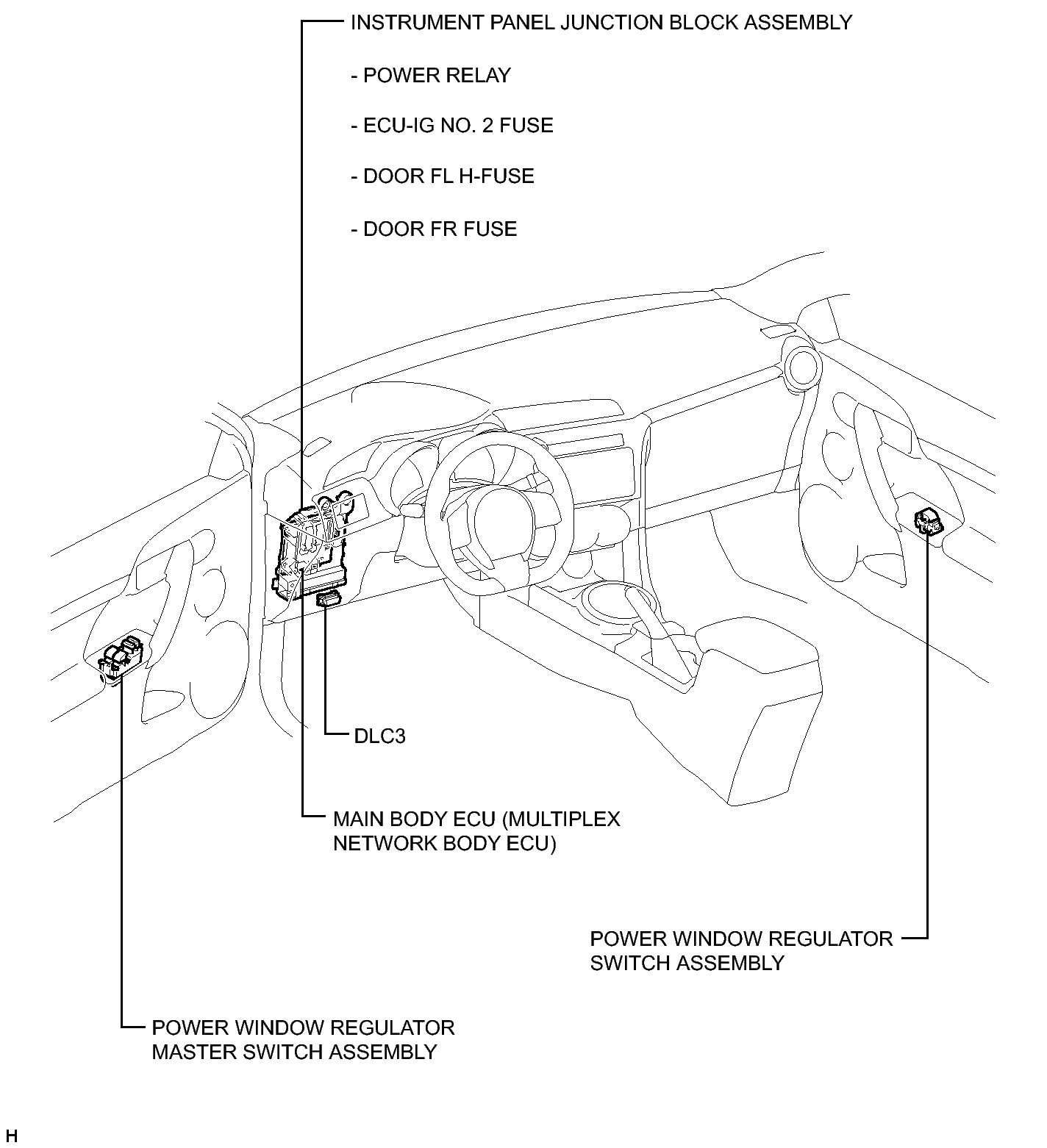

Fig 1: Power Window System Components Location (2 Of 2)
GTY313685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
