System Diagram

The configuration of the electronic control system for the U760E automatic transaxle is as shown in the following chart.

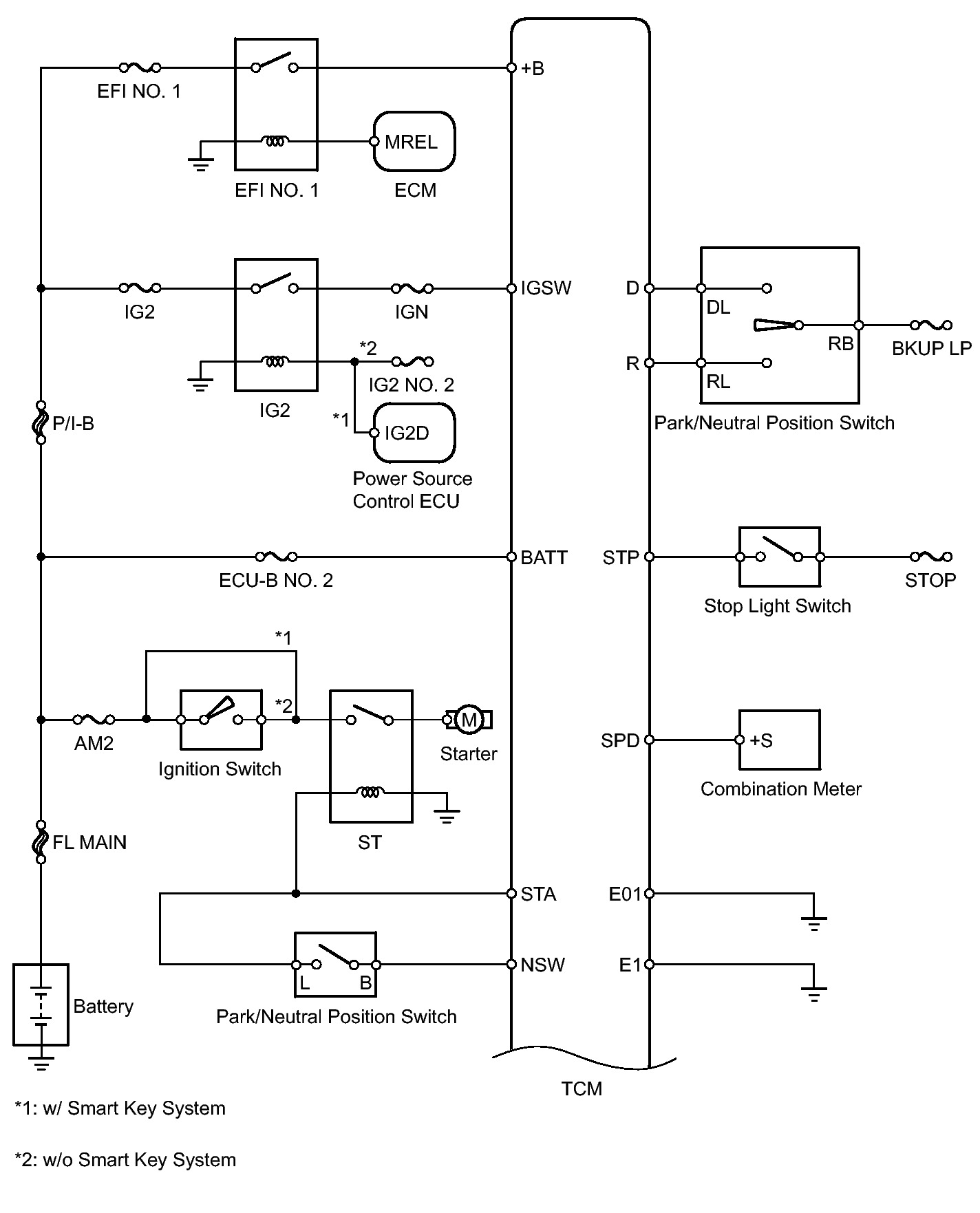

Fig 1: Automatic Transaxle System Circuit Diagram (1 Of 2)
GTY345338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

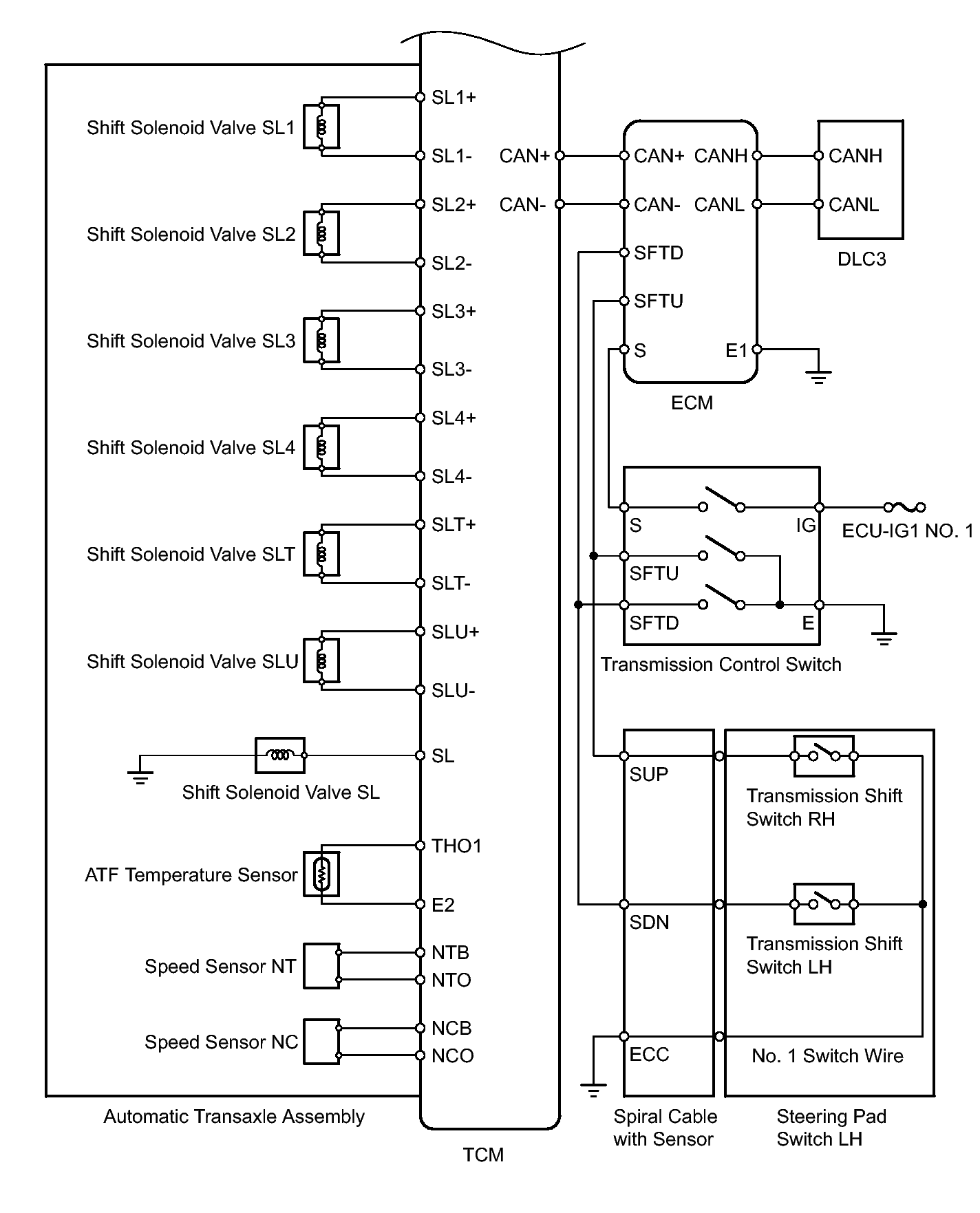

Fig 2: Automatic Transaxle System Circuit Diagram (2 Of 2)
GTY312517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
