Unable to Unlock Steering Wheel (Engine cannot Start): Wiring Diagram

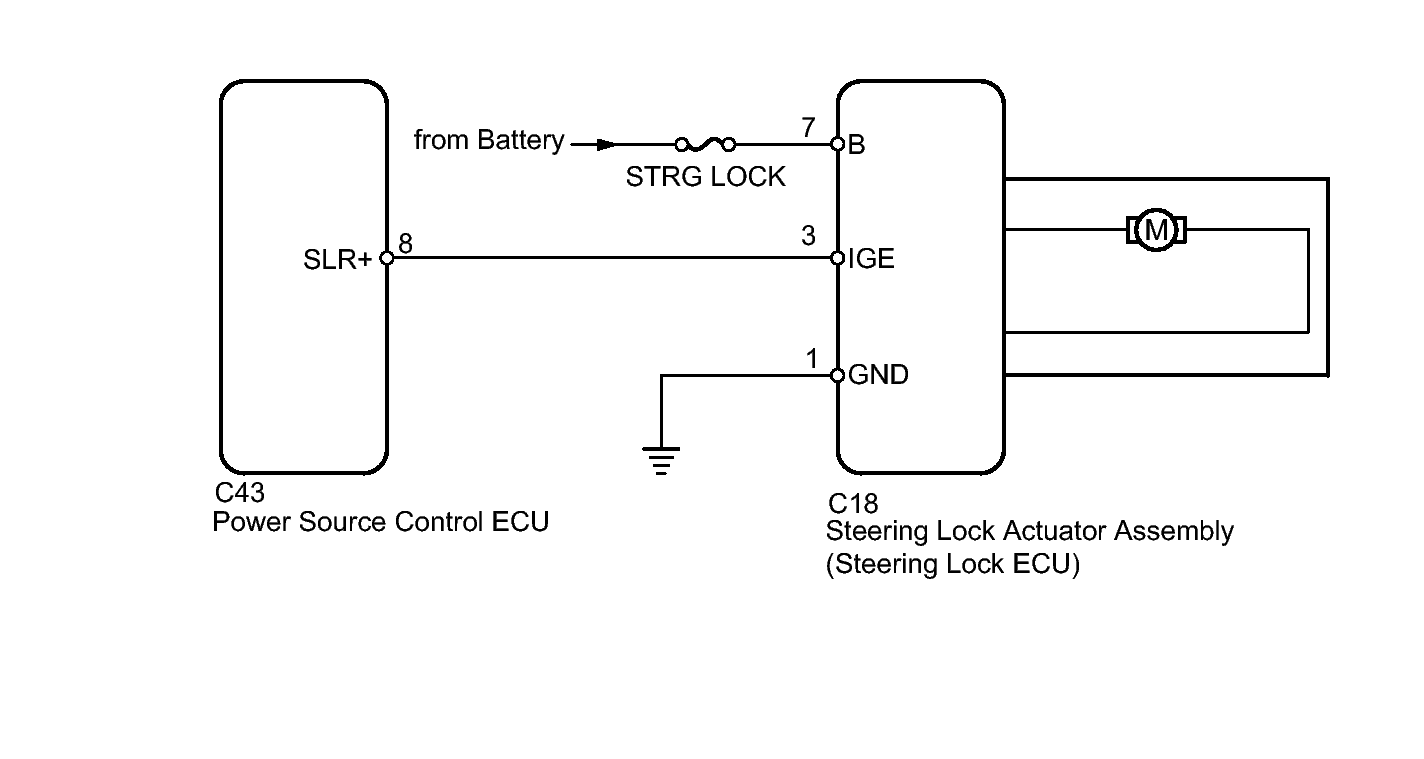

Fig 1: Steering Lock Actuator Assembly - Circuit Diagram

GTY310550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
