DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

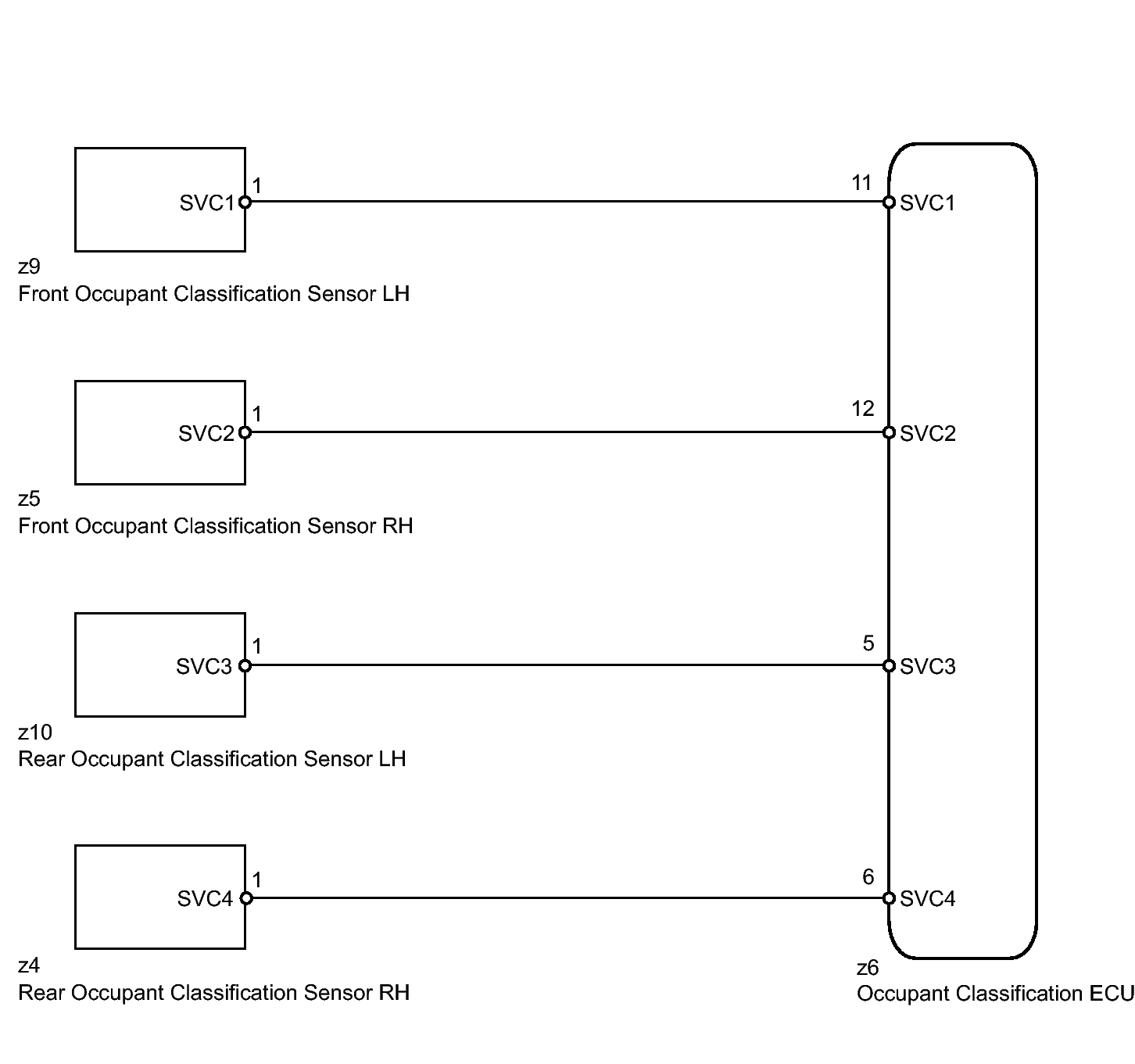

Fig 1: Occupant Classification System - Wiring Diagram

GTY310606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
