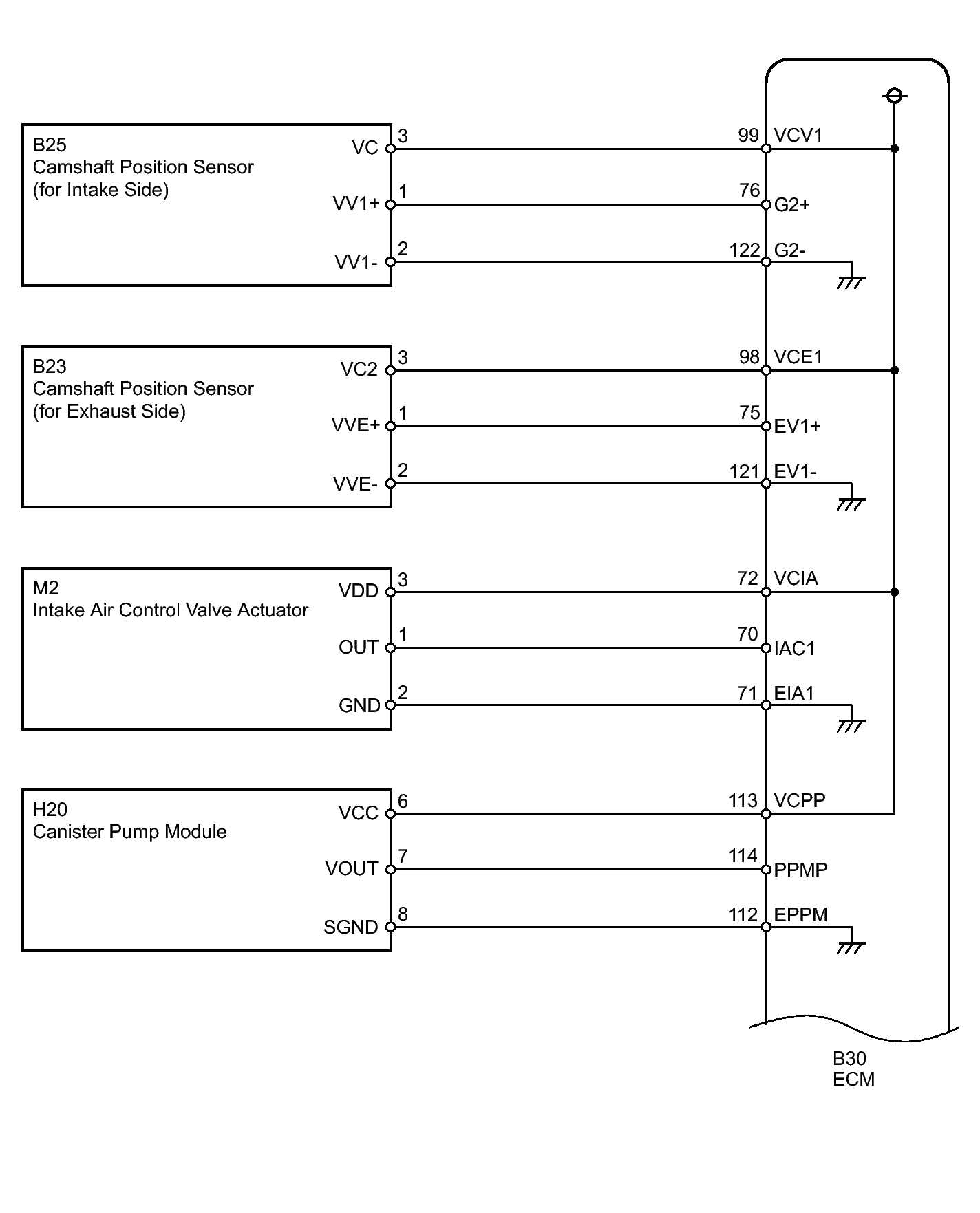

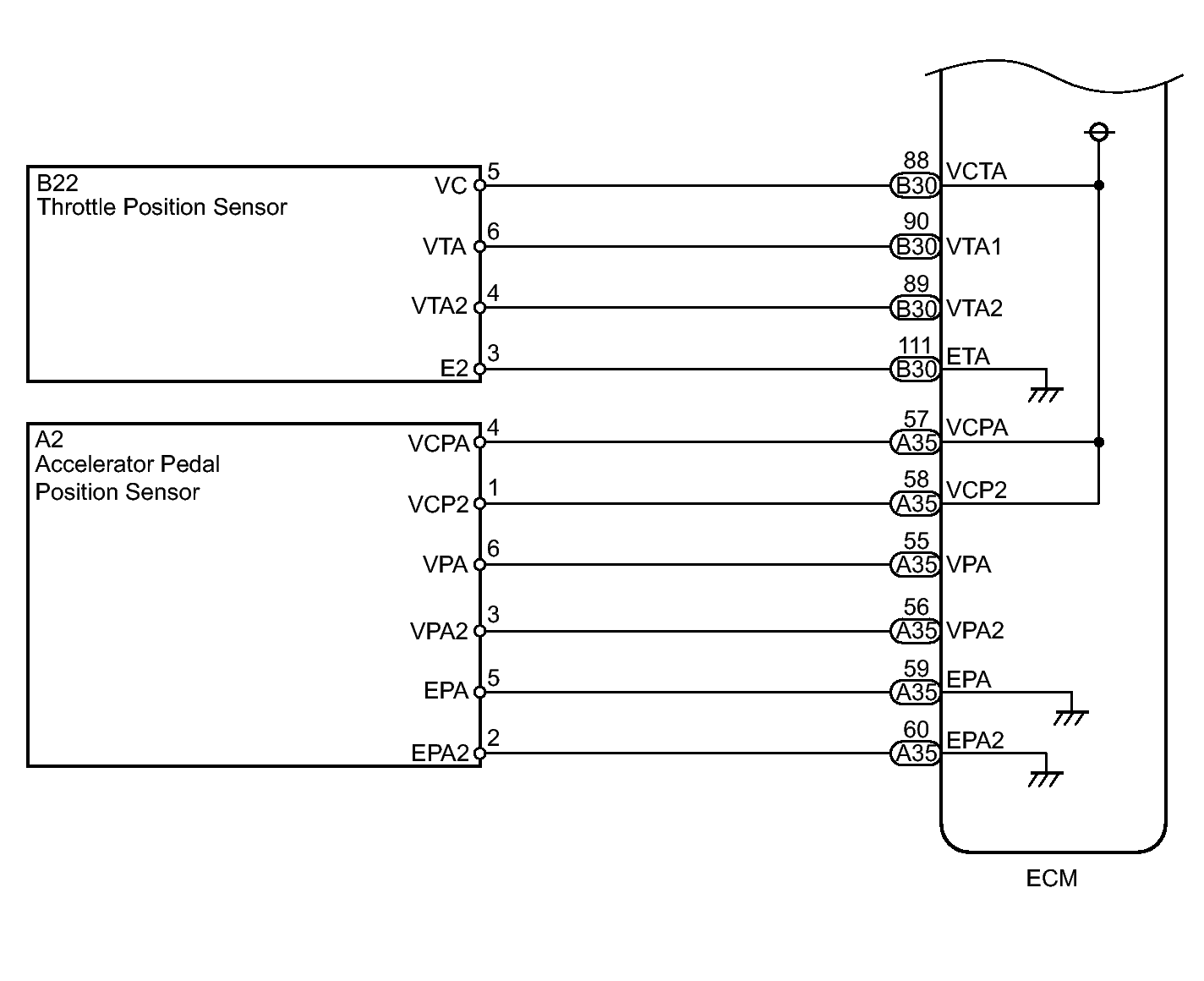

Home >> Scion >> 2012 >> tC Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (Diagnostic Codes (P0505-U0101) & Circuit Tests)) >> SFI System >> Circuit Tests >> VC Output Circuit >> Wiring Diagram
