Fuel Pump: Removal: Removal

Refer to PRECAUTION

1. Widen the tip of the tube joint clip and pull out the clip in the direction indicated by the arrow.

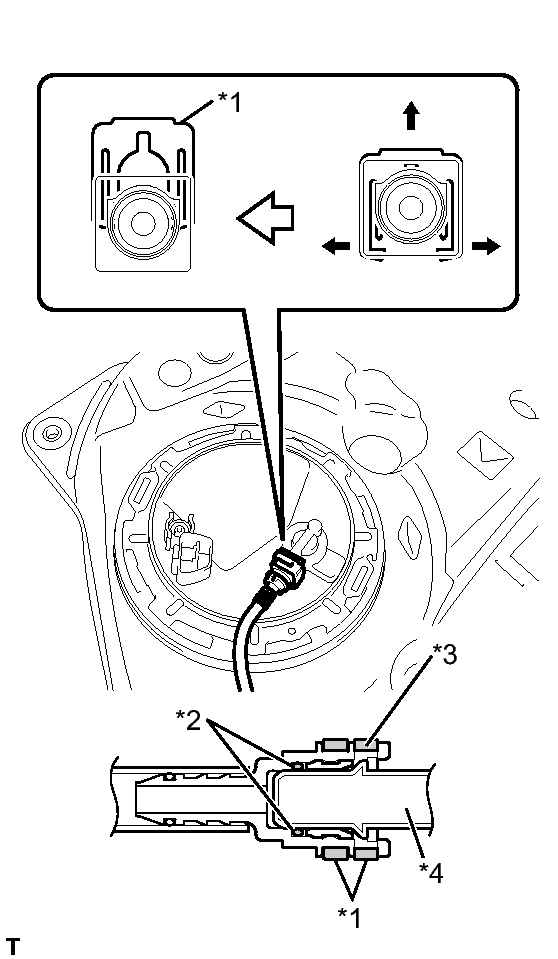

   Fig 1: Identifying Fuel Tank Main Tube Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Tube Joint Clip
   *2	Fuel Tube Connector
   *3	O-Ring
   	Pull Out
   	Pull

2. Pull the fuel tank main tube out of the fuel suction tube assembly to disconnect it.
   NOTE:

   • Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
   • The fuel tube connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
   • Do not use any tools.
   • Do not bend or twist the tubes.
   • Protect the contact surface by covering it with a plastic bag.
   • If the connector is stuck, push and pull on the parts to separate them.

1. Disconnect the fuel tank wire connector from the fuel suction tube assembly.
   Fig 2: Identifying Fuel Tank Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Release the retainer as shown in the illustration and disconnect the No. 1 fuel evaporation tube from the fuel suction tube assembly.
   Fig 3: Identifying No. 1 Fuel Evaporation Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Retainer
   *2	O-Ring
   *3	Fuel Tube Connector
   *4	Fuel Pipe
   	Pull

   NOTE:

   • Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
   • The fuel tube connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
   • Do not use any tools.
   • Do not bend or twist the tubes.
   • Protect the contact surface by covering it with a plastic bag.
   • If the connector is stuck, push and pull on the parts to separate them.
