Steering Column Assembly: Components: Illustration

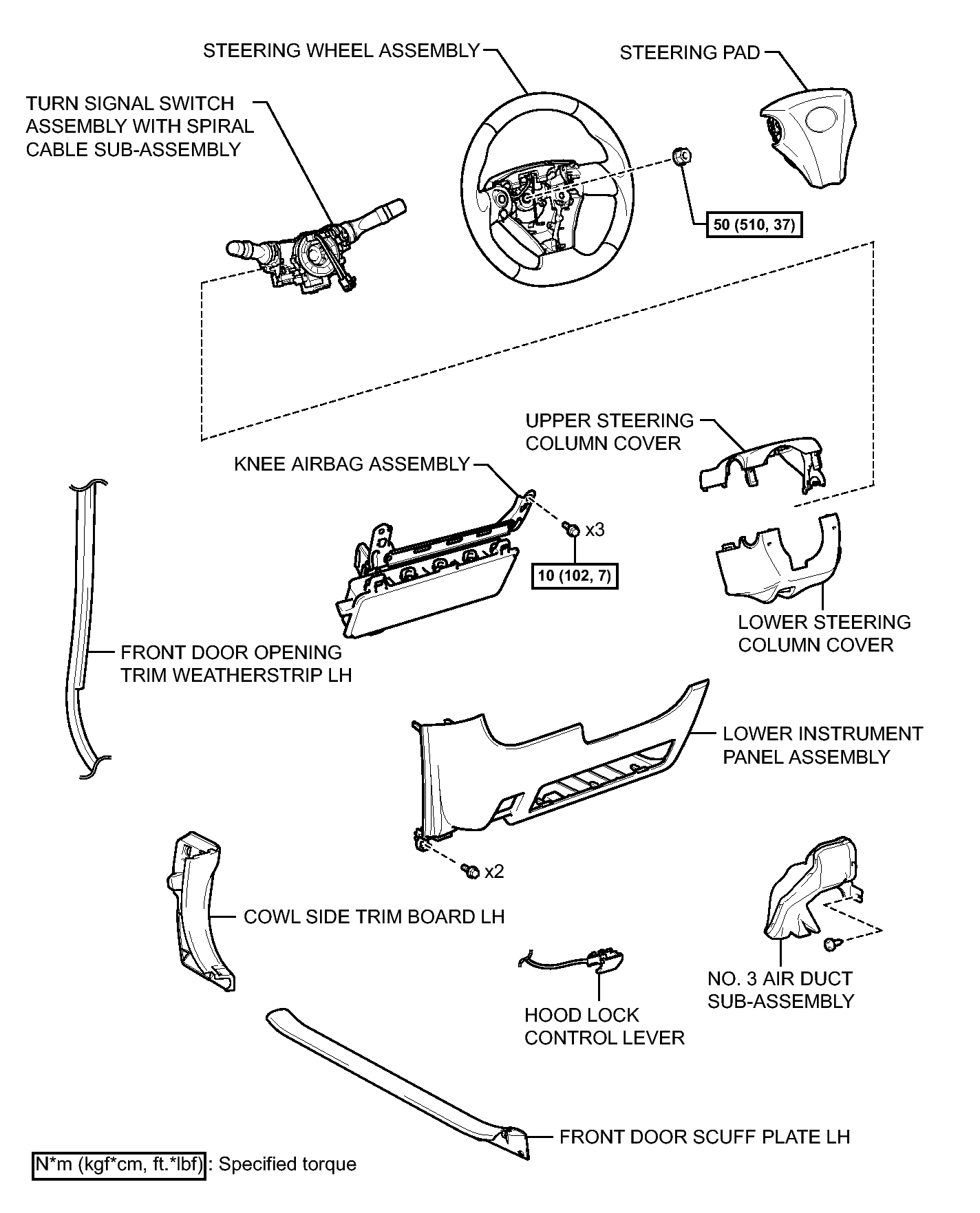

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

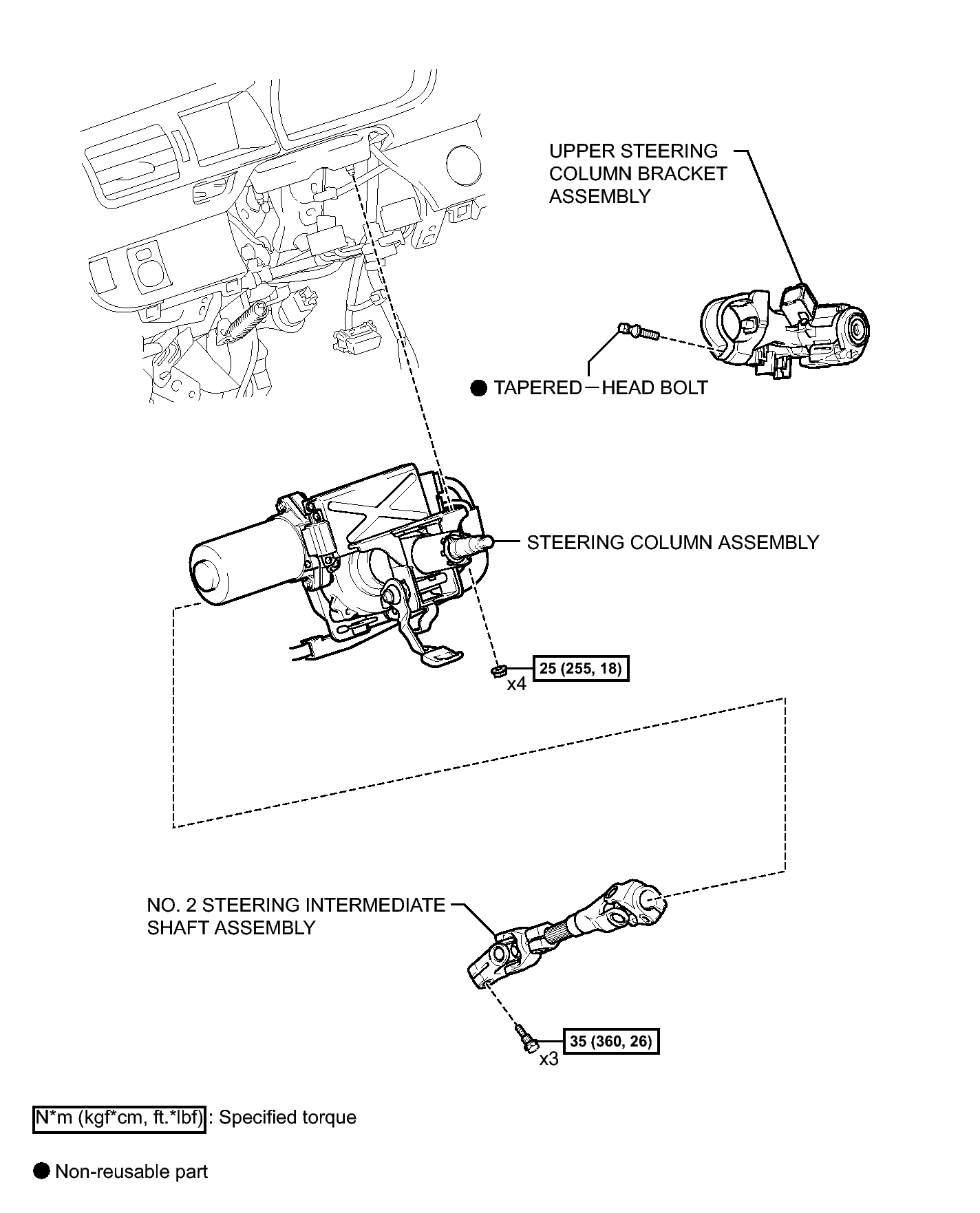

Fig 2: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

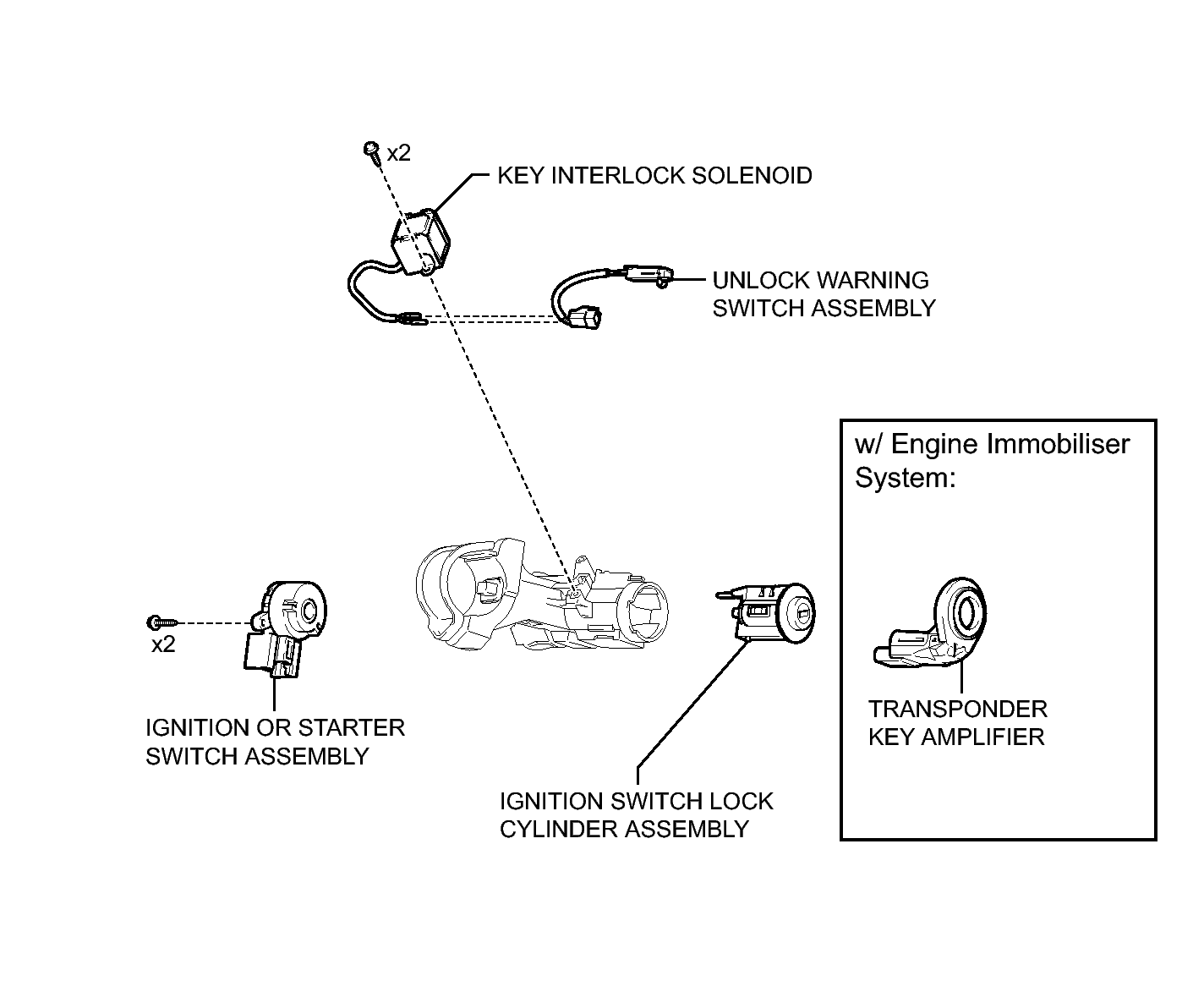

Fig 3: Identifying Steering Column Assembly Replacement Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
