DTC B1794: Open in Occupant Classification ECU Battery Positive Line: Wiring Diagram

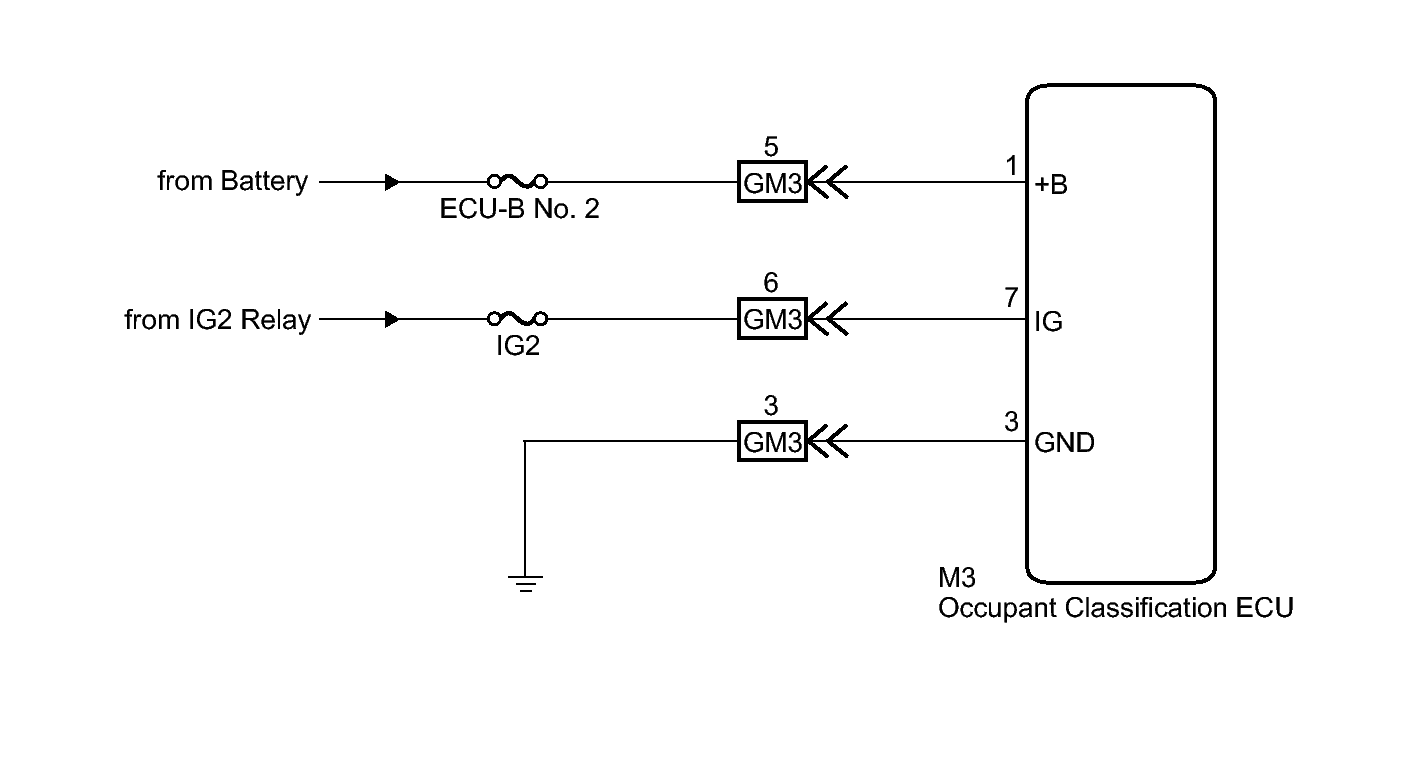

Fig 1: Occupant Classification ECU Battery Positive Line - Wiring Diagram
GTY346407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
