DTC B1788: Rear Occupant Classification Sensor RH Collision Detection: Wiring Diagram

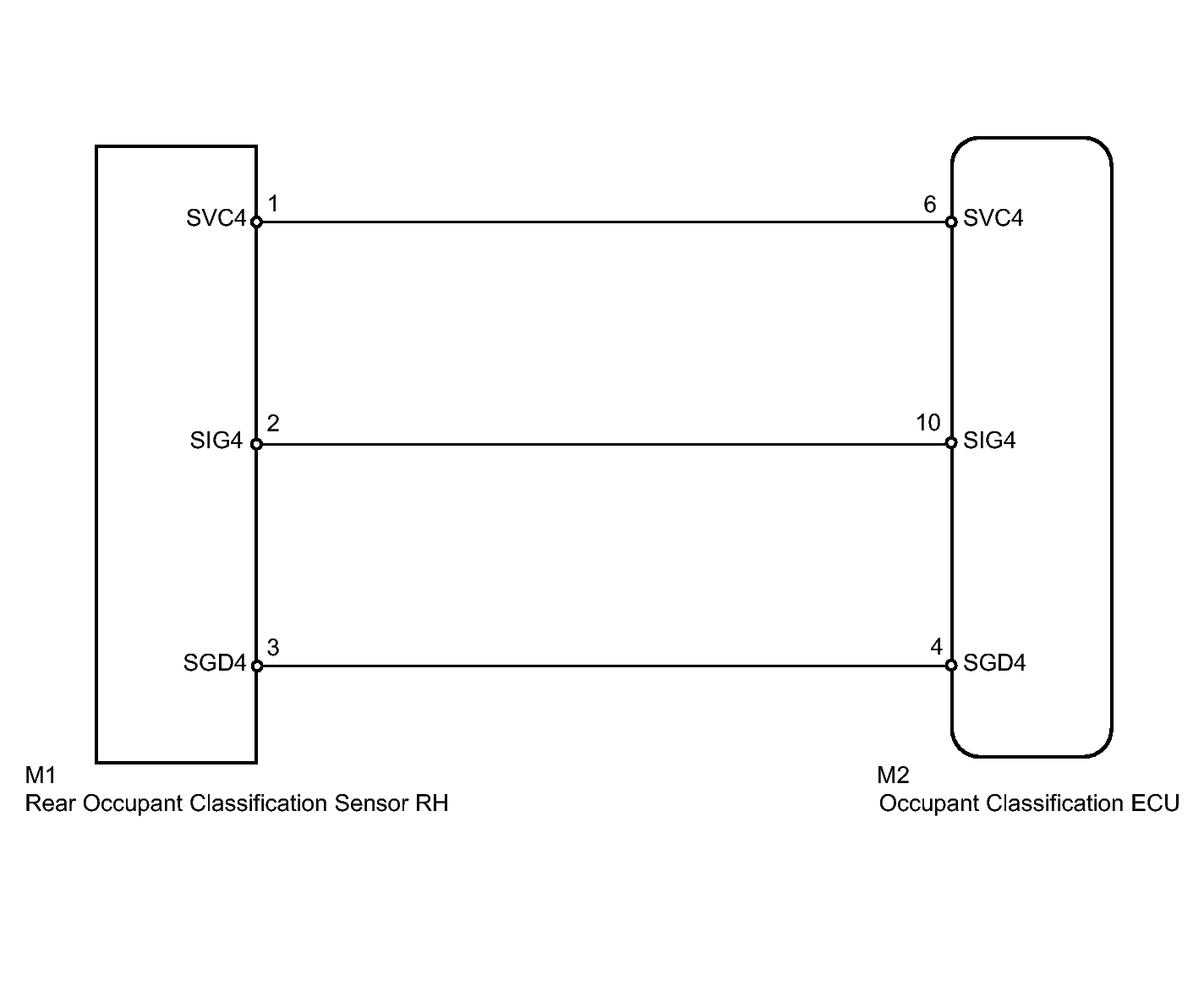

Fig 1: Rear Occupant Classification Sensor RH - Wiring Diagram

GTY345634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
