DTC B1785: Front Occupant Classification Sensor LH Collision Detection: Wiring Diagram

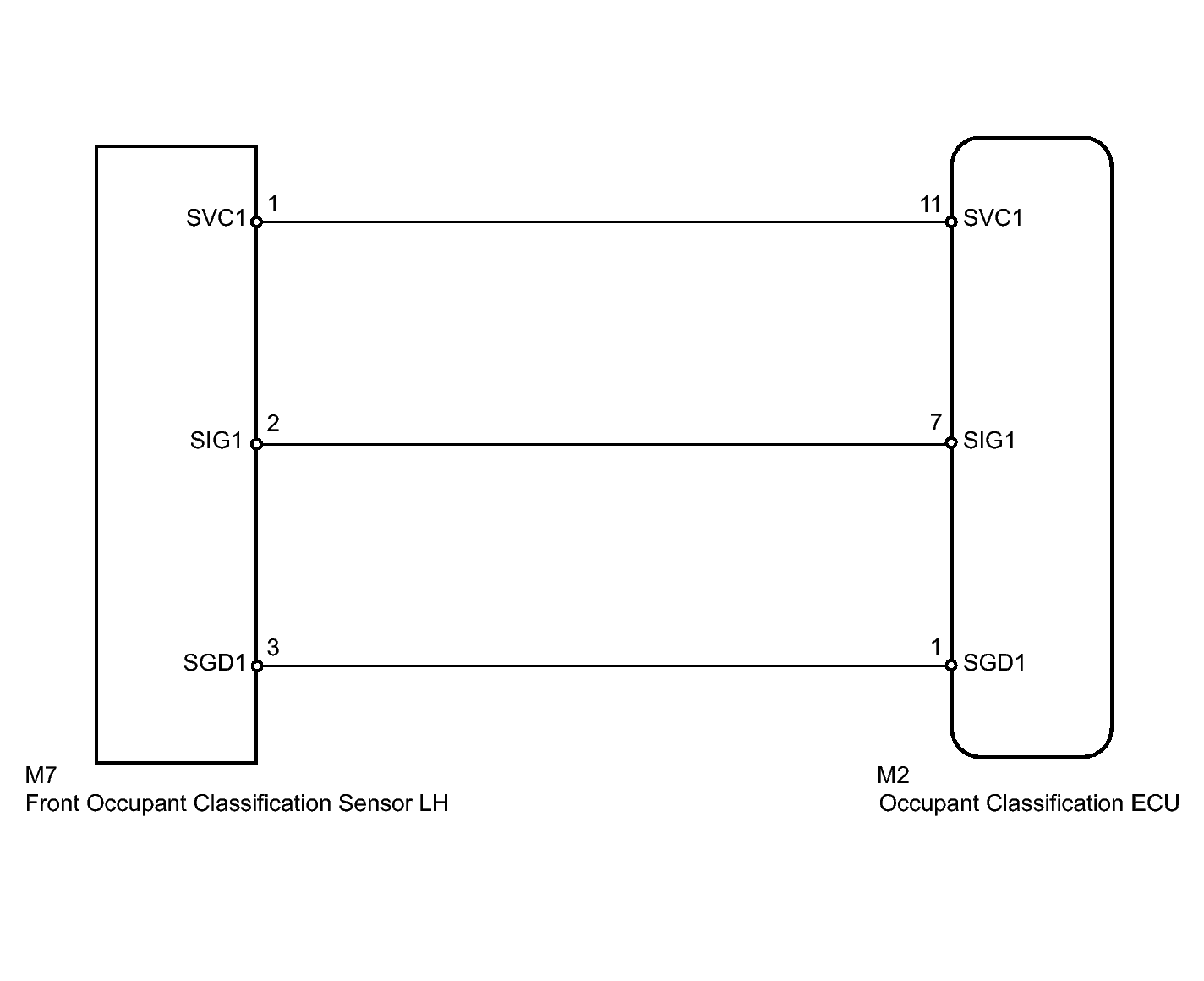

Fig 1: Front Occupant Classification Sensor - Wiring Diagram

GTY345722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
