Remote Up / Down Function does not Operate: Wiring Diagram

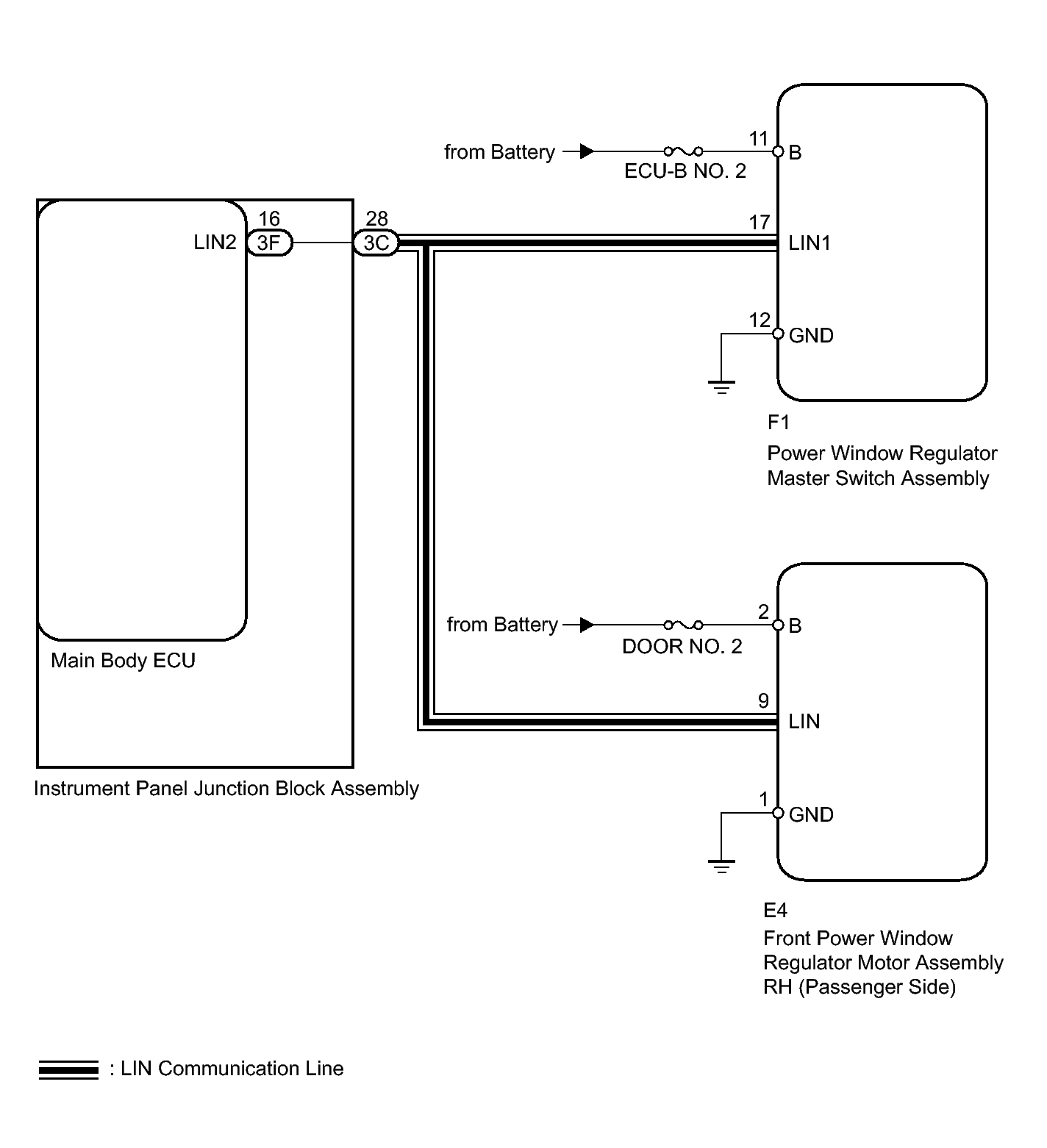

Fig 1: Remote Up / Down Function Does Not Operate - Wiring Diagram

GTY346264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
