Brake Actuator: Components: Illustration

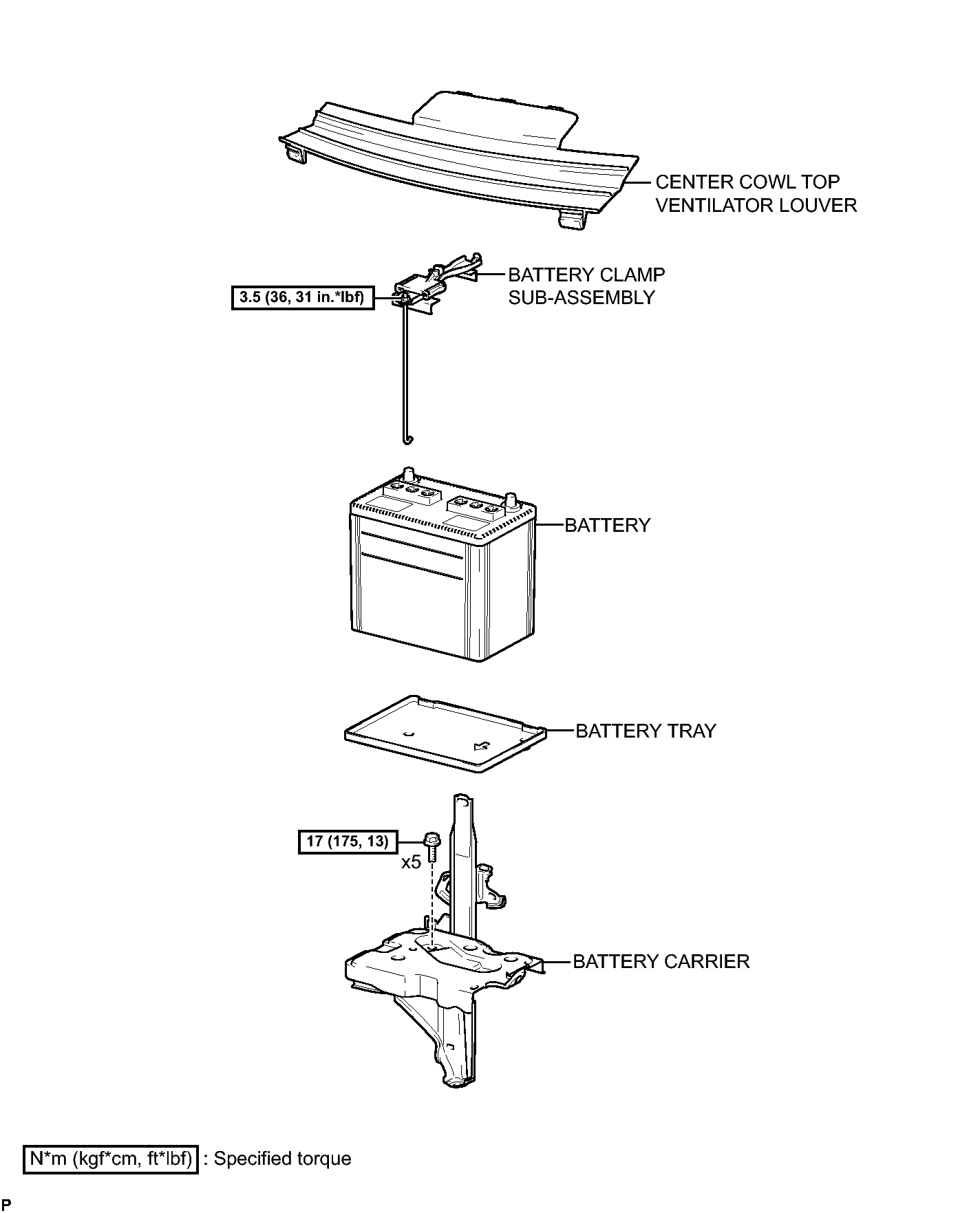

Fig 1: Identifying Brake Actuator (W/VSC) Replacement Components (With Torque Specifications) (1 Of 2)
GTY314542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

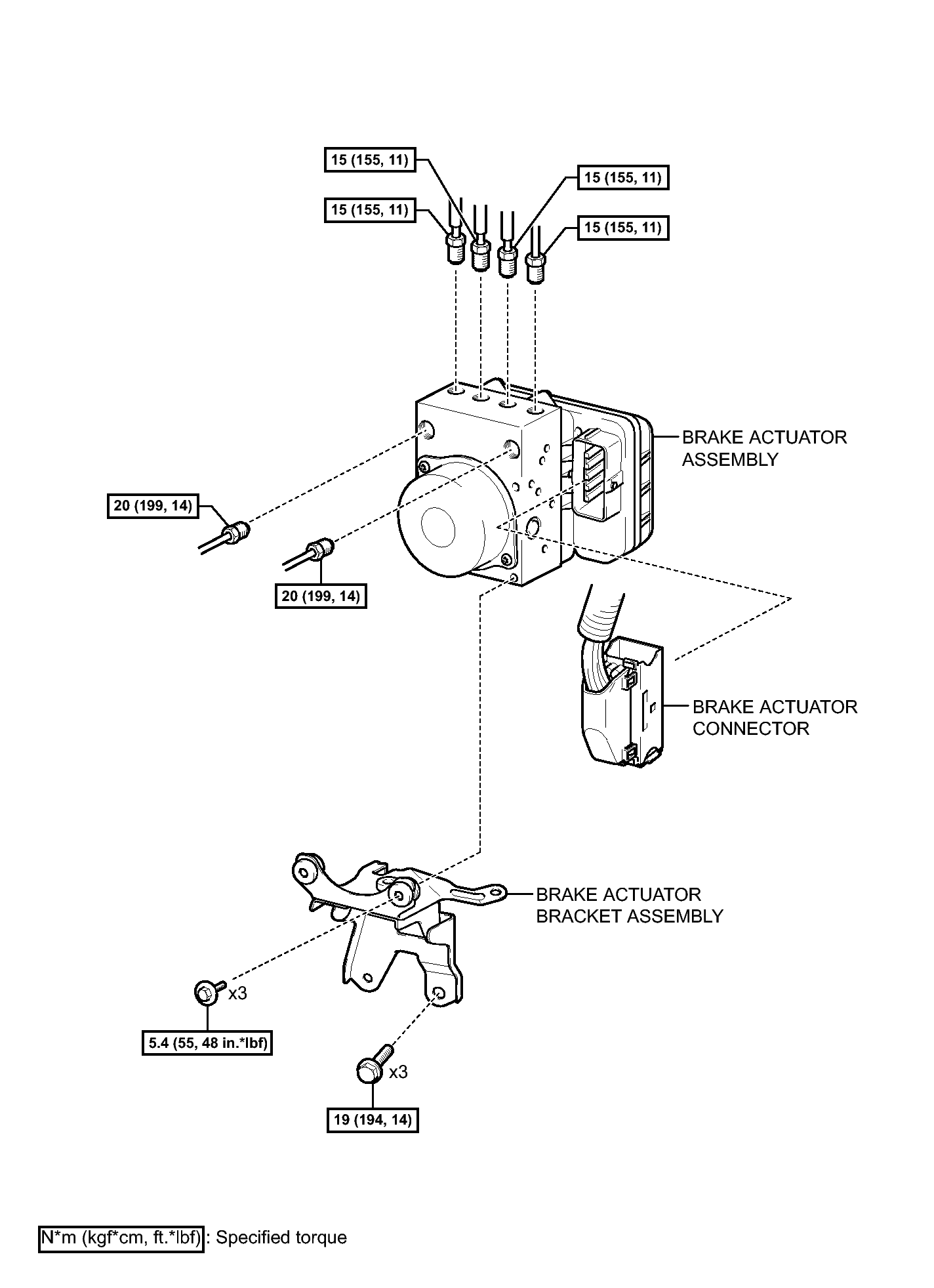

Fig 1: Brake Actuator (W/VSC) Replacement Components With Torque Specifications (2 Of 2)
GTY292076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
