Front Speed Sensor: Installation: Installation

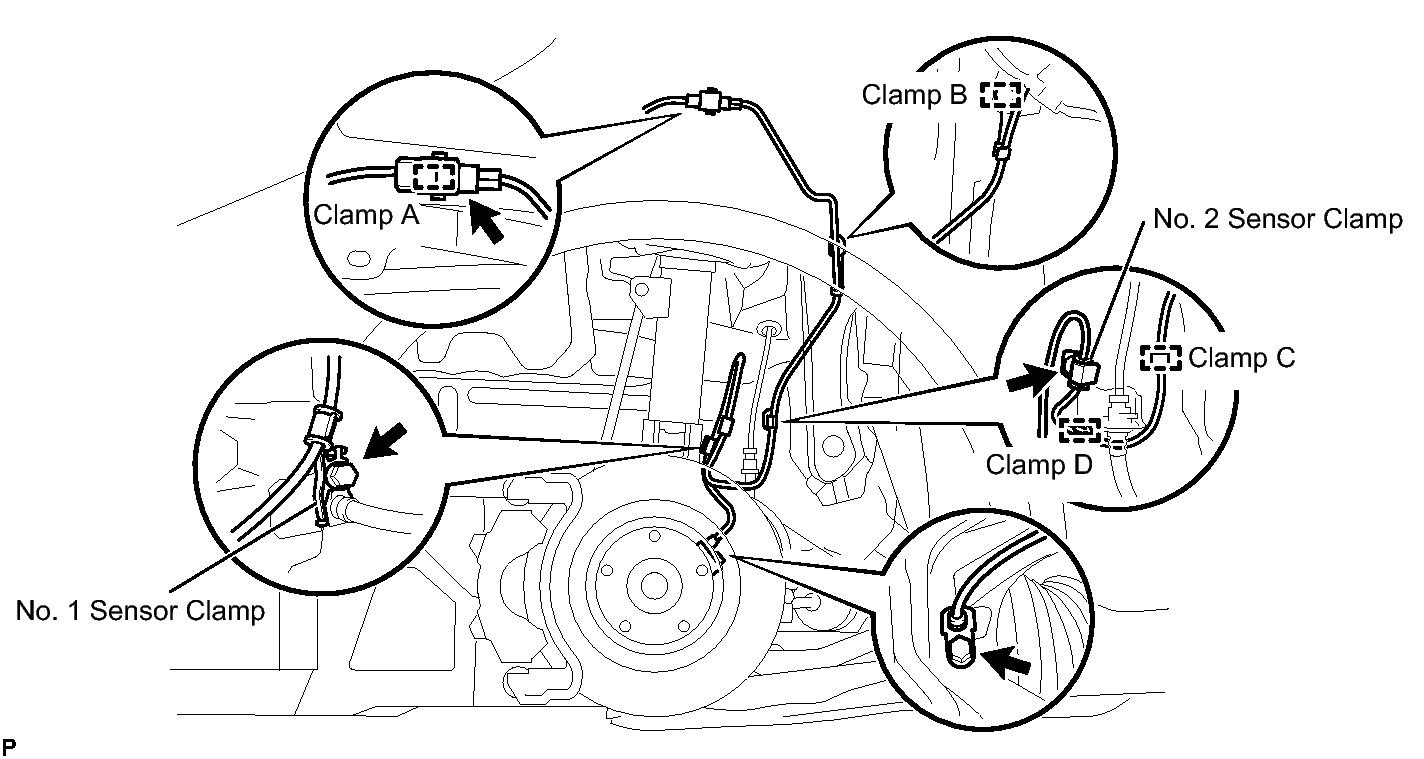

Fig 1: Identifying Clamp A From Body

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the speed sensor onto the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Check that the speed sensor tip and installation portion are free of foreign matter.
   • Install the speed sensor without turning it from its original installation angle.
2. Install the No. 1 sensor clamp onto the shock absorber with the bolt.

   Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

3. Install the No. 2 sensor clamp onto the body with the bolt.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

4. Engage the clamps D, C and B onto the body.
5. Connect the speed sensor connector.
6. Engage the clamp A onto the body.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to TEST MODE PROCEDURE
