Vehicle Intrusion Protection (VIP RS3200 Plus)
>>
Programming
>>
Passive Arming On/Off Selection, Entry Delay Time Selection
Passive Arming On/Off Selection, Entry Delay Time Selection

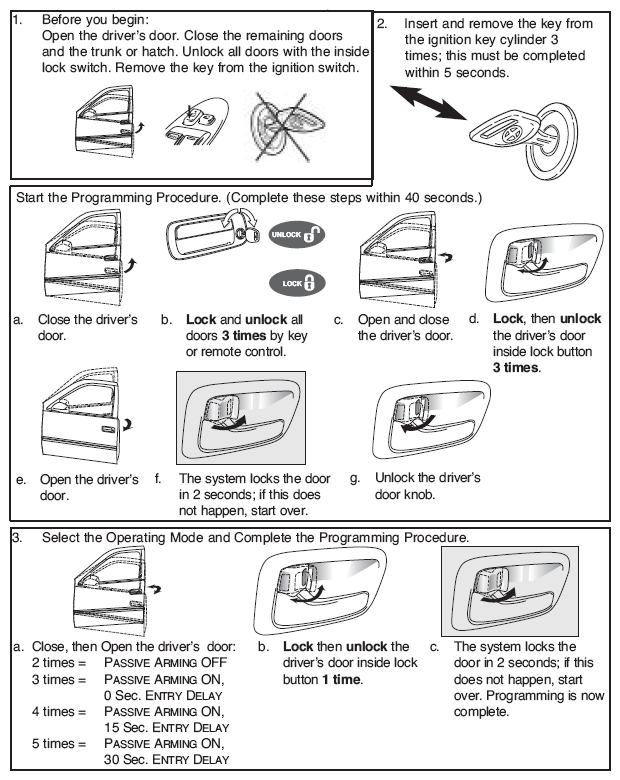

Fig 1: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
