System Diagram

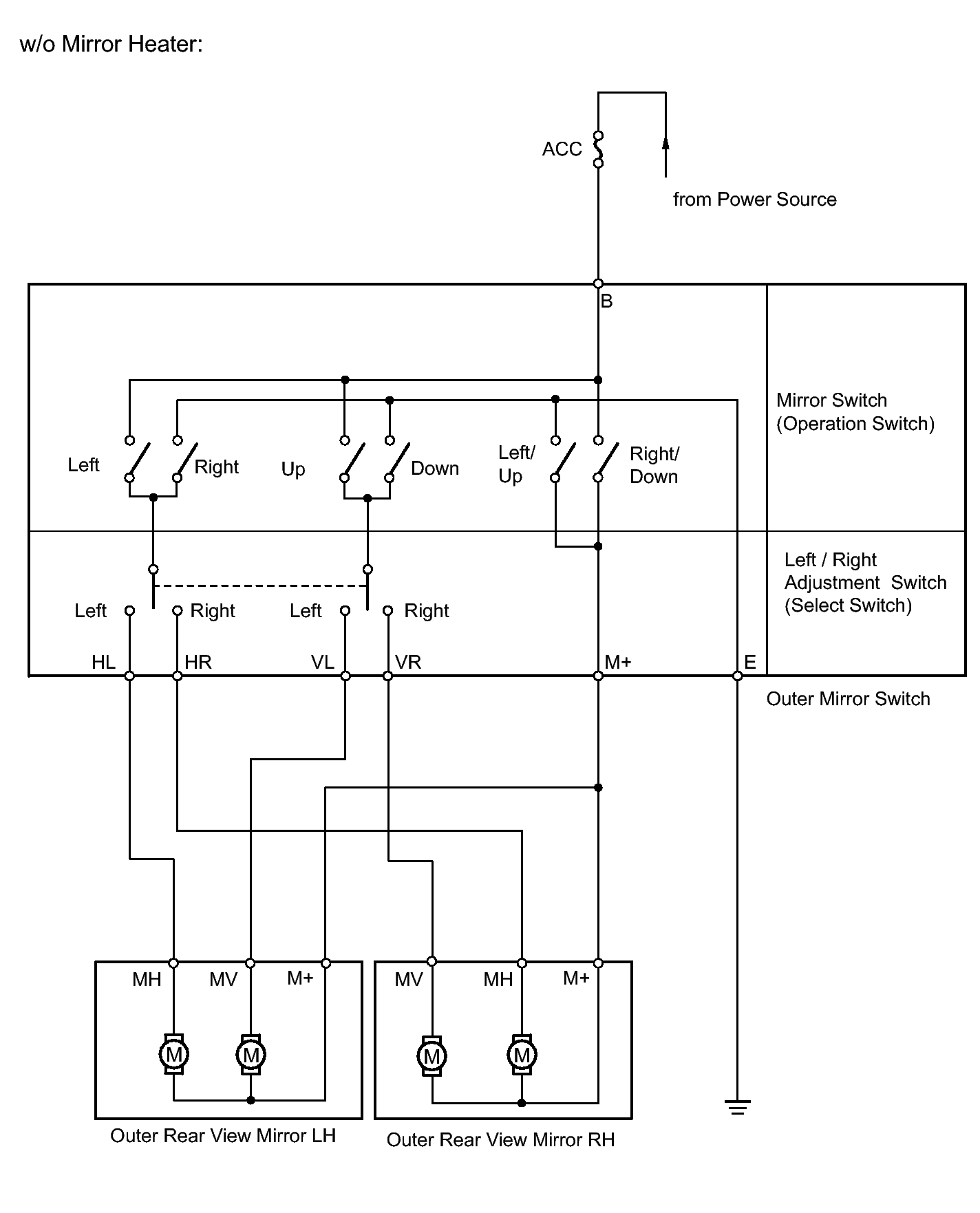

Fig 1: Power Mirror Control System Wiring Diagram (1 of 2)
GTY313771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

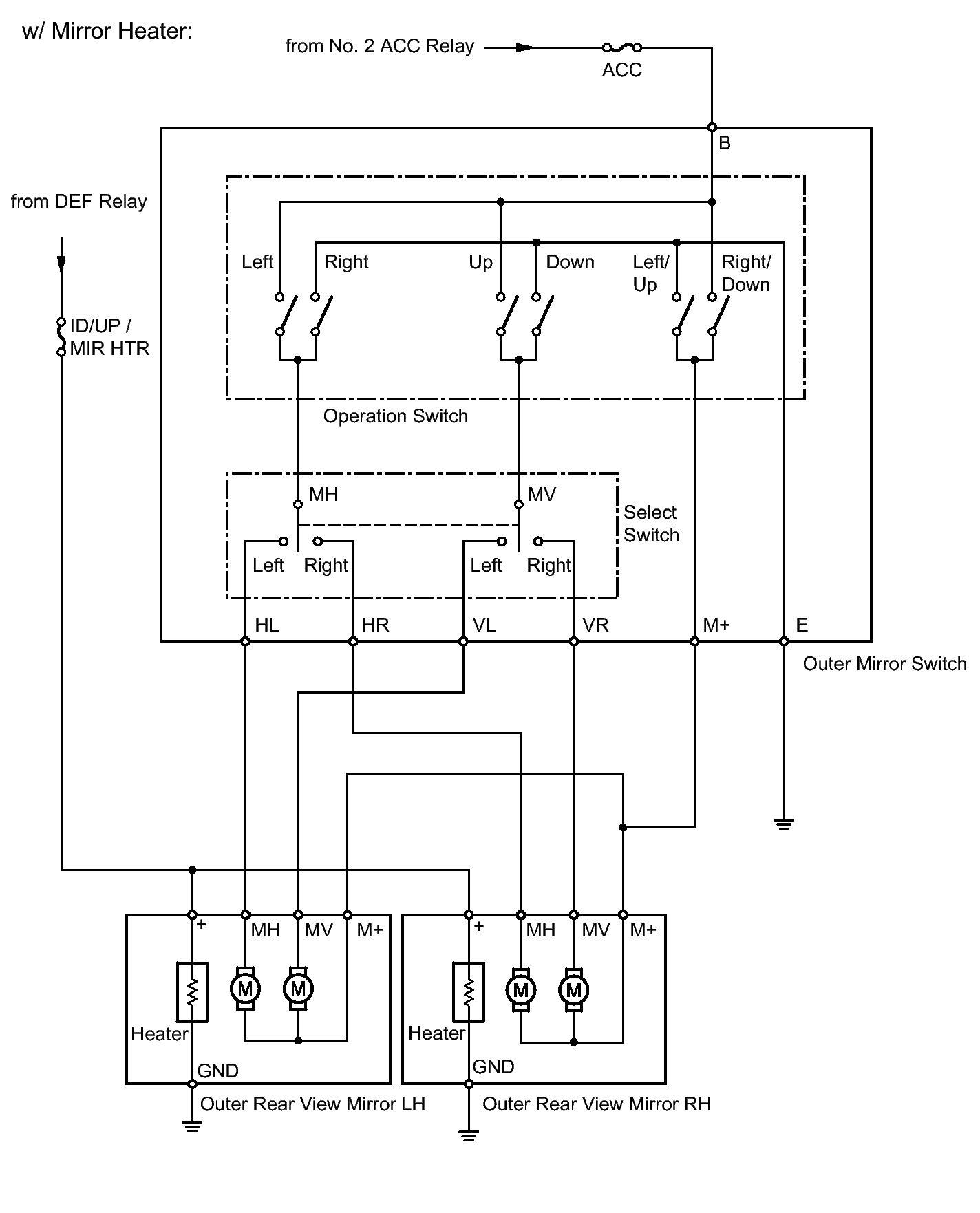

Fig 2: Power Mirror Control System Wiring Diagram (2 of 2)
GTY312013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
