Electronically Controlled Transmission and A/T Indicator: Notes

WARNING: This page is about a different car, the 2010 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

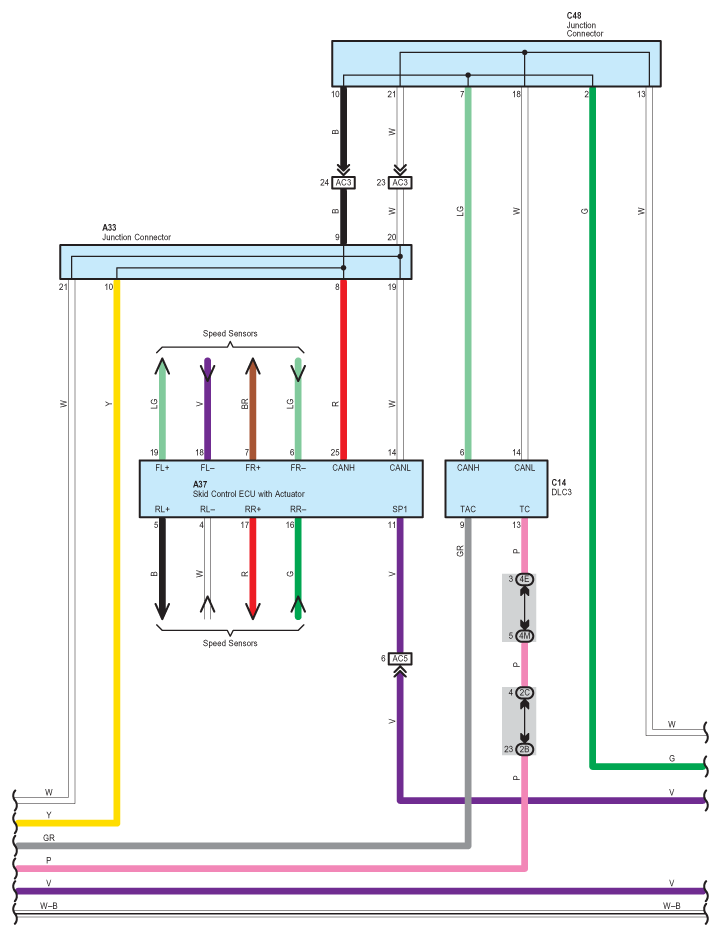

Fig 1: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

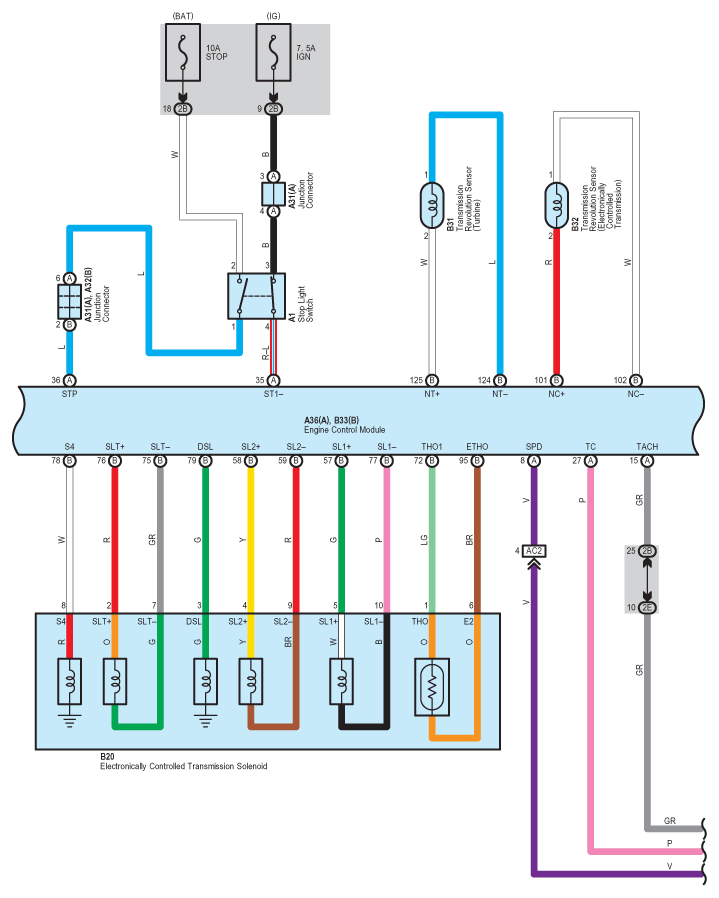

Fig 2: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

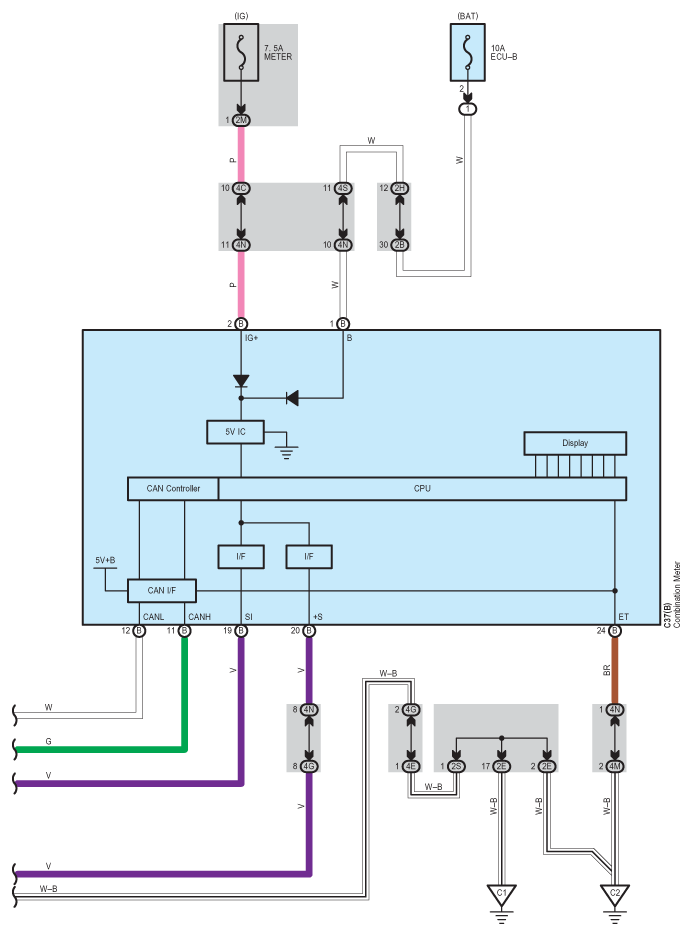

Fig 3: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

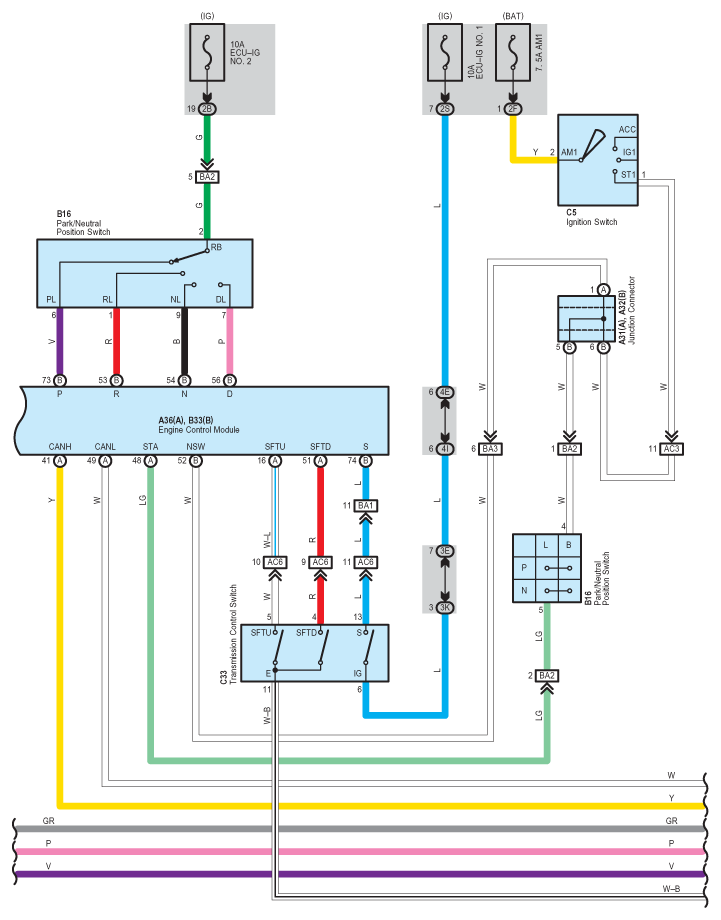

Fig 4: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (4 Of 6)

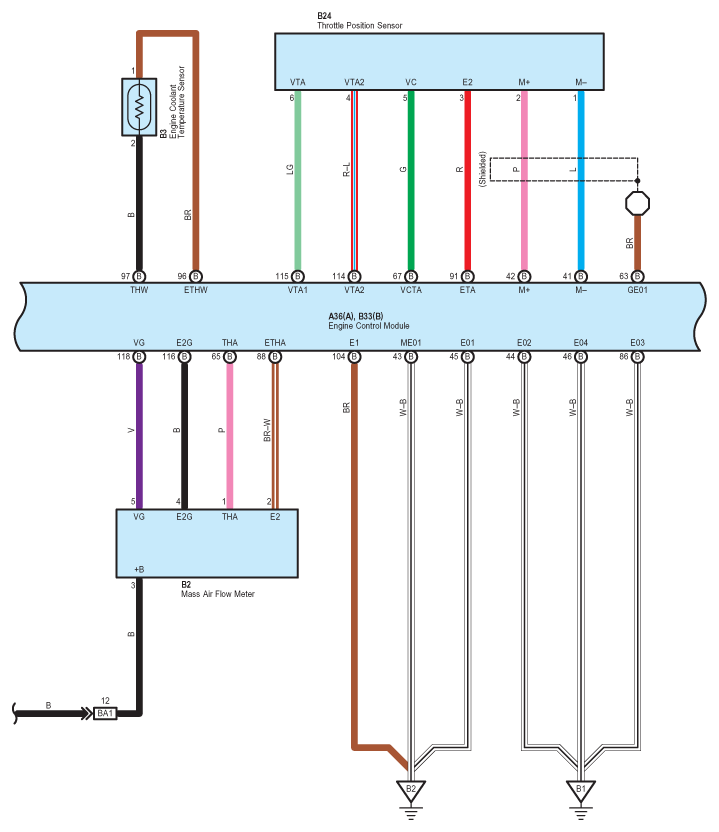

Fig 5: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (5 Of 6)

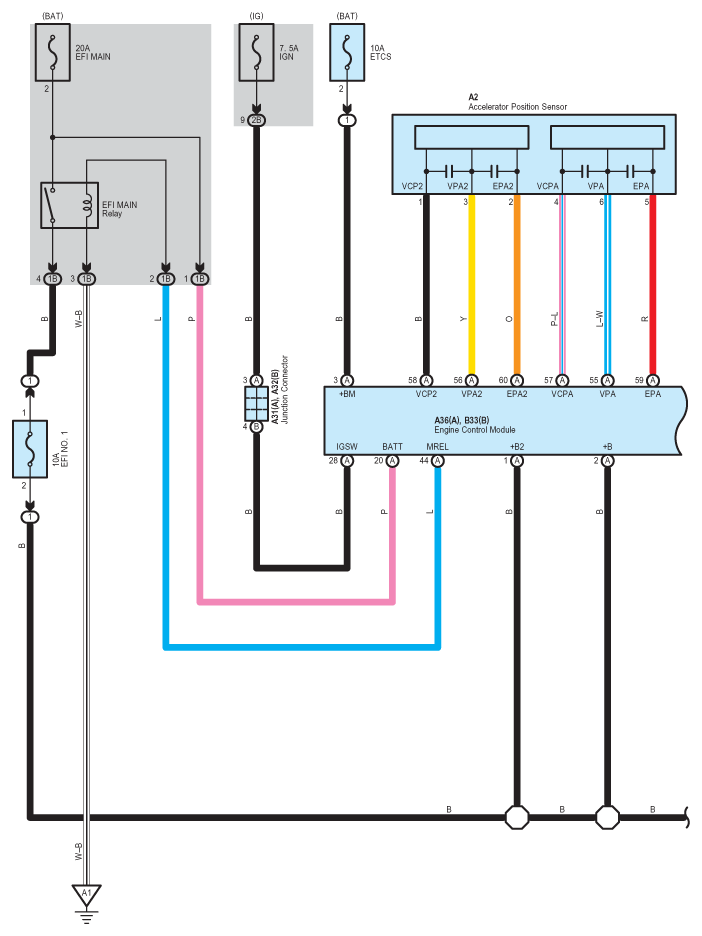

Fig 6: Electronically Controlled Transmission And A/T Indicator - Circuit Diagram (6 Of 6)
