Engine Control System (Service Information): ECM: Removal: Removal

REMOVE AIR CLEANER ASSEMBLY

Fig 1: Identifying Mass Air Flow Meter Connector And Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the mass air flow meter connector.
2. Separate the wire harness.
3. Loosen the No. 1 air cleaner hose clamp, unlock the air cleaner assembly clamp and remove the air cleaner cap sub-assembly.

  Fig 2: Identifying Air Cleaner Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the air cleaner filter element sub-assembly.
5. Separate the wire harness.

  Fig 3: Identifying Air Cleaner Assembly Bolts And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 3 bolts and remove the air cleaner case sub-assembly.
REMOVE ECM

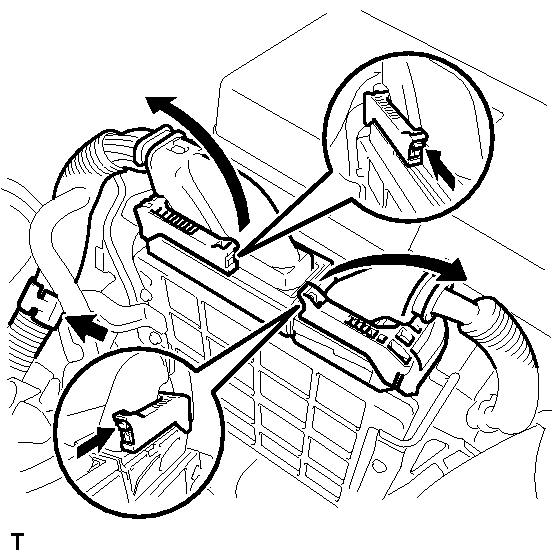

Fig 4: Disconnecting ECM Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 lock knobs and harness clamp.
2. Disconnect the 2 ECM connectors.
3. Separate the engine wire.
4. Remove the 2 bolts from the ECM.

  Fig 5: Identifying ECM Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 4 screws and ECM bracket.

  Fig 6: Identifying ECM Bracket Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
