System Diagram

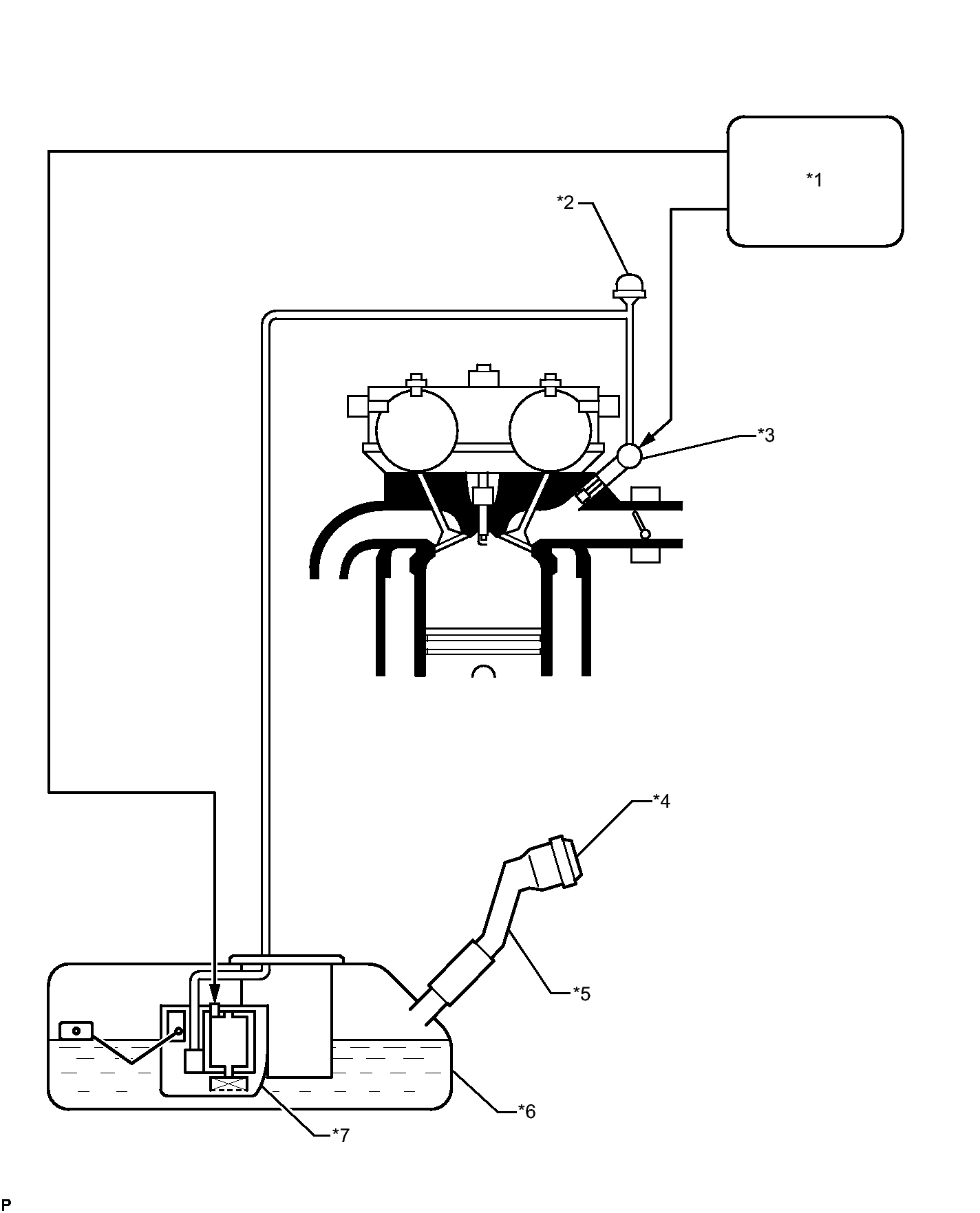

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow Diagram
    GTY313760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *1 ECM *2 Fuel Pressure Pulsation Damper
    *3 Fuel Injector *4 Fuel Tank Cap
    *5 Fuel Tank Filler Pipe *6 Fuel Tank
    *7 Fuel Suction Tube Assembly with Pump and Gauge
    - Fuel Pump
    - Fuel Sender Gauge
    - Fuel Pressure Regulator
    - Fuel Filter    		 - -

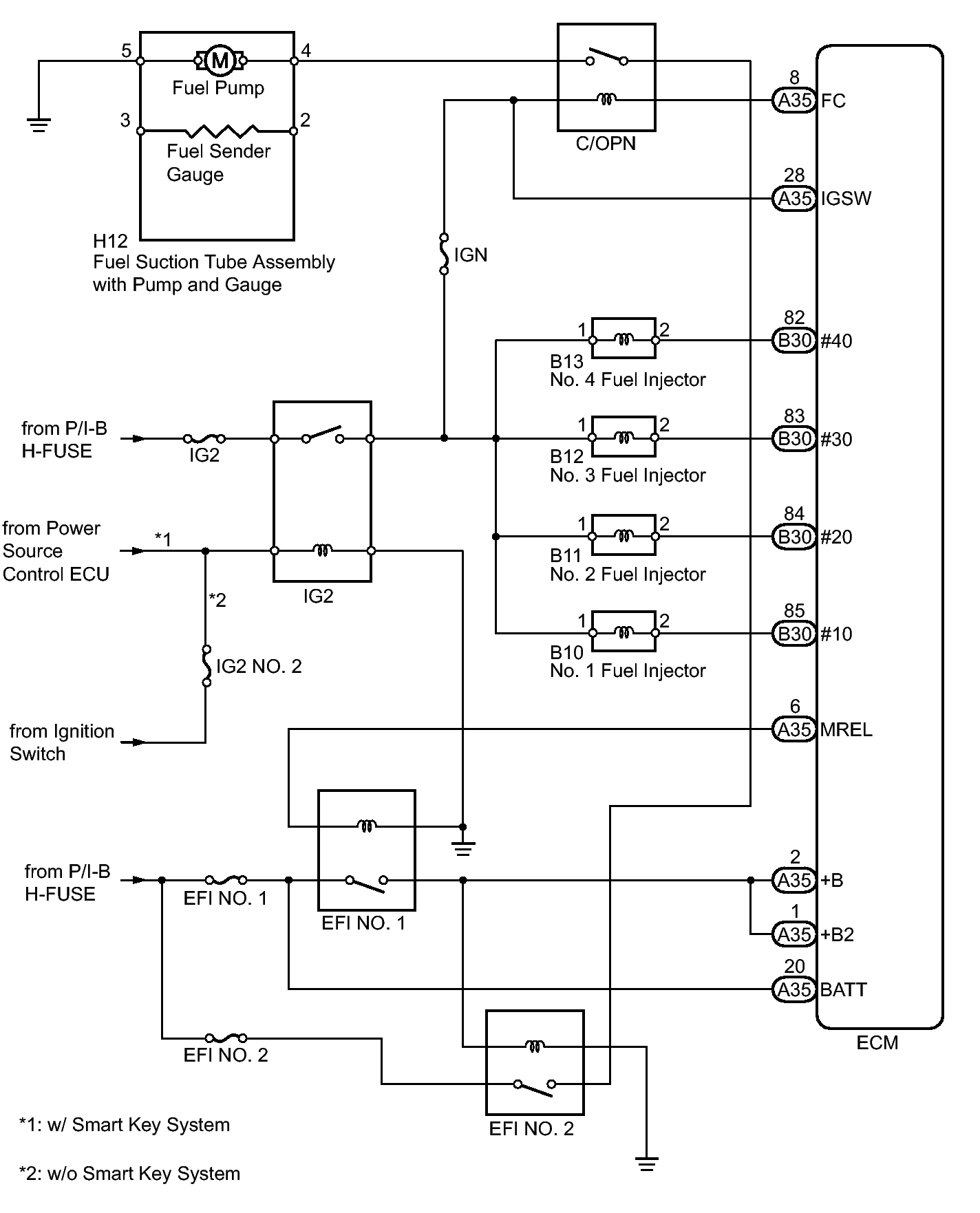

  2. FUEL SYSTEM WIRING DIAGRAM
    Fig 2: Fuel System Wiring Diagram
    GTY314170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
