Power Windows do not Operate at All: Wiring Diagram

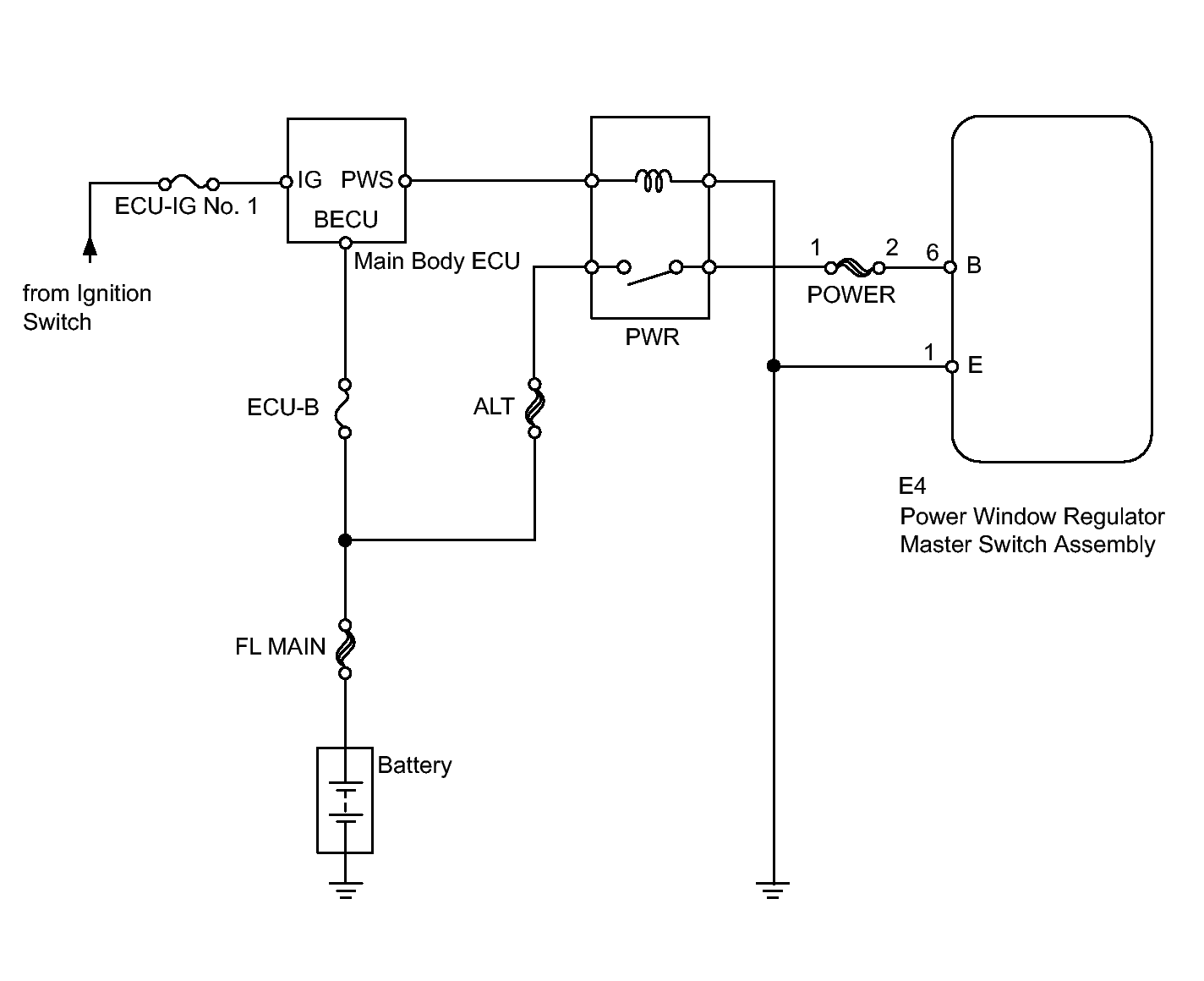

Fig 1: Power Window Regulator Master Switch - Wiring Diagram

GTY160281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
