Knock Sensor, Intake Manifold: Removal: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE  . Refer to REMOVAL - Step 1
  2. DRAIN COOLANT  . Refer to ON-VEHICLE INSPECTION - Step 1
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  4. REMOVE FRONT WIPER ARM HEAD CAP  . Refer to REMOVAL - Step 2
  5. REMOVE FRONT WIPER ARM LH  . Refer to REMOVAL - Step 3
  6. REMOVE FRONT WIPER ARM RH  . Refer to REMOVAL - Step 4
  7. REMOVE HOOD TO COWL TOP SEAL  . Refer to REMOVAL - Step 5
  8. REMOVE COWL TOP VENTILATOR LOUVER LH  . Refer to REMOVAL - Step 6
  9. REMOVE WIPER LINK  . Refer to REMOVAL - Step 7
  10. REMOVE COWL TOP PANEL OUTER
    1. Remove the wire harness clamp.

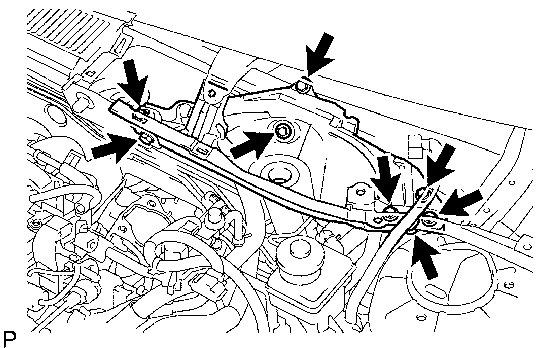

      Fig 1: Identifying Bolts And Panel With Wire Harness Clamp
      GTY161643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 7 bolts and panel.
  11. REMOVE COWL BODY MOUNTING BRACKET LOWER LH
    1. Remove the bolt, clip and bracket.

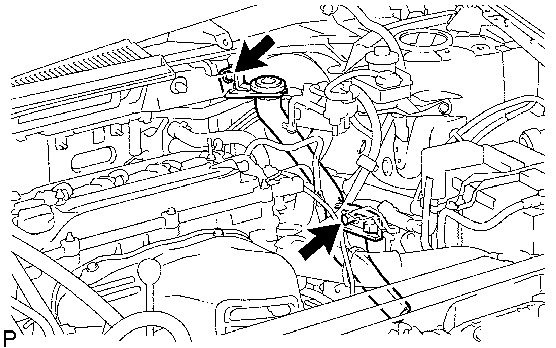

      Fig 2: Identifying Bolt, Clip And Bracket
      GTY163558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE ENGINE COVER  See step  3
  13. REMOVE AIR CLEANER CAP  See step  4
  14. REMOVE THROTTLE BODY  See step  5
  15. REMOVE FUEL DELIVERY PIPE  . Refer to REMOVAL - Step 7
  16. REMOVE FUEL TUBE
    1. Remove the fuel tube clamp.
      Fig 3: Identifying Fuel Tube Clamp
      GTY164893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pinch the retainer as illustrated, and then pull the fuel tube connector out of the pipe.
      NOTE:
      • Remove any dirt and foreign objects on the fuel tube connector before performing this work.
      • When disconnecting the connector, do not damage the connector and pipe, and do not allow foreign matter to contact the connector and pipe. Damage or foreign matter may damage the O-ring that seals the pipe and lead to leaks.

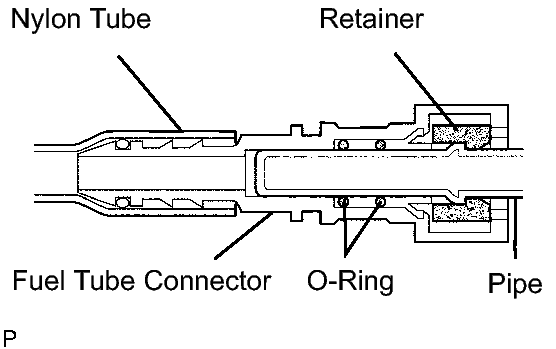

        Fig 4: Identifying Fuel Tube Connector
        GTY164076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the nylon tube.
      • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tube.
      • If the fuel tube connector and pipe are stuck, push and pull to release them.
  17. REMOVE HEATER WATER INLET HOSE
    1. Remove the hose clamp.

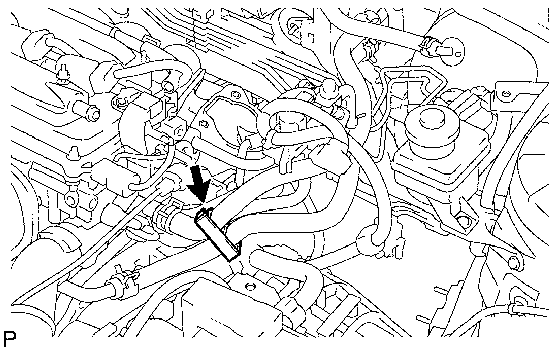

      Fig 5: Identifying Hose Clamp
      GTY163702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the heater water inlet hose from the heater radiator unit and cylinder head.

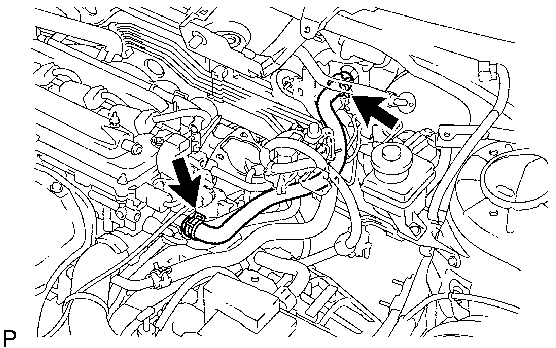

      Fig 6: Identifying Heater Water Inlet Hose
      GTY161644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE HEATER WATER OUTLET HOSE
    1. Remove the heater water outlet hose from the heater radiator unit and water by-pass pipe.

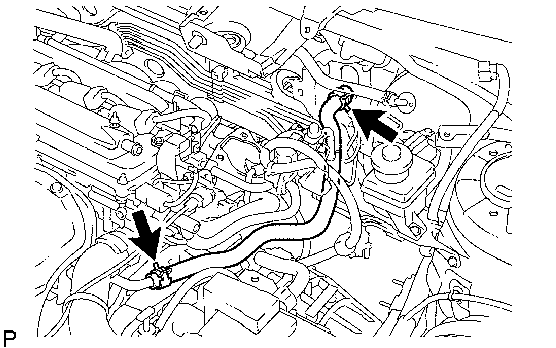

      Fig 7: Identifying Heater Water Outlet Hose
      GTY161645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE INTAKE MANIFOLD
    1. Disconnect the union to check valve hose from the brake booster.

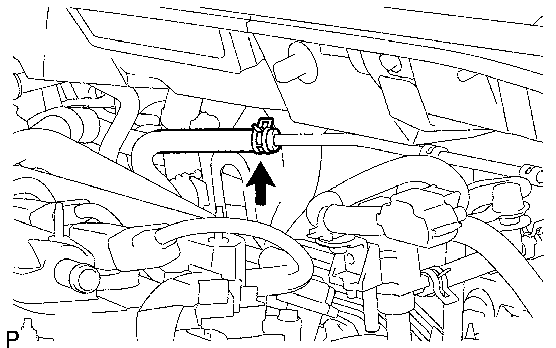

      Fig 8: Identifying Brake Booster Hose
      GTY163919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the camshaft timing oil control valve connector.

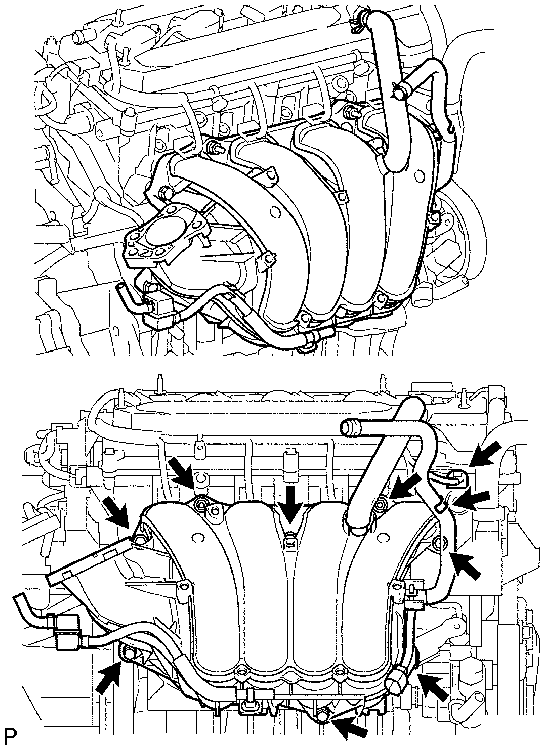

      Fig 9: Identifying Intake Manifold With Bolts And Nuts
      GTY166852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the wire harness clamp.
    4. Remove the union to check valve hose from the vacuum hose clamp.
    5. Remove the 5 bolts, 2 nuts and intake manifold.
    6. Remove the gasket from the intake manifold.

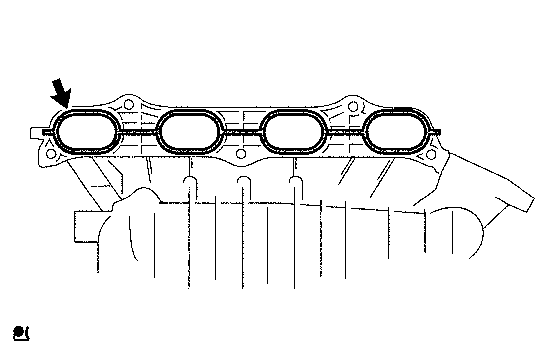

      Fig 10: Locating Intake Manifold Gasket
      GTY165547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INTAKE MANIFOLD INSULATOR
    1. Remove the intake manifold insulator from the cylinder block.

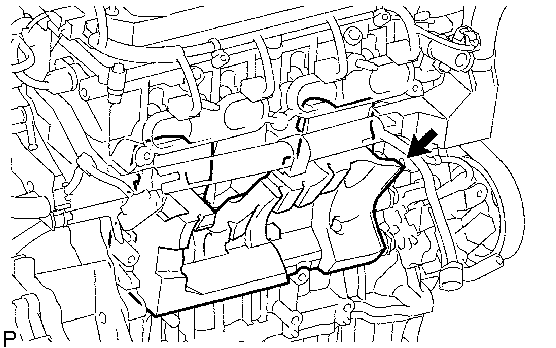

      Fig 11: Removing Intake Manifold Insulator
      GTY162263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE KNOCK SENSOR
    1. Disconnect the sensor connector.

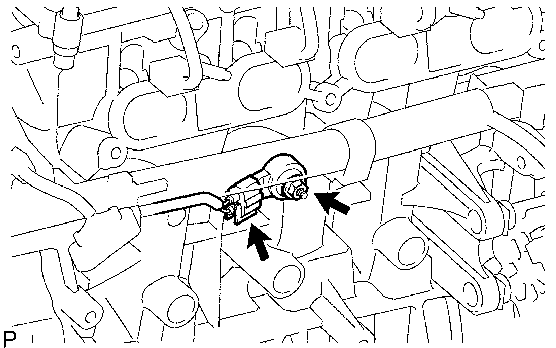

      Fig 12: Identifying Knock Sensor Connector And Nut
      GTY164880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and sensor.
