Ignition Switch: Installation: Installation

  1. INSTALL IGNITION SWITCH ASSEMBLY
    Fig 1: Identifying Lock Stopper And Screw
    GTY164789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the lock stopper with the screw.

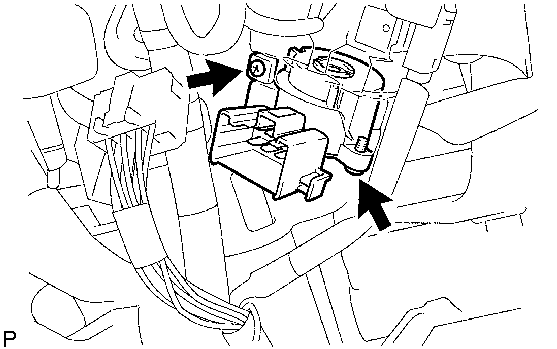

      2. Fig 2: Identifying Ignition Switch And Screws
      GTY163026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the ignition switch with the 2 screws.
      3. Fig 3: Identifying Ignition Switch Cable Tie
      GTY165519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the claw position, and then install the connector of the unlock warning switch.
    4. Install the cable tie.

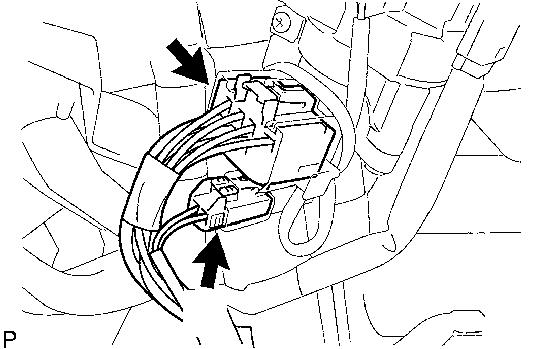

      5. Fig 4: Identifying Ignition And Unlock Warning Switch Connectors
      GTY167033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the unlock warning switch connector.
    6. Connect the ignition switch connector.
  2. INSTALL STEERING COLUMN COVER

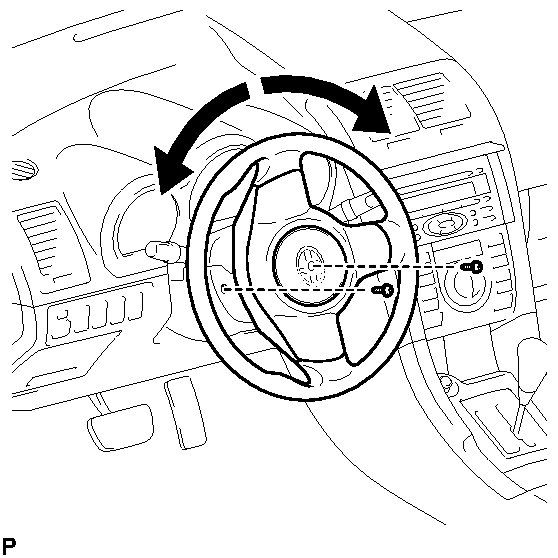

      Fig 5: Identifying Steering Column Cover Screws
      GTY161493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the cover lower with the 2 screws.

      HINT:

      Turn the steering wheel to the right and left as necessary to install the 2 screws and cover lower.

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization. Refer toINITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
