Remote Up / Down Function does not Operate: Wiring Diagram

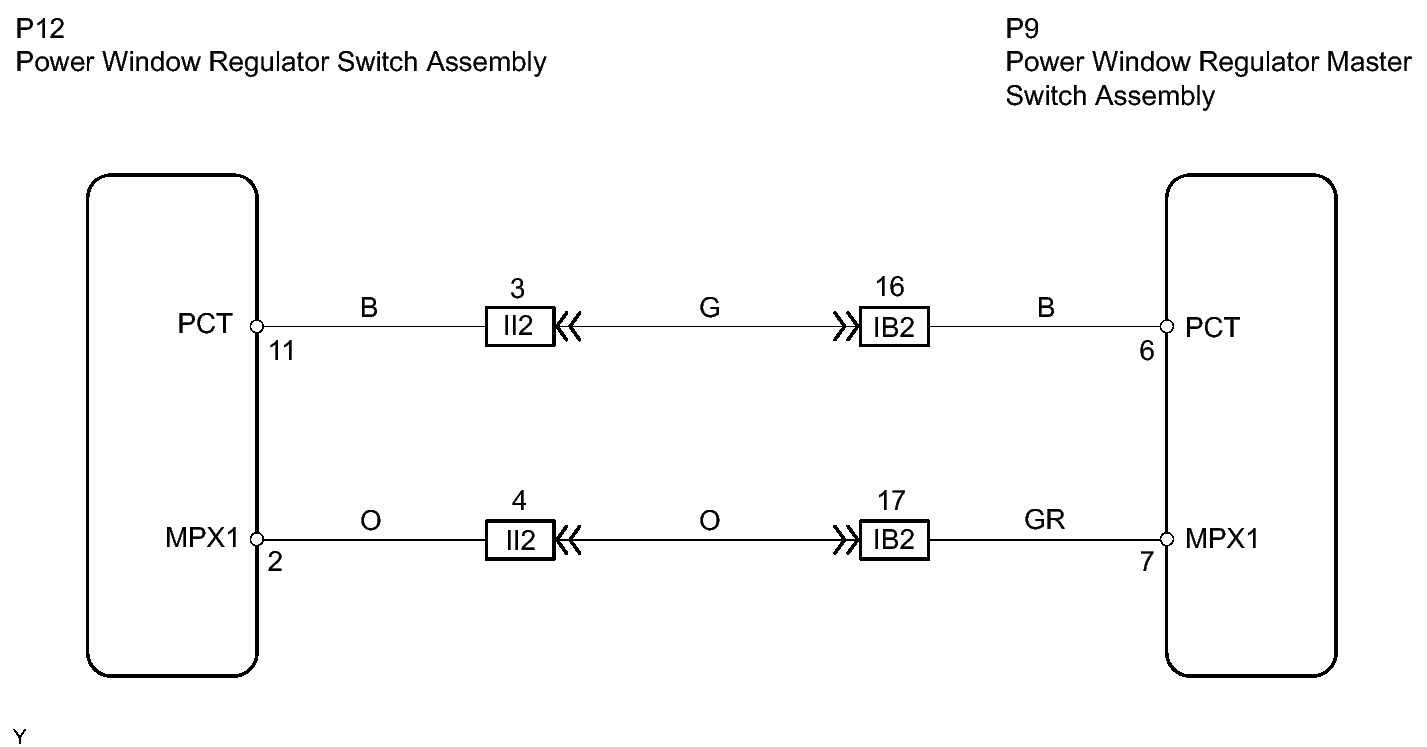

Fig 1: Power Window Regulator Switch Assembly - Wiring Diagram

GTY160578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
