Power Windows do not Operate at All: Wiring Diagram

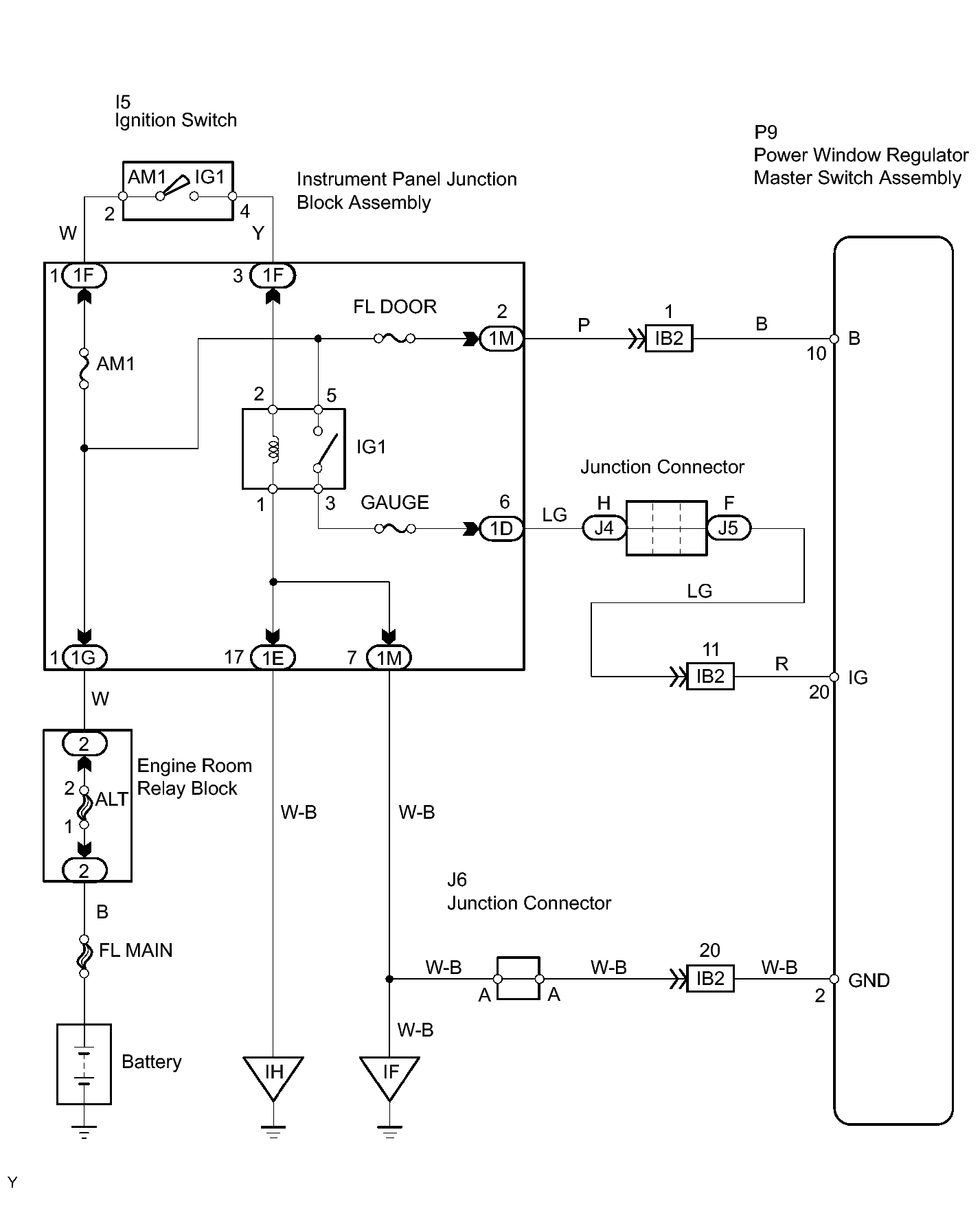

Fig 1: Power Windows - Wiring Diagram

GTY160468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
