Floor Shift Assembly: Components: Illustration

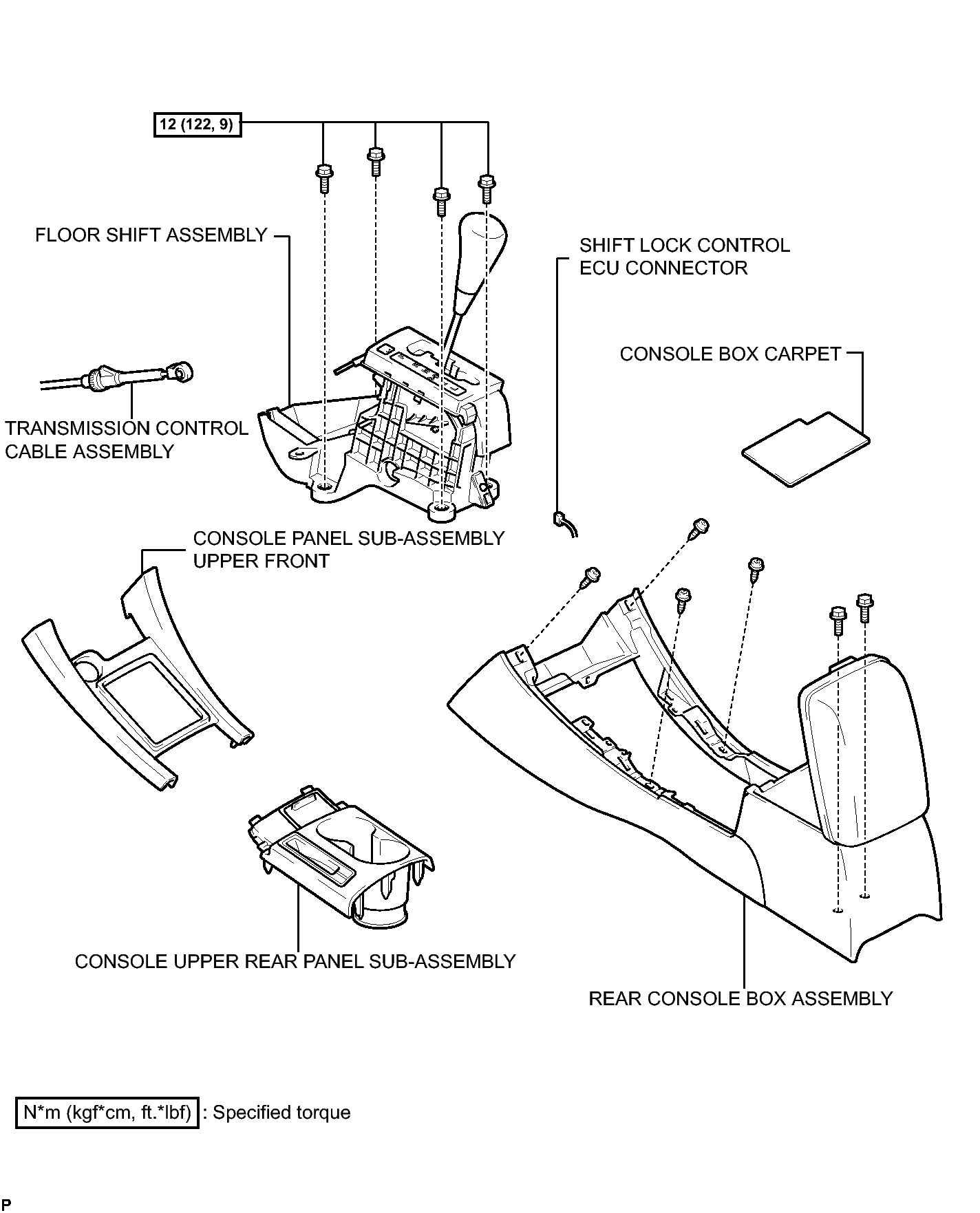

Fig 1: Floor Shift Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY158910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

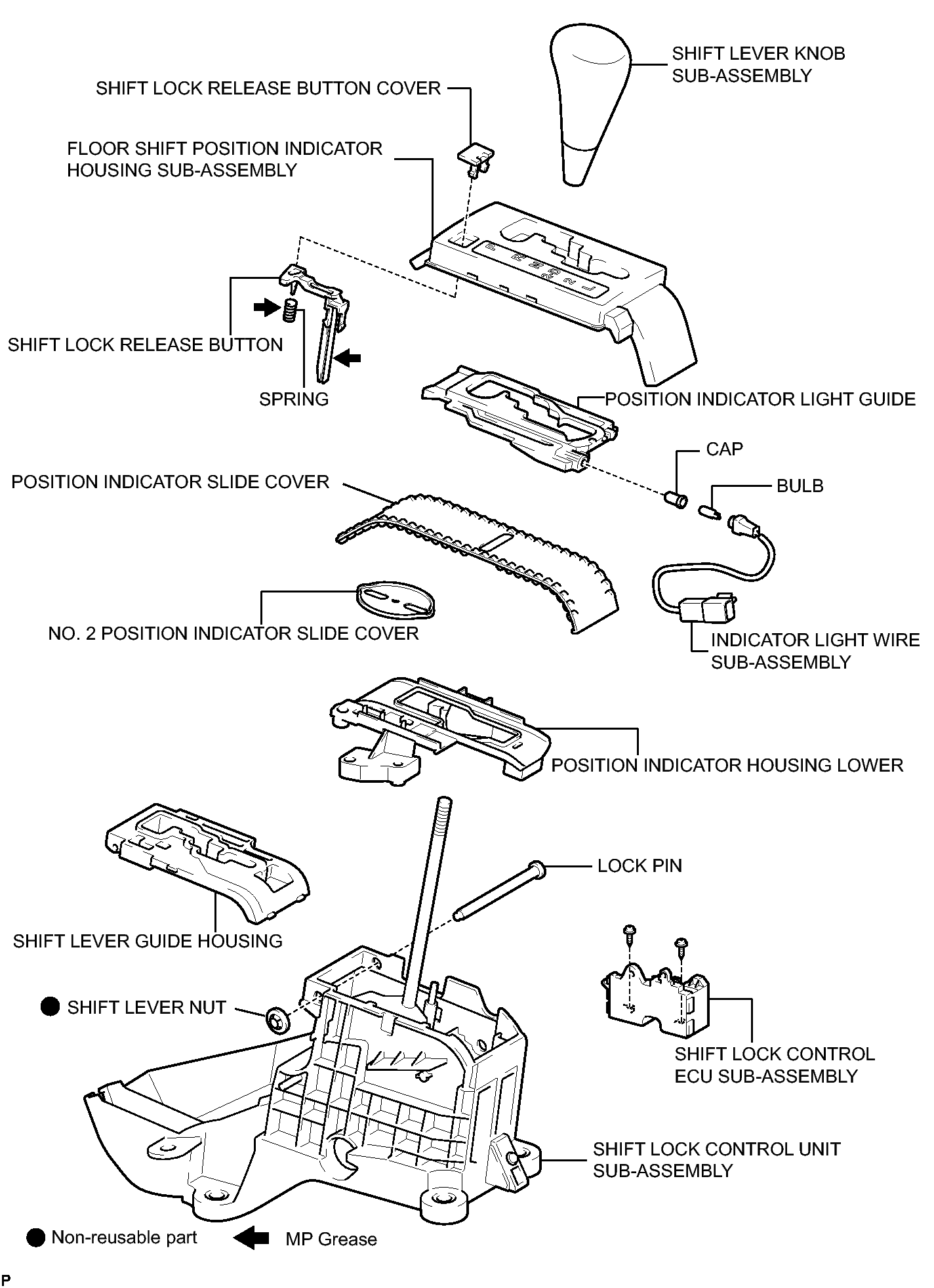

Fig 1: Identifying Floor Shift Assembly Components (2 Of 2)
GTY158911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
