Front Speed Sensor: Installation: Installation

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SPEED SENSOR LH
   Fig 1: Identifying Speed Sensor Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the speed sensor with the bolt.

      Torque: 9.0 N*m ( 92 kgf*cm, 80 ft.*lbf)

      NOTE:

      Keep the sensor tip and sensor installation hole free from foreign matter.

   2. Install the speed sensor to the body with the 2 bolts.
      Fig 2: Identifying Speed Sensor Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N*m ( 92 kgf*cm, 80 ft.*lbf)

      for bolt A

      Torque: 29 N*m ( 296 kgf*cm, 21 in.*lbf)

      for bolt B

   3. Connect the connector and attach the clamp.

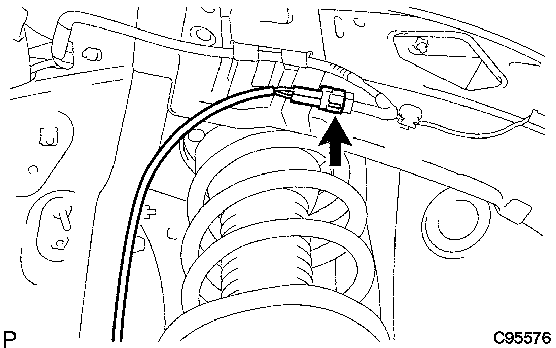

      Fig 3: Identifying Front Speed Sensor LH Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL FRONT FENDER LINER LH  . Refer to INSTALLATION - Step 6
3. INSTALL FRONT WHEEL

   Torque: 103 N*m ( 1,050 kgf*cm, 76 in.*lbf)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

5. CHECK ABS SPEED SENSOR SIGNAL
   1. Check the ABS speed sensor signal. Refer to DIAGNOSIS SYSTEM .
