Clutch Master Cylinder: Components

Fig 1: Clutch Pedal Replacement Components With Torque Specifications (1 Of 2)
G05400413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

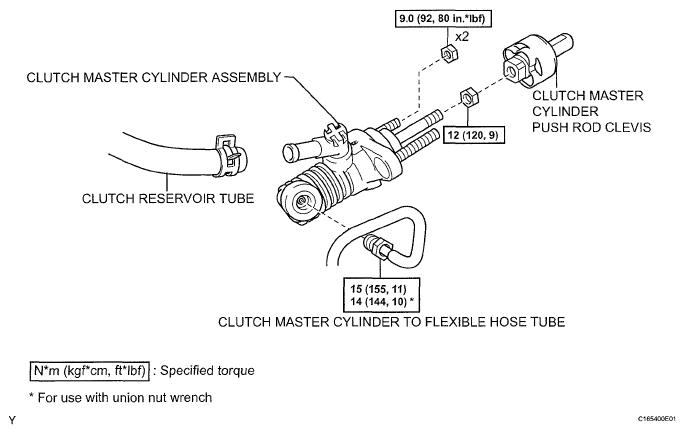

Fig 2: Clutch Master Cylinder Replacement Components With Torque Specifications (2 Of 2)
G05400433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
