DTC U0100/92 Lost Communication with ECM/PCM "A"; DTC U0129/93 Lost Communication with Brake System Control Module: Wiring Diagram

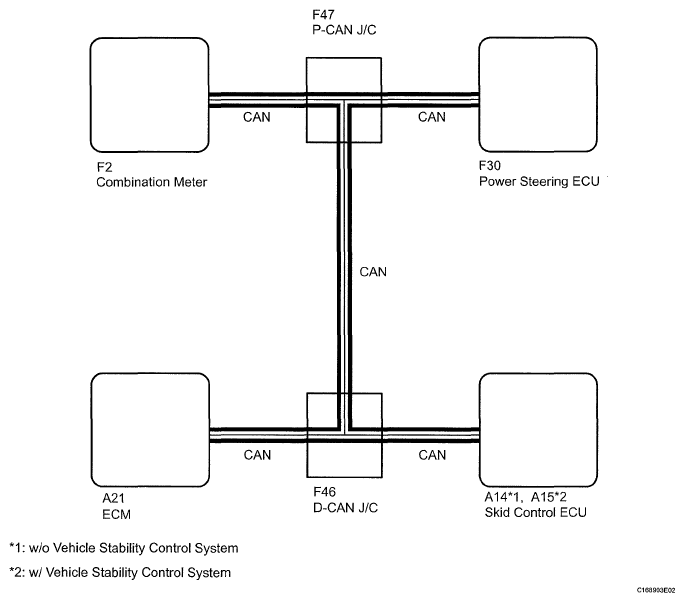

Fig 1: Power Steering ECU And Combination Meter - Wiring Diagram
G05401539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
