Restraints Control Systems
>>
Seat Belt
>>
Seat Belt Warning System
>>
System Diagram
System Diagram

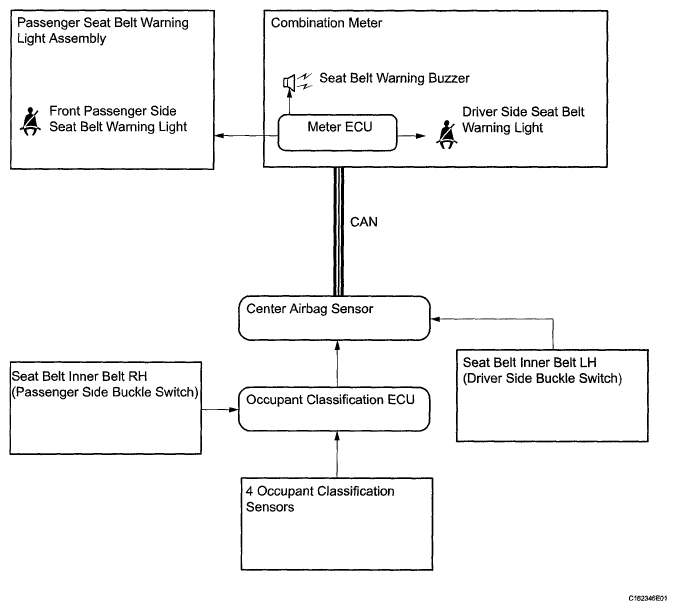

Fig 1: System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
Center Airbag Sensor
Meter ECU
Front seat inner belt switch signal (for driver side)
Front seat inner belt switch signal (for passenger side)
Occupant detection signal
CAN
