Rear Seat Outer Belt Assembly: Components

Fig 1: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05402306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

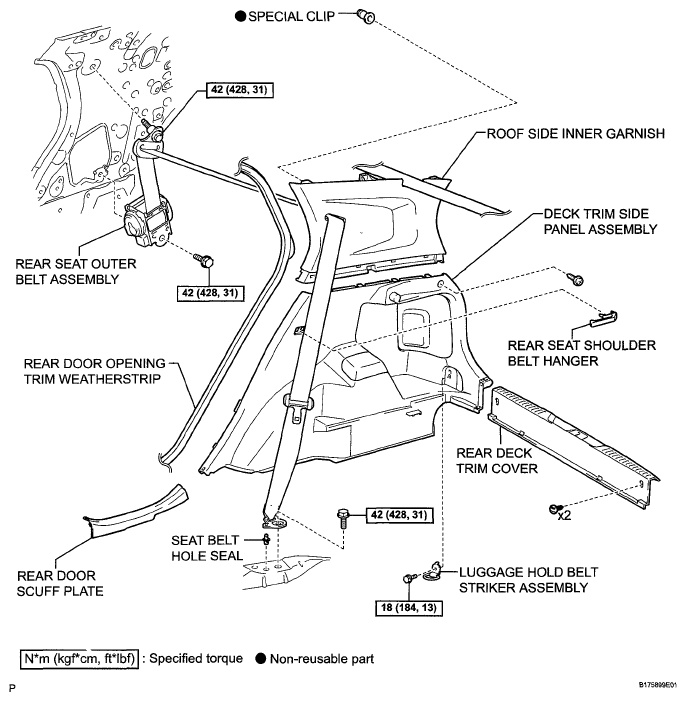

Fig 2: Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05402307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
