Rear Airbag Sensor: Components

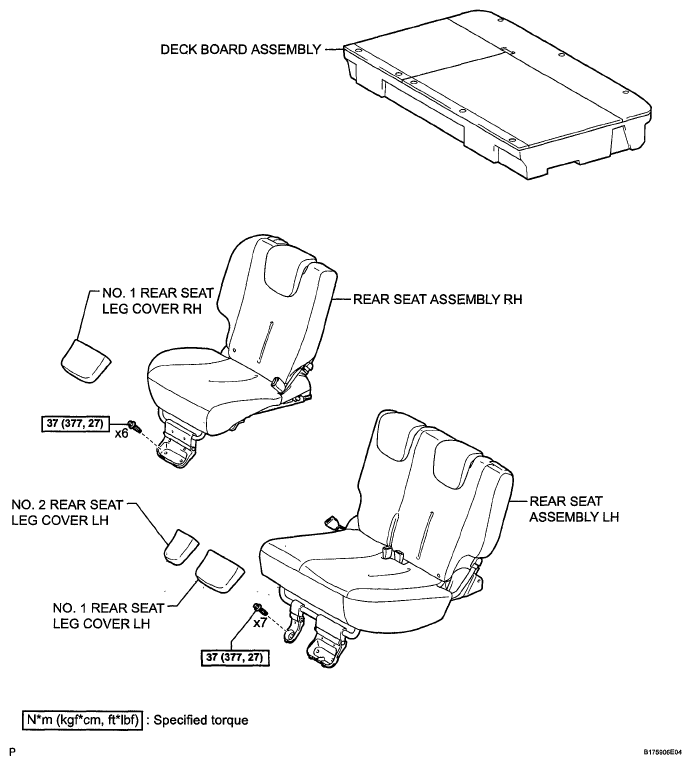

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 2)
G05402214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

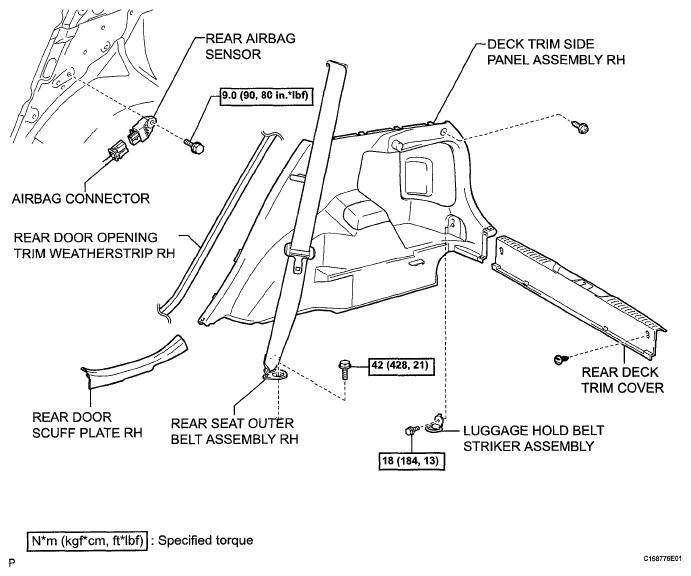

Fig 2: Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
G05402215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
