DTC B1788 Rear Occupant Classification Sensor RH Collision Detection: Wiring Diagram

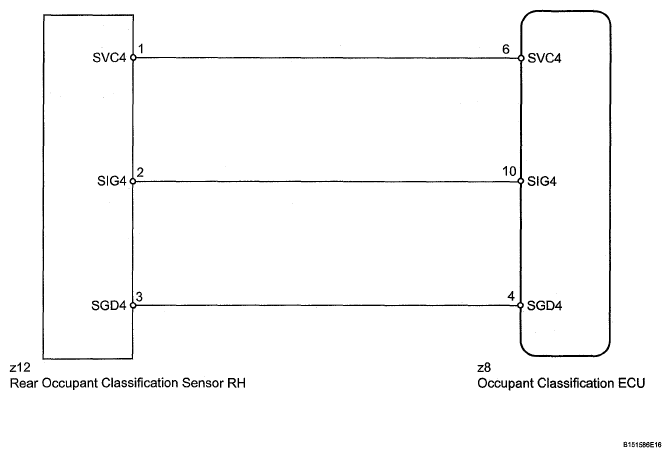

Fig 1: Rear Occupant Classification Sensor RH And ECU - Wiring Diagram
G05402060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
