PTC Heater Assembly: Components

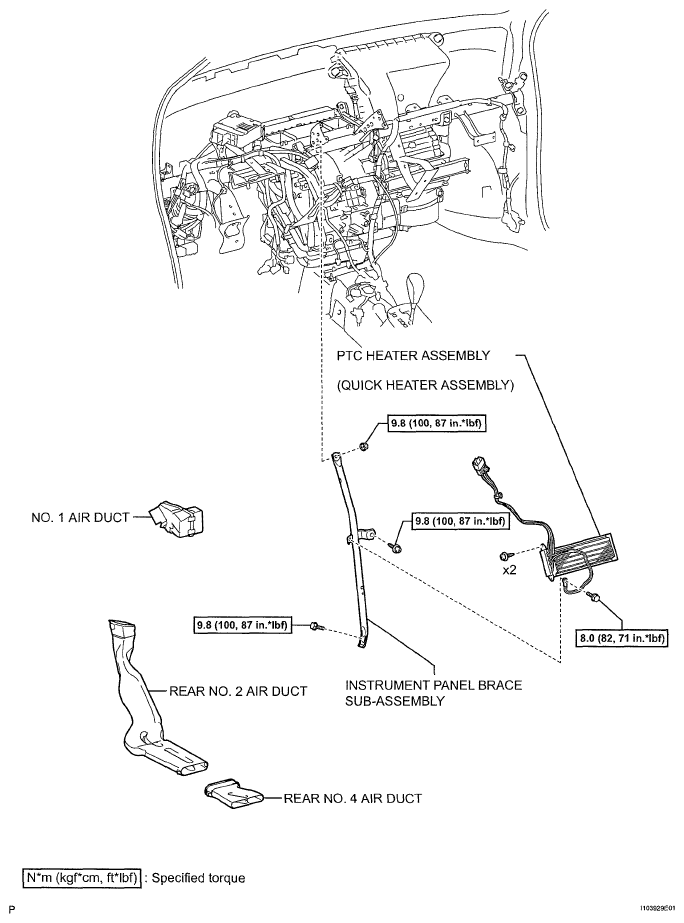

Fig 1: PTC Heater Assembly Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

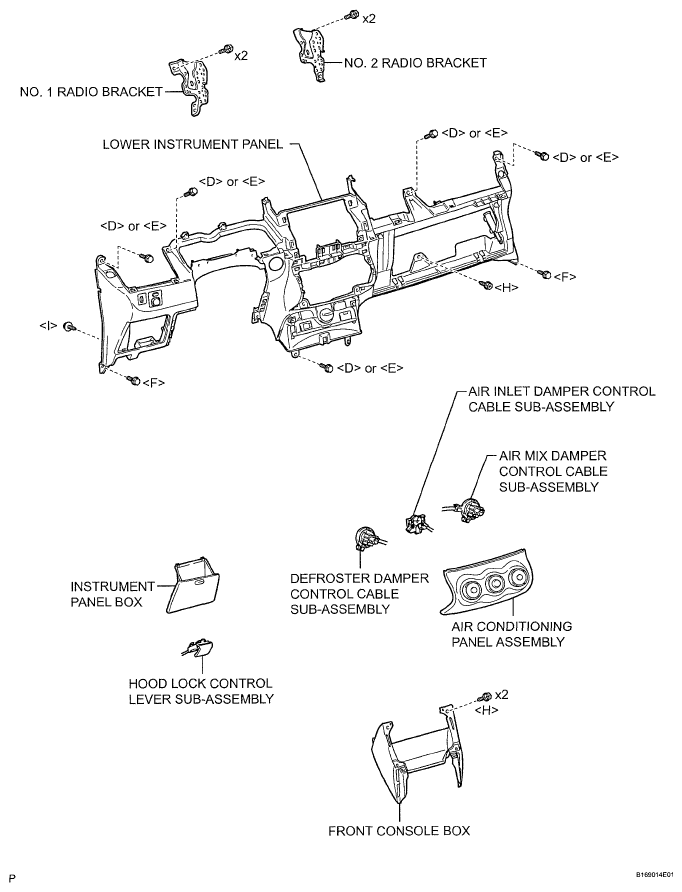

Fig 2: Identifying PTC Heater Assembly Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

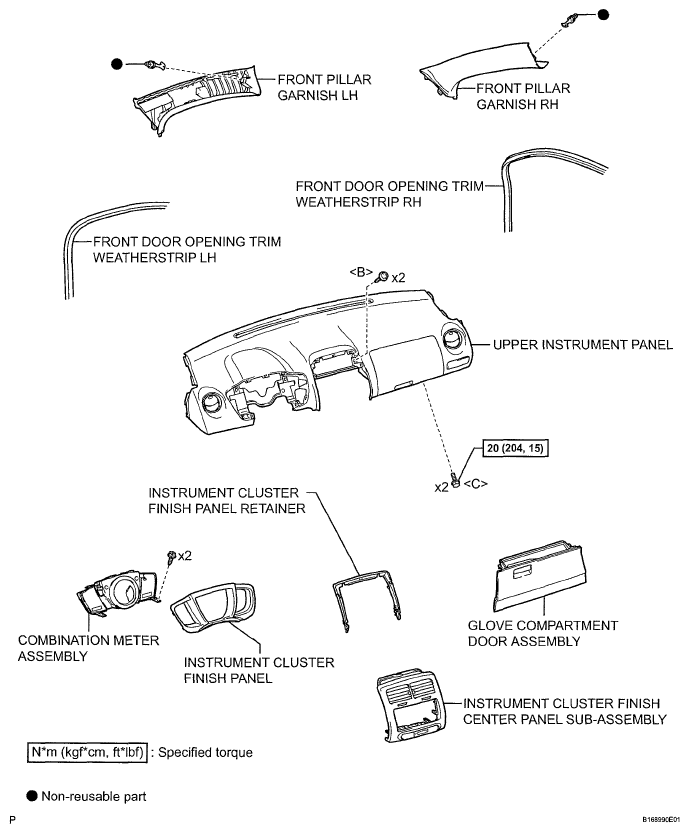

Fig 3: Identifying PTC Heater Assembly Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

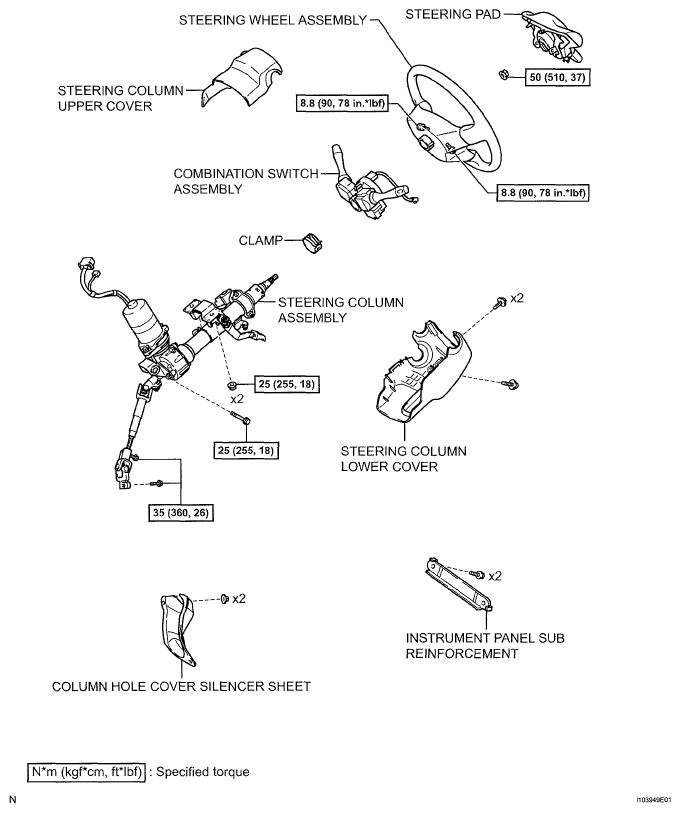

Fig 4: Identifying PTC Heater Assembly Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

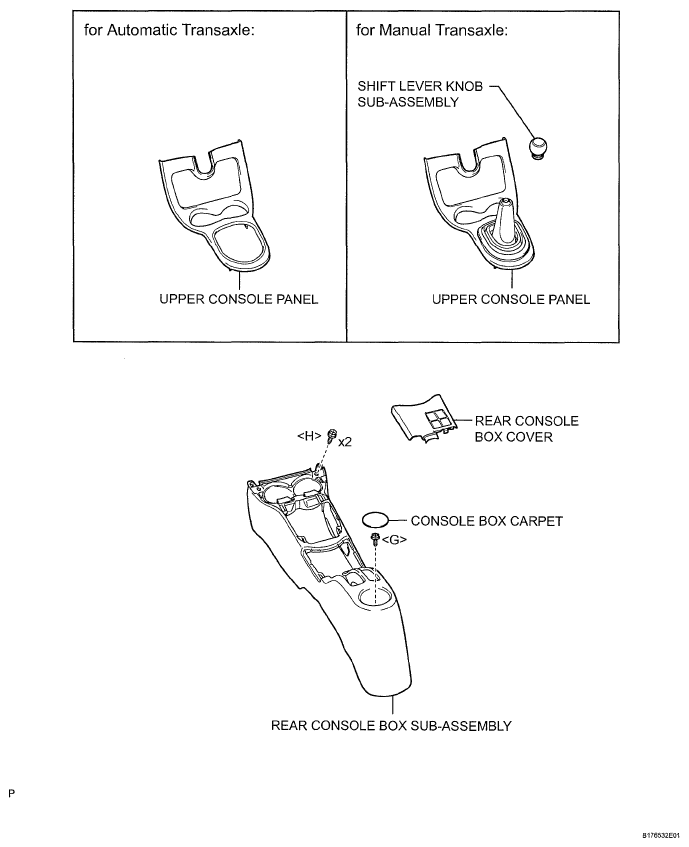

Fig 5: PTC Heater Assembly Replacement Components With Torque Specifications (5 Of 7)

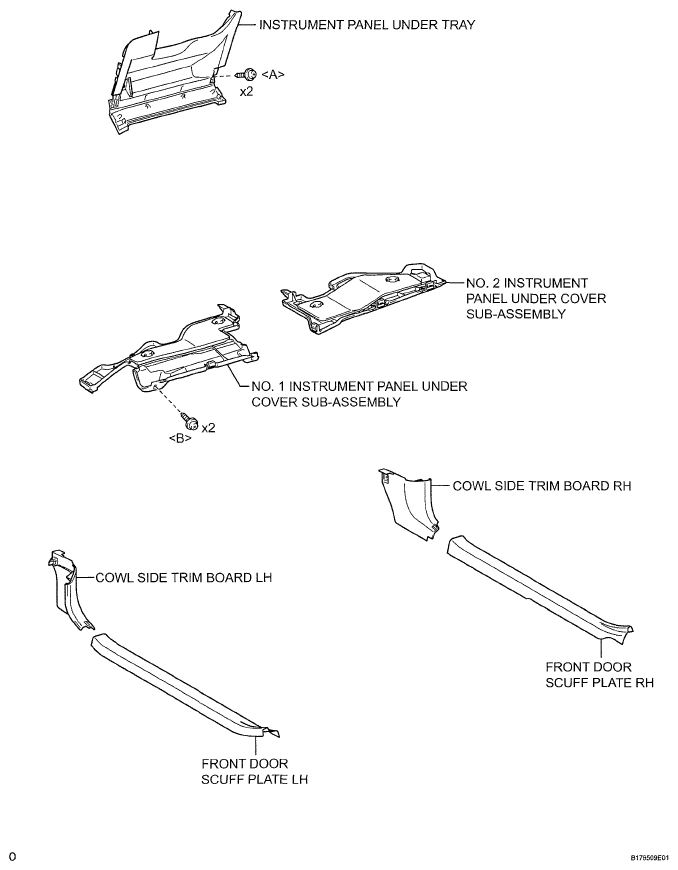

Fig 6: PTC Heater Assembly Replacement Components With Torque Specifications (6 Of 7)

Fig 7: PTC Heater Assembly Replacement Components With Torque Specifications (7 Of 7)
