COMPRESSOR (for 2ZR-FE): Components

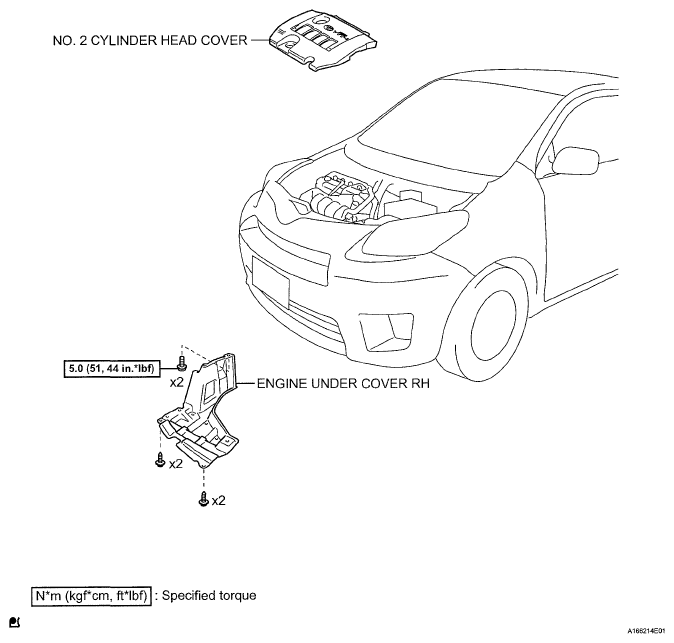

Fig 1: Compressor Replacement Components With Torque Specifications (1 Of 3)
G05401792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

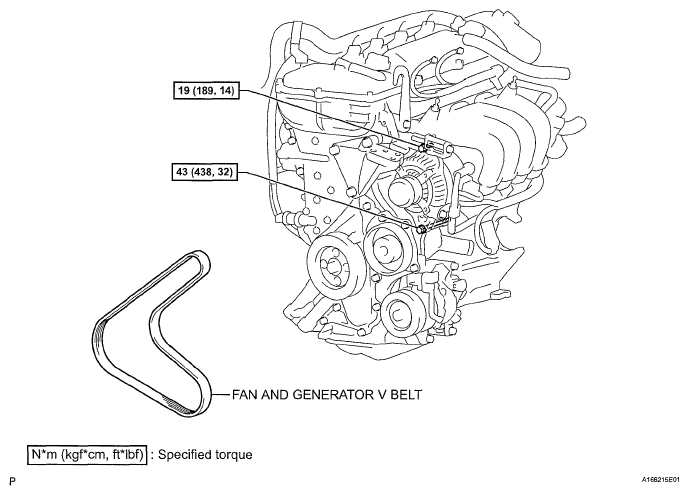

Fig 2: Compressor Replacement Components With Torque Specifications (2 Of 3)
G05401793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

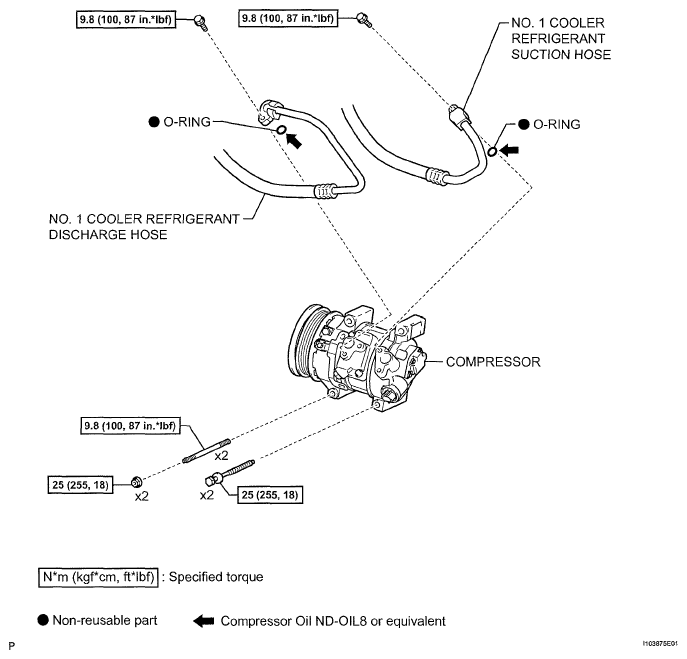

Fig 3: Compressor Replacement Components With Torque Specifications (3 Of 3)
G05401794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
