Blower Unit: Components

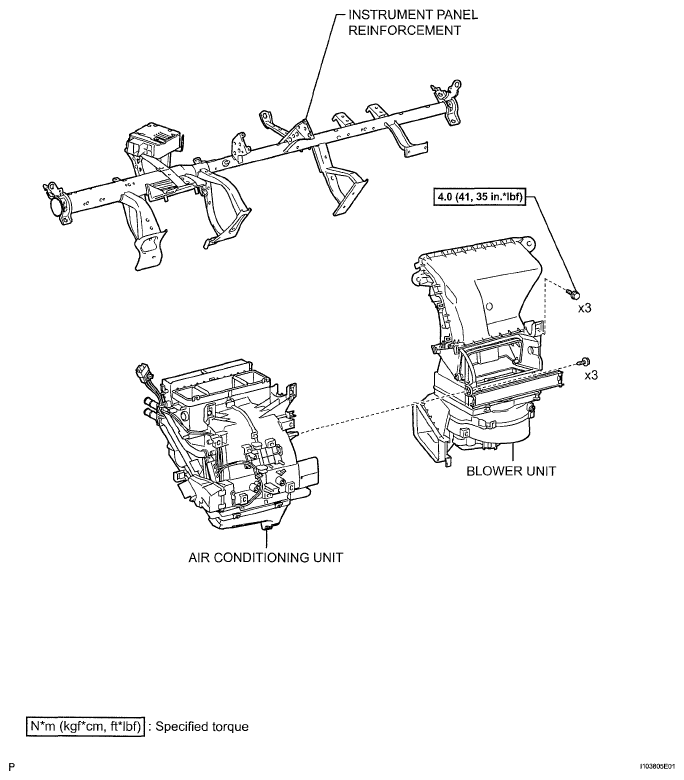

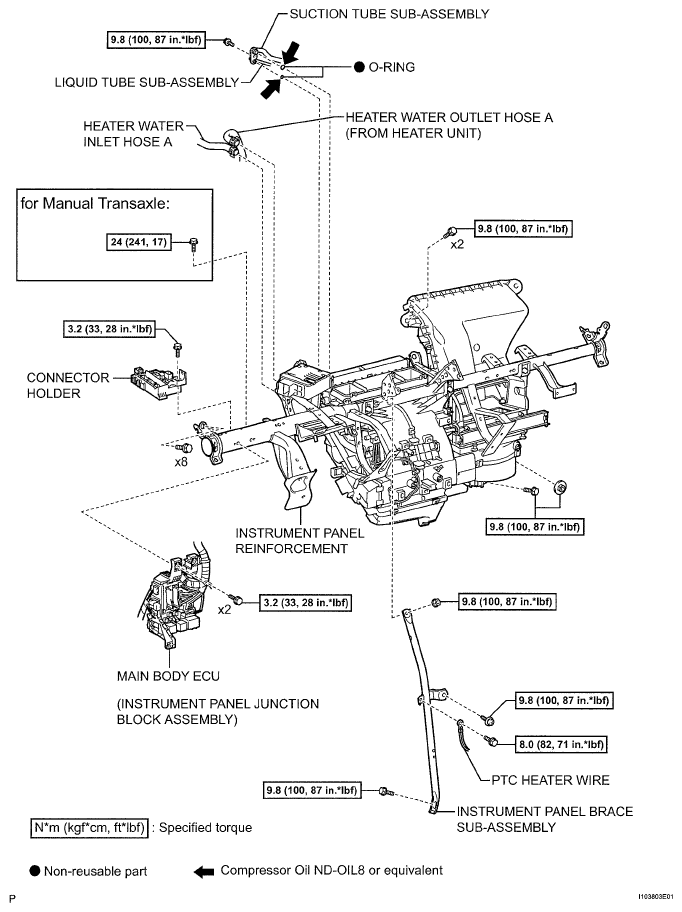

Fig 1: Blower Unit Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

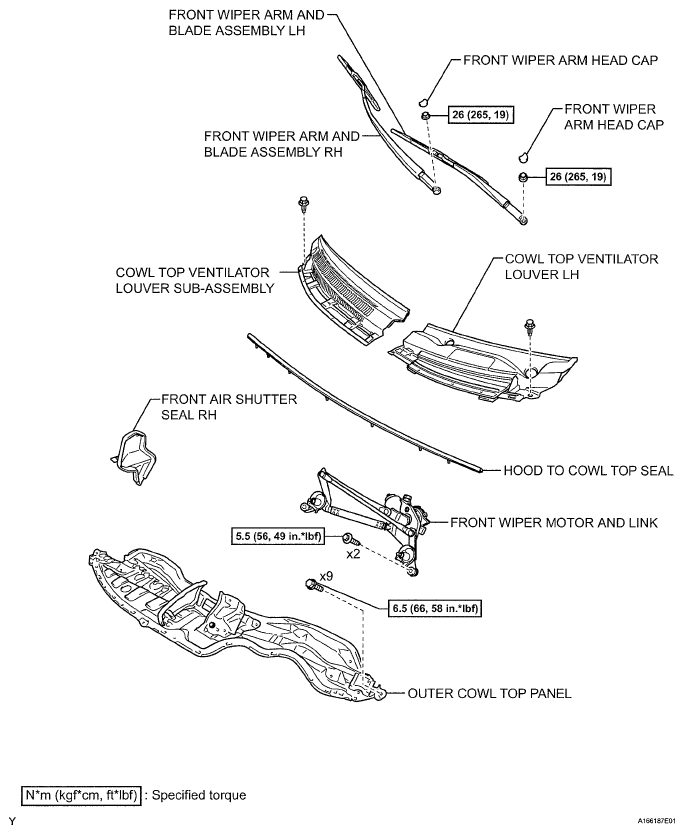

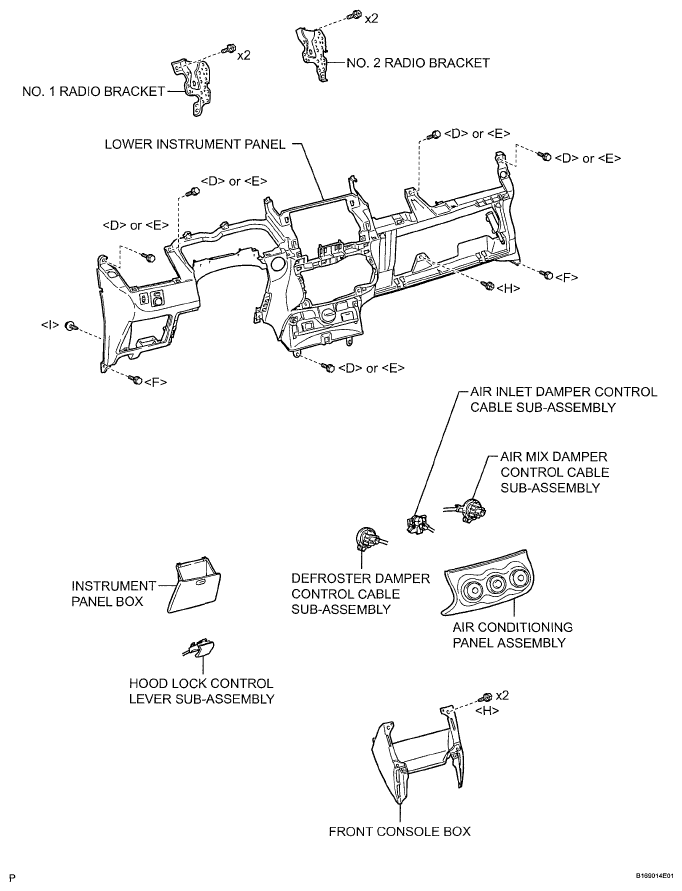

Fig 2: Blower Unit Components With Torque Specification (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

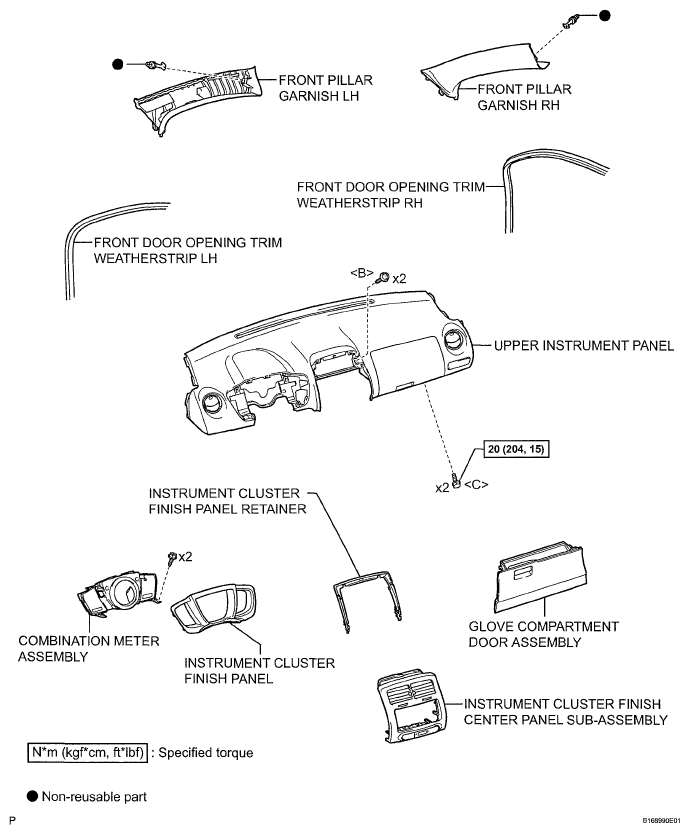

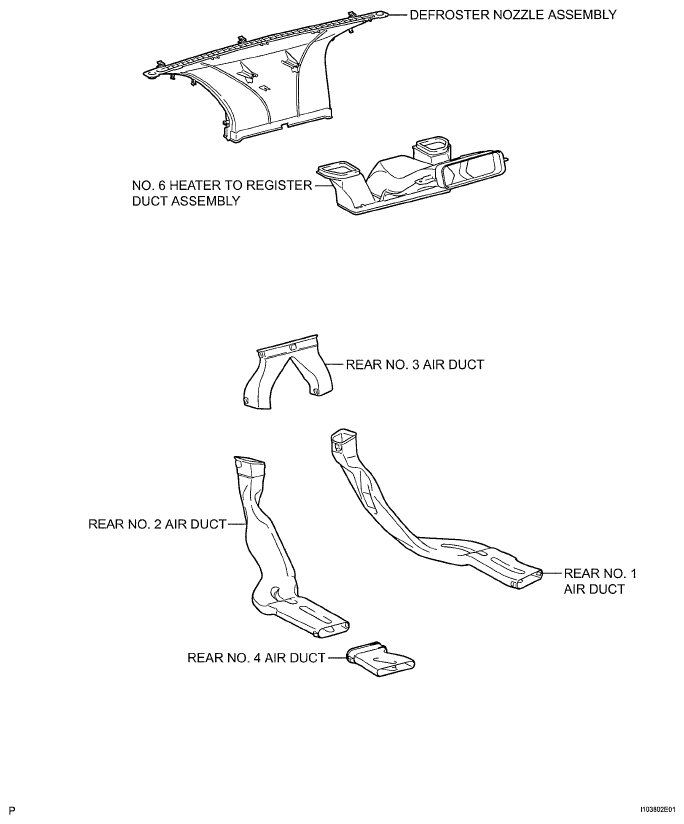

Fig 3: Identifying Blower Unit Components (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

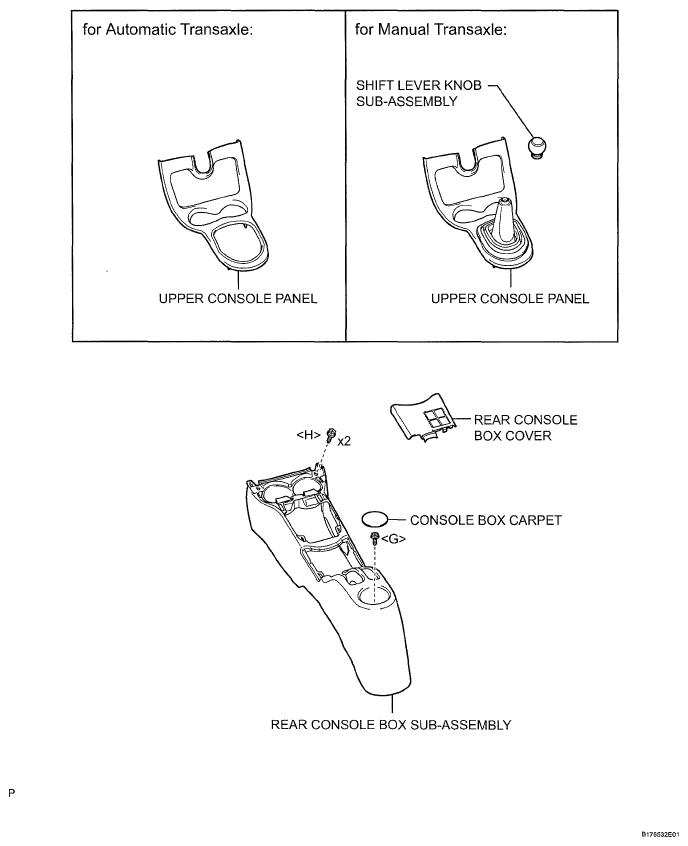

Fig 4: Identifying Blower Unit Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

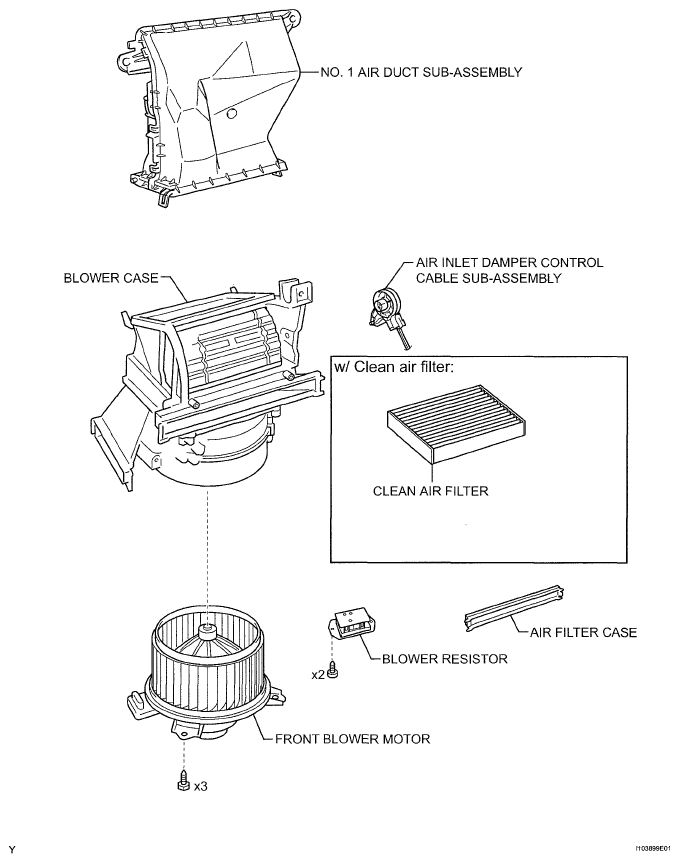

Fig 5: Identifying Blower Unit Components (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

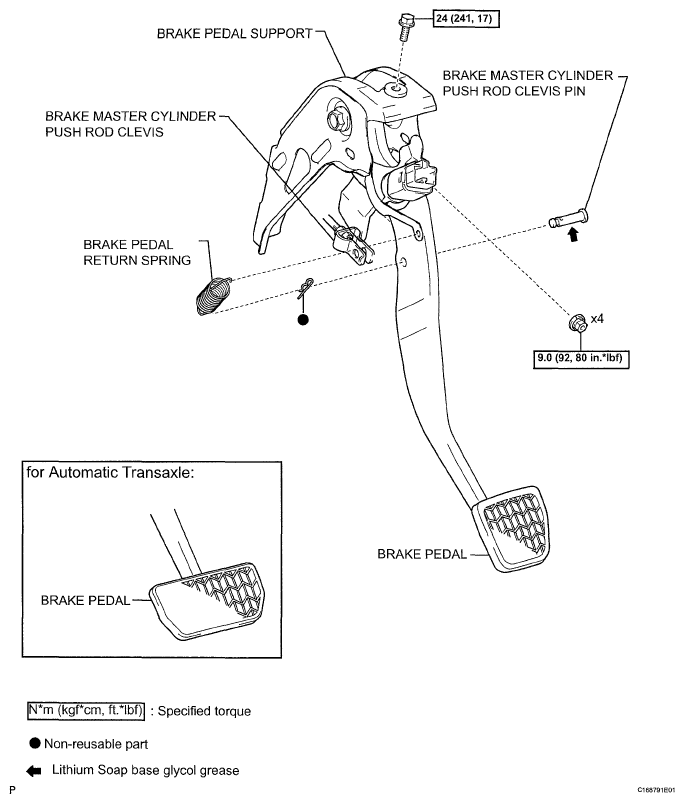

Fig 6: Blower Unit Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

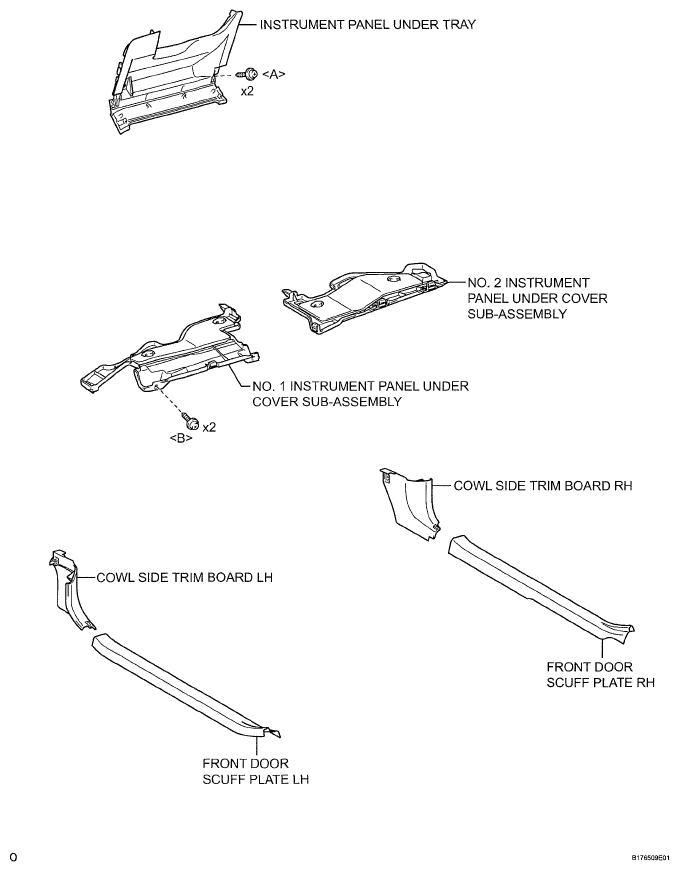

Fig 7: Blower Unit Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

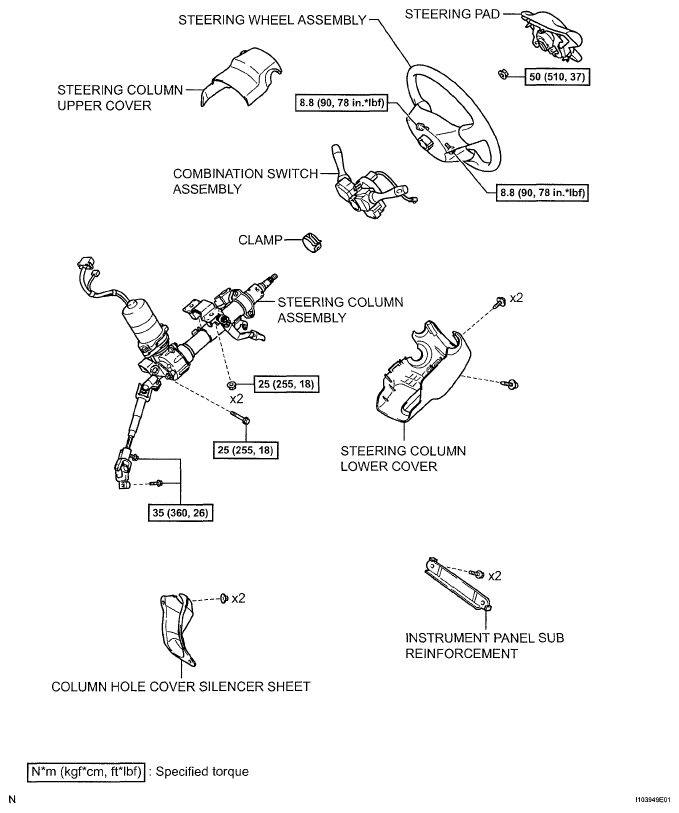

Fig 8: Identifying Blower Unit Components (8 Of 11)

Fig 9: Blower Unit Components With Torque Specifications (9 Of 11)

Fig 10: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (10 Of 11)

Fig 11: Identifying Blower Unit Components (11 Of 11)
