Air Conditioning Unit: Components

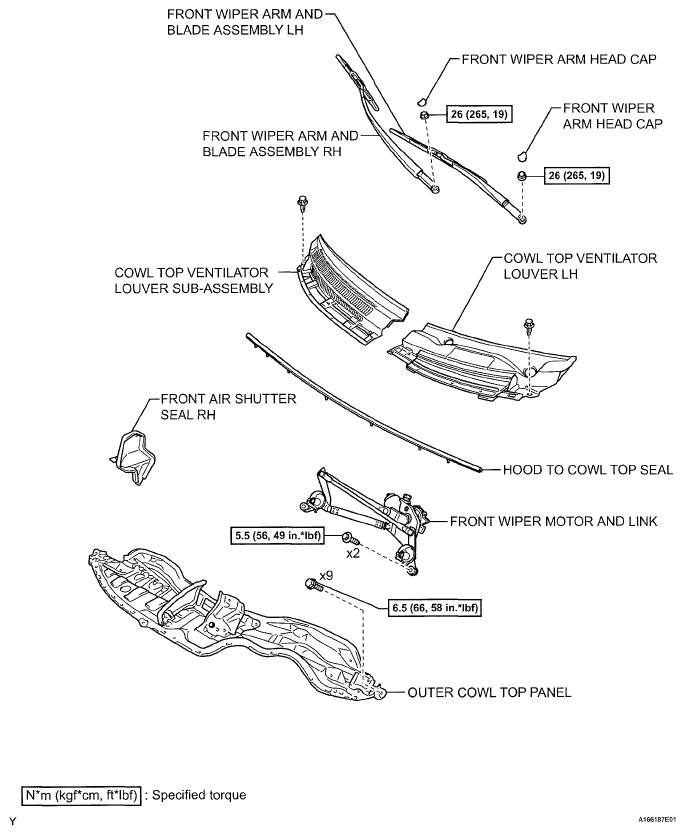

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

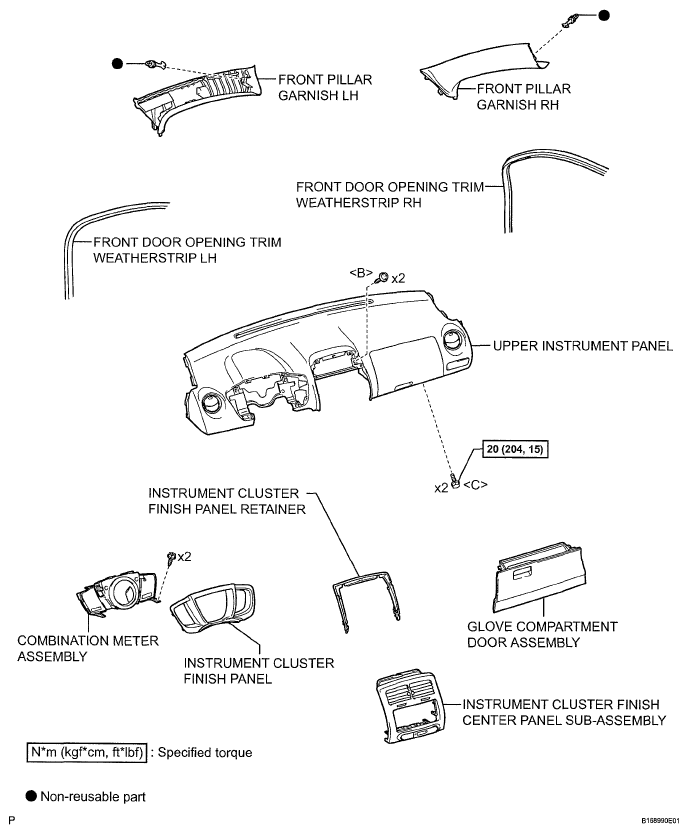

Fig 2: Air Conditioning Unit Replacement Components With Torque Specification (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

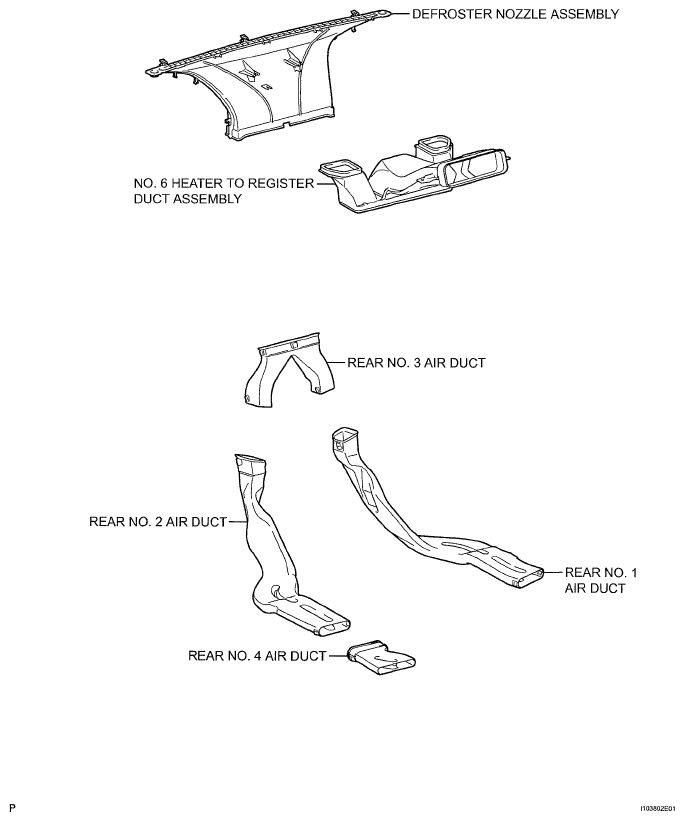

Fig 3: Identifying Air Conditioning Unit Components (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

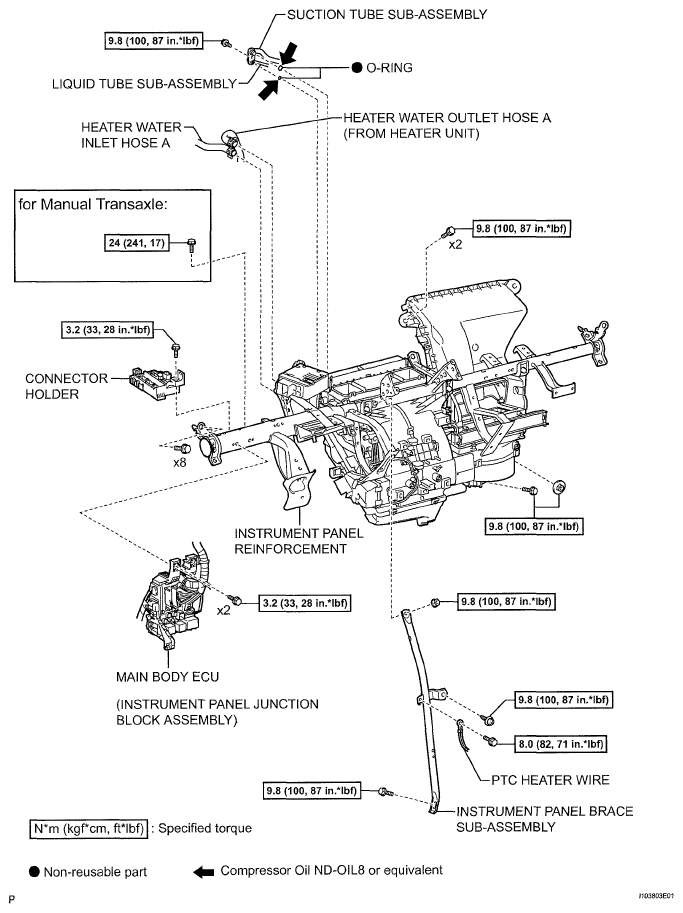

Fig 4: Identifying Air Conditioning Unit Components (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Air Conditioning Unit Components (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

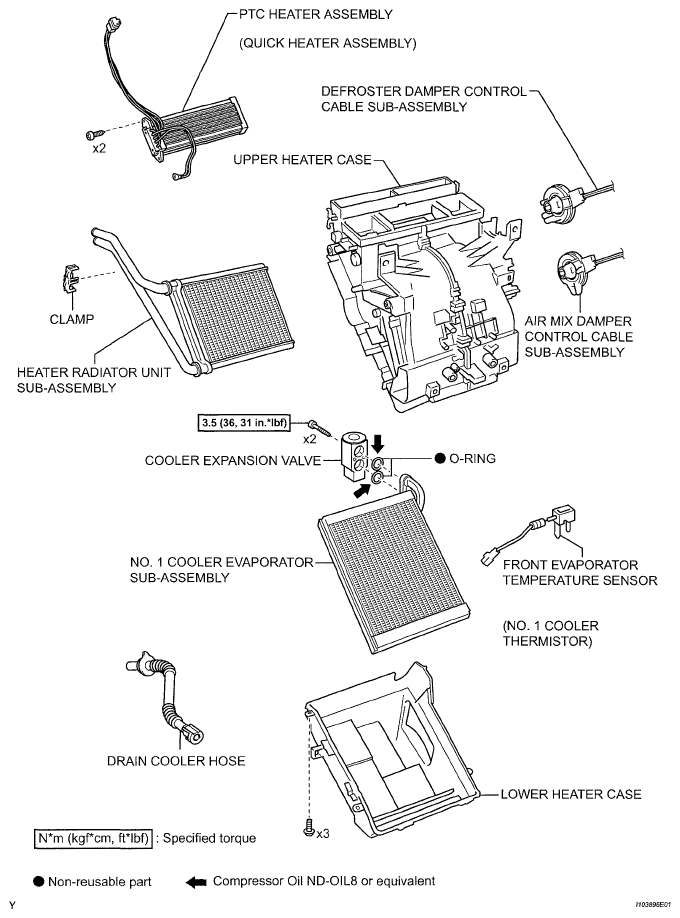

Fig 6: Air Conditioning Unit Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

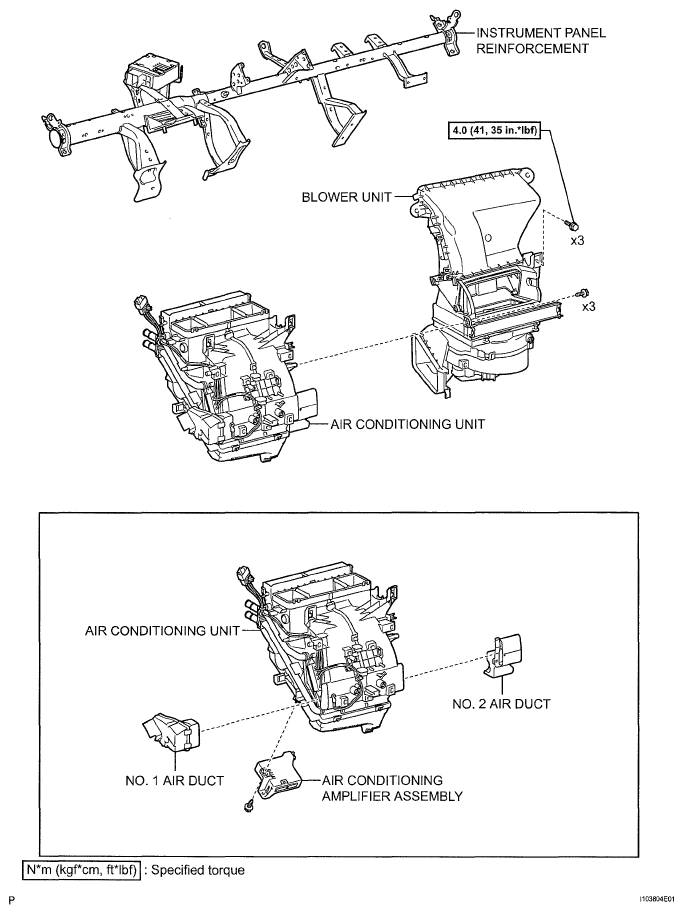

Fig 8: Identifying Air Conditioning Unit Components (8 Of 11)

Fig 9: Front Evaporator Temperature Sensor Replacement Components With Torque Specifications (9 Of 11)

Fig 10: Air Conditioning Unit Replacement Components With Torque Specification (10 Of 11)

Fig 11: Air Conditioning Unit Replacement Components With Torque Specification (11 Of 11)
