Inspection Procedure

1. Disconnect the G8 air conditioning amplifier connector.
2. Disconnect the C9 generator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester connection	Condition	Specified condition
   G8-24 (ALT) - C9-3 (M)	Always	Below 1 Ω
   GG8-24 (ALT) - Body ground	Always	10 kΩ or higher

4. Reconnect the generator connector.
5. Disconnect the air conditioning amplifier connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

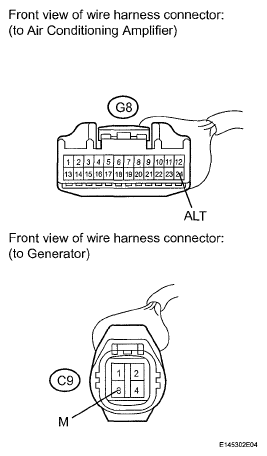

Fig 1: Identifying Generator And Air Conditioning Amplifier Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Inspect the generator (See INSPECTION for ON-VEHICLE INSPECTION, INSPECTION for INSPECTION).

NG: REPLACE GENERATOR  (See REMOVAL )

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )
