Air Conditioning Panel Assembly: Components

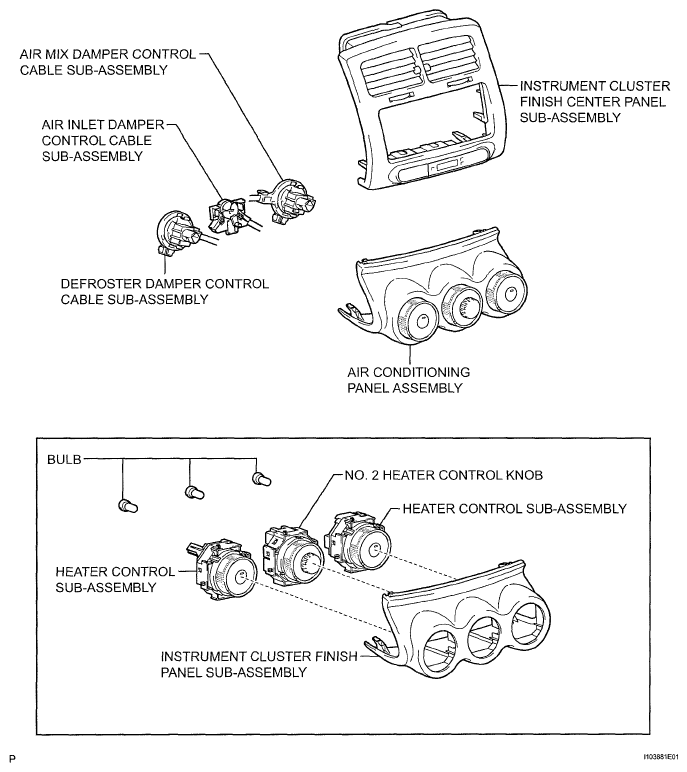

Fig 1: Identifying Air Conditioning Panel Assembly Components

G05401851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
