Fuel System
>>
Parts Location
Parts Location

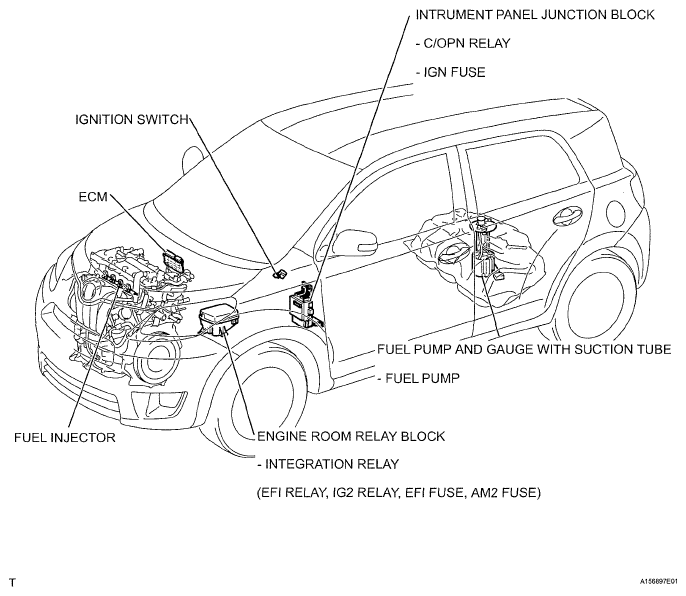

Fig 1: Identifying Fuel System Part Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
