Ignition Switch: Removal

  1. REMOVE STEERING COLUMN COVER
    1. Turn the steering wheel to the right and remove the screw indicated in the illustration.
    2. Turn the steering wheel to the left and remove the screw indicated in the illustration.
    3. Remove the screw indicated in the illustration and remove the steering column cover.

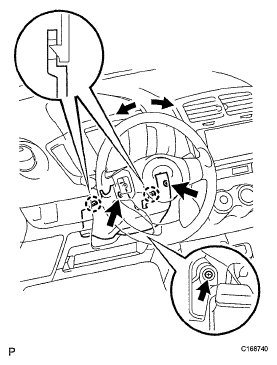

      Fig 1: Locating Steering Wheel Screw
      G05399826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE IGNITION SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the ignition switch assembly.
      Fig 2: Locating Ignition Switch Assembly And Claws
      G05399827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
