Cooling Fan Motor: Components

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 2)
G05399659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)
G05399660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

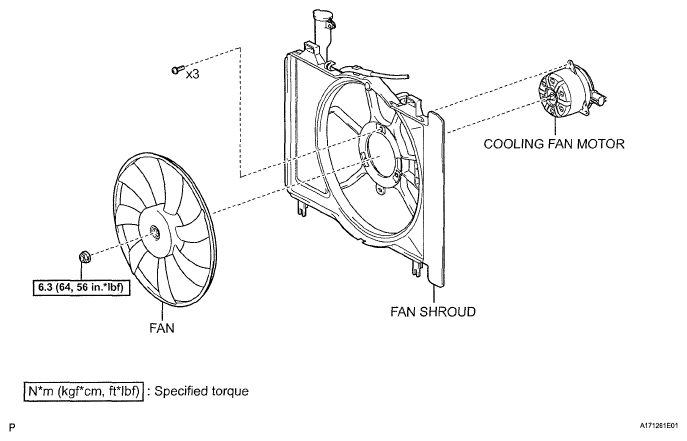

Fig 3: Cooling Fan Motor Replacement Components With Torque Specifications (3 Of 3)
G05399661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
