Meter / Gauge System
>>
System Diagram
System Diagram

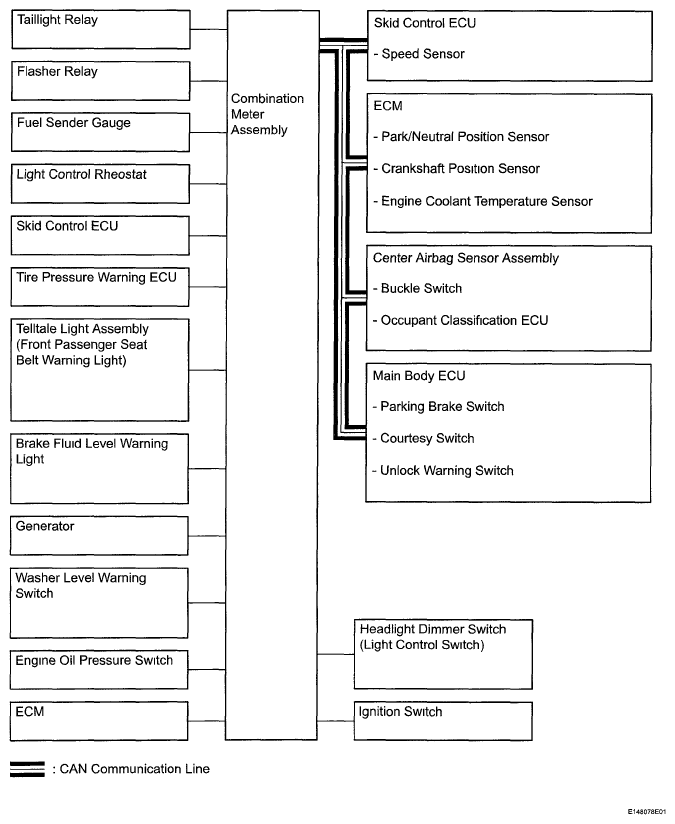

Fig 1: Meter / Gauge System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
