ABS (w/o VSC): Notes

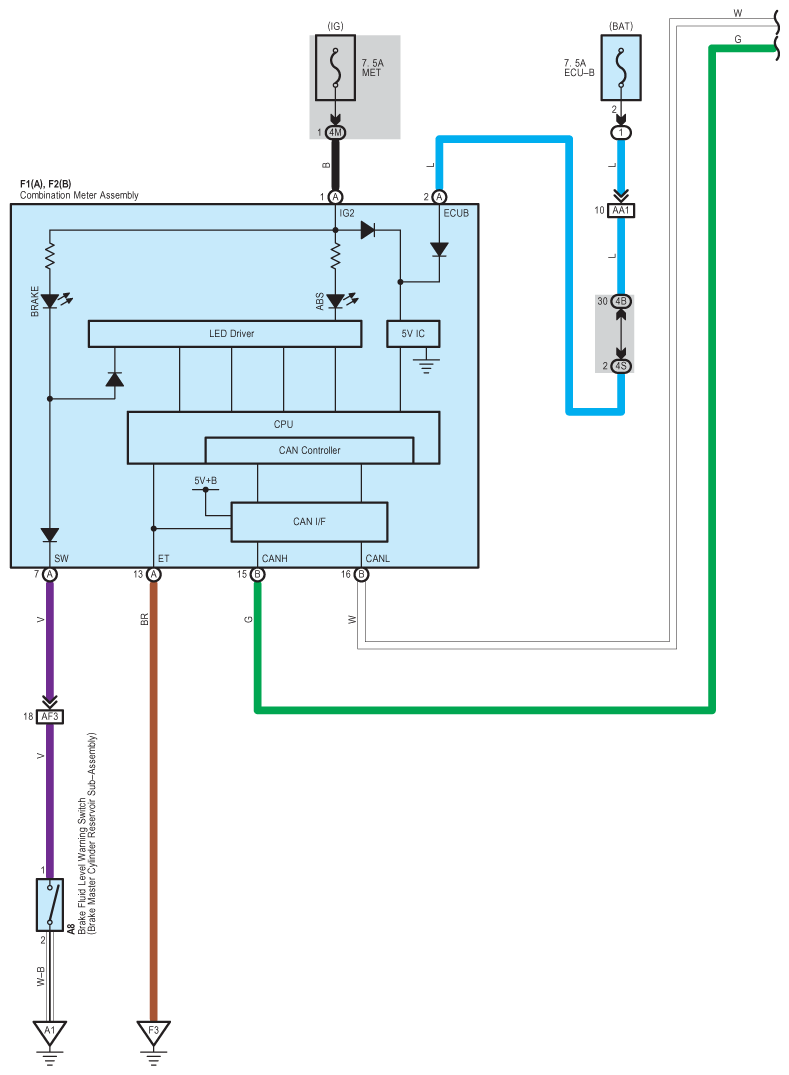

Fig 1: ABS (W/O VSC) - Circuit Diagram (1 Of 4)
G07618379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

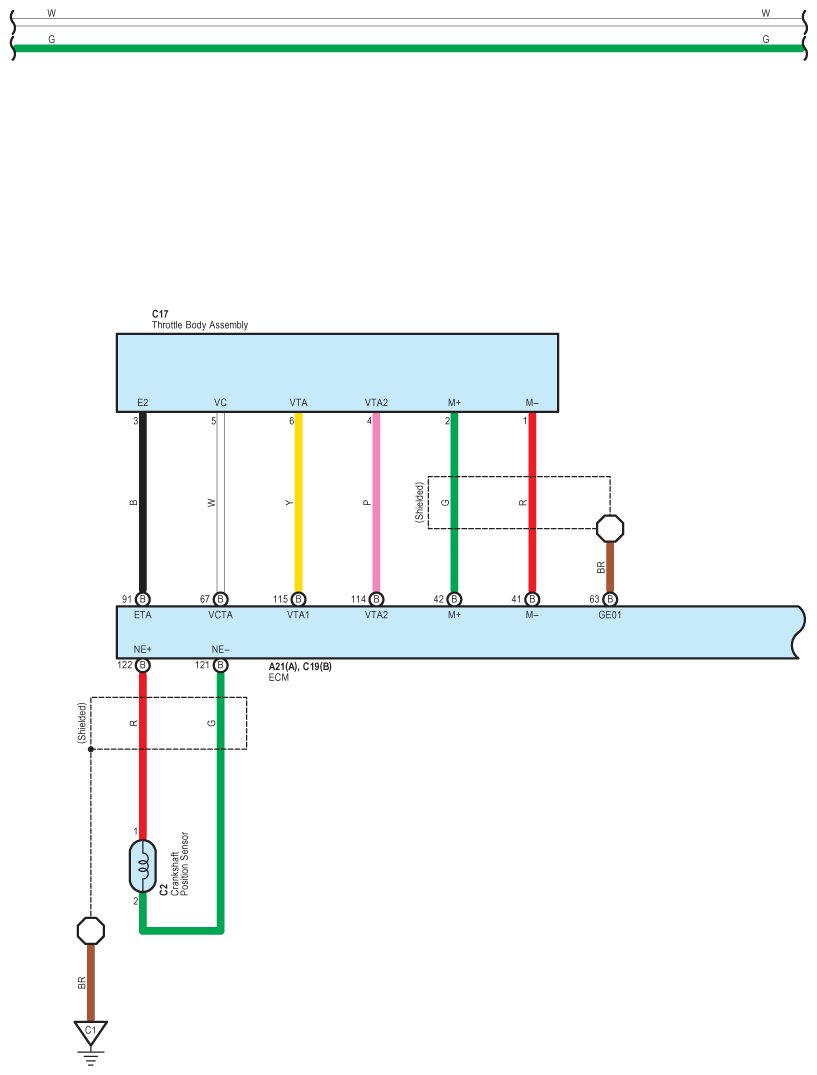

Fig 2: ABS (W/O VSC) - Circuit Diagram (2 Of 4)
G07618380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

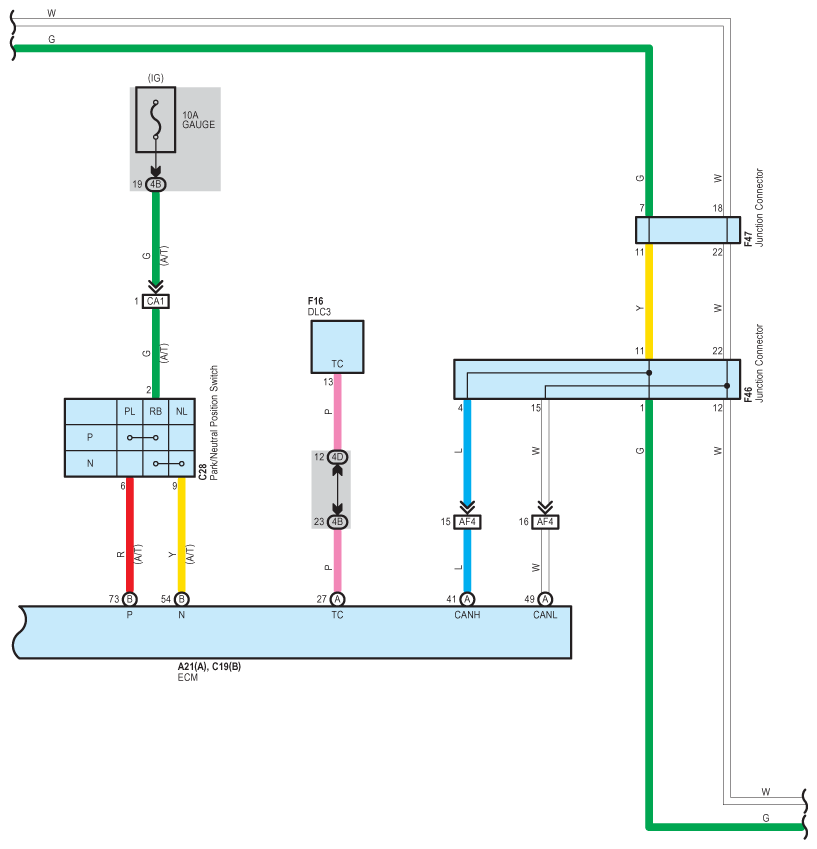

Fig 3: ABS (W/O VSC) - Circuit Diagram (3 Of 4)
G07618381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

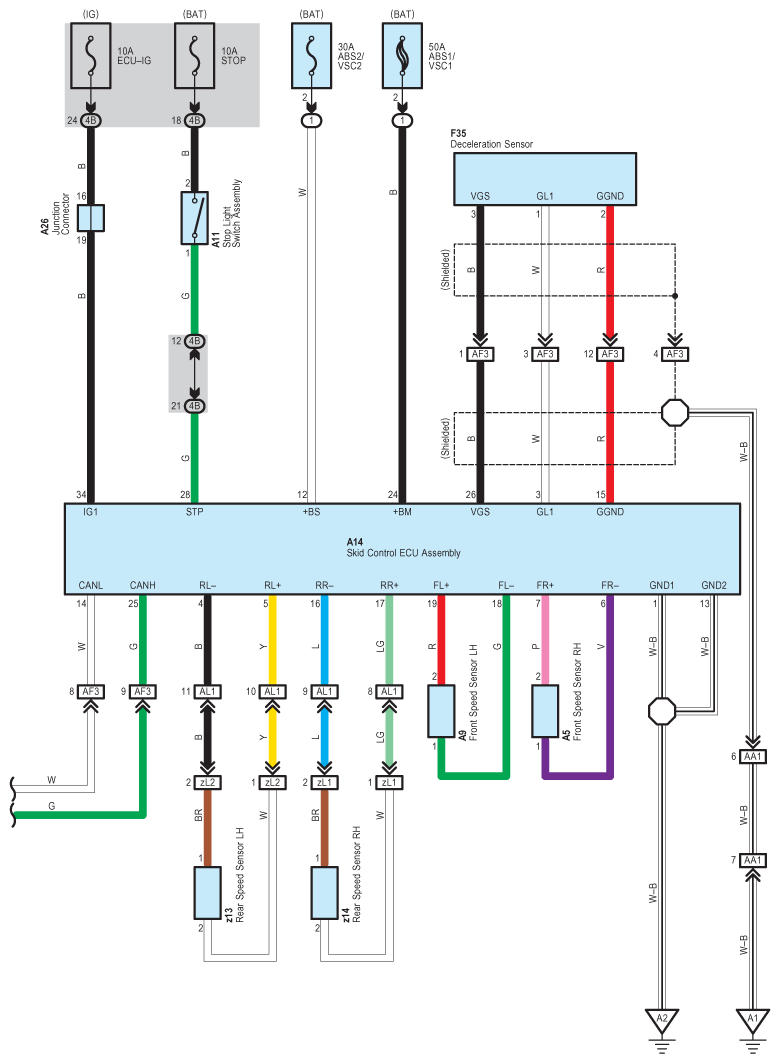

Fig 4: ABS (W/O VSC) - Circuit Diagram (4 Of 4)
G07618382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
