Parking Brake Cable: Components

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specification (1 Of 3)
G05401446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Parking Brake Cable Replacement Components With Torque Specification (2 Of 3)
G05401455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

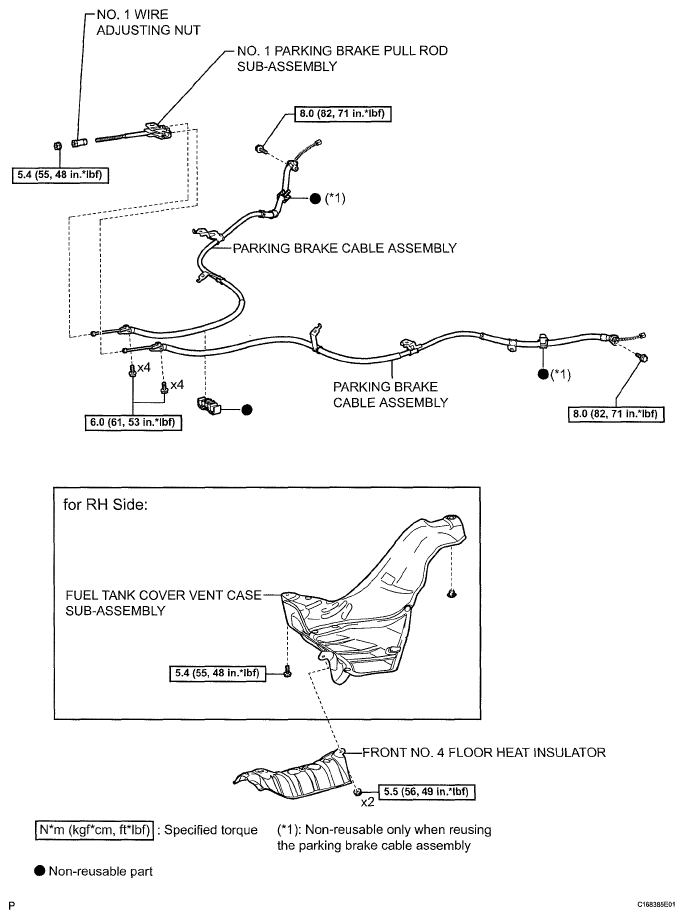

Fig 3: Identifying Parking Brake Cable Replacement Components With Torque Specification (3 Of 3)
G05401456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
